| X | 144.09" | 3,659.9 mm |
| Y | 20.08" | 510.03 mm |
| Z | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 120,000 RPM | 120,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 20" | 508 mm |
| Table-L | 154" | 3,911.6 mm |
| # Axis | 3 | 3 |

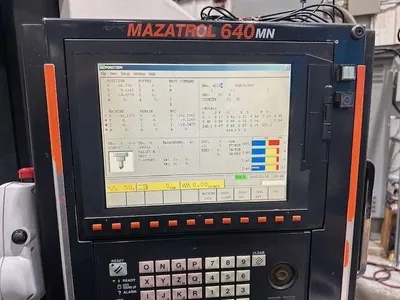

| Control | CNC | CNC |
| Weight | 30000 | 30000 |
Specifications (subject to buyer verification):
X-axis travel: ~144″ (~3,650 mm)
Y-axis travel: ~20″ (~508 mm)
Z-axis travel: ~20″ (~508 mm)

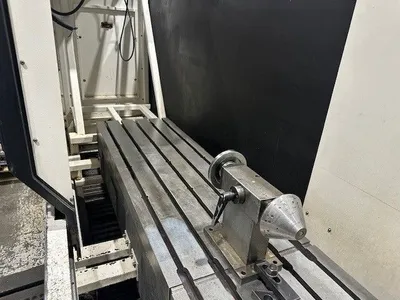

Table size: ~154″ × 20″ (~3,920 × 508 mm)

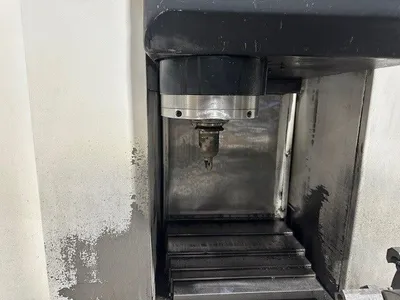

Max workpiece load on table: often ~4,600 lbs / ~2,090 kgSpindle taper: CAT-40 (ISO 40)
Max speed: ~10,000 rpm (standard) — some units may have 12,000 rpm options in later variants
Spindle motor: ~20 hp (~15 kW) with high torque (~70 ft-lbs / ~95 Nm)
Performance & Feed
Rapid traverse: X/Y/Z typically ~1181 IPM (30 m/min) in Y and Z and ~630 IPM in X
Axes: 3-axis standard (X/Y/Z)
Machine weight: Varies by configuration, but often ~25,000-30,000 lbs
Equipped with (subject to buyer verification):

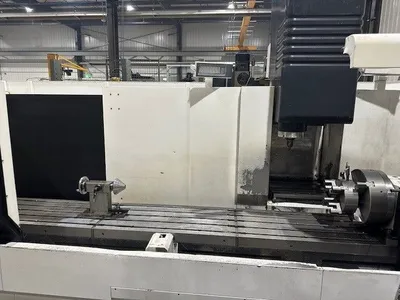

Traveling column: Spindle and column move; table fixed — allows very long X travel with stable workpiece support

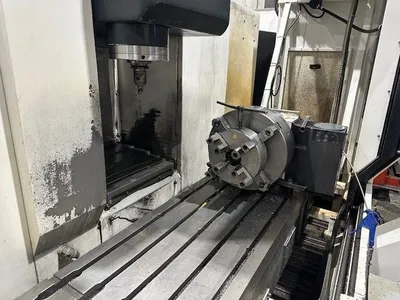

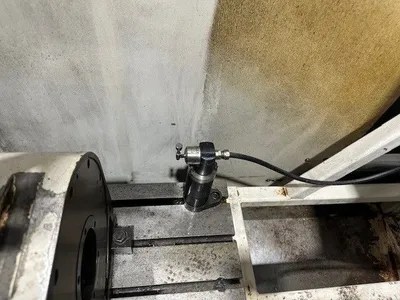

4th axis Rotary Table & Tool Probe Part Probe
Thru-spindle coolant:
Tooling & Magazine
Tool magazine capacity: 24 tools standard
