NEW 2026 ISITAN 4RHMS 650X80
Overview
Description

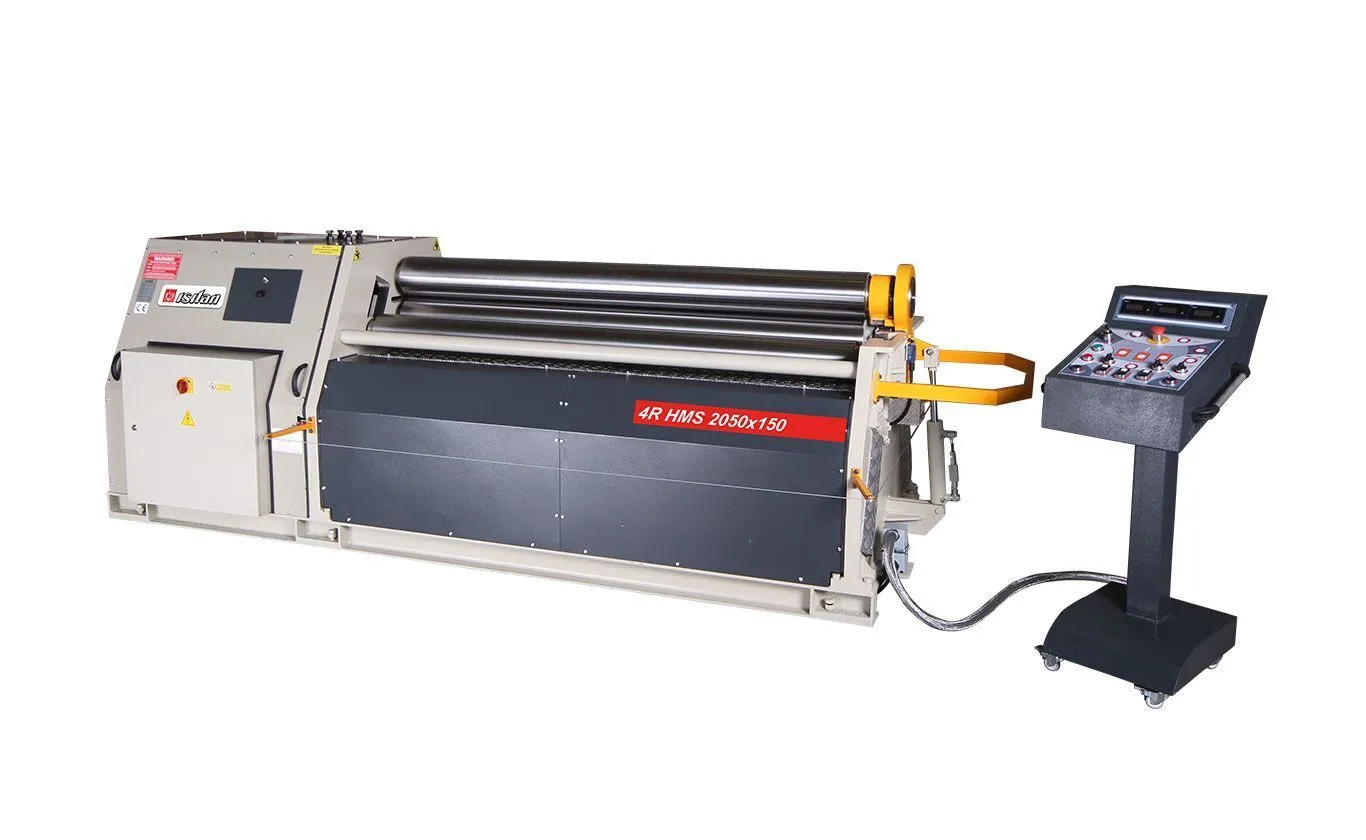

2026 ISITAN 4 ROLL HYDRAULIC BENDING ROLL, Model 4R HMS 1550 X 180, 61" Bend Length
The ISITAN 4R HMS hydraulic bending roll model is designed for bending light and medium sheet metal, aluminum, or stainless materials. Key specifications include:
Motor Power: 7.5 kW
Bending Capacity: Up to 2700 mm (10.6 inches) in diameter
Rolls: 4 rolls with hydraulically movable up and down
Construction: Welded steel body with SAE 1050 forged steel shafts
Safety Norms: Conforms to EU safety norms and has CE mark
For detailed specifications, you can refer to the technical tables available in the sources(https://www.isitan.com/4r-hms-4-rolls-plate-bending-machines-with-automatic-feeder-16-language-translation.html) and(https://www.isitan.com/4r-hms-4-rolls-plate-bending-machines-with-automatic-feeder-16-language-translation.html).
Specifications
| Length of Rolls | 25.59" | 0.6 m |
|---|---|---|
| Max Thickness | 3.5 mm | 0.1378" |
| Max Thickness (gauge) | 10 gauge | 10 gauge |
| # Rolls | 4 | 4 |
| Hyd/Mech | Hyd | Hyd |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 4 hp | 3 kW |
| Roll Diameter | 3.15" | 80.01 mm |
| Dimensions | 131.9"L x 53.2"W x 50.8"H | 131.9"L x 53.2"W x 50.8"H |
| Weight | 6,394 lbs | 6,394 lbs |
4R HMS 1550x180 – Technical Specifications (Metric + Inch)
Useful Length 1550 mm (61.02 in)
Prebending Capacity (x1.5 / x5) 5 / 7 mm (0.20 / 0.28 in)
Bending Capacity (x1.5 / x5) 7 / 9 mm (0.28 / 0.35 in)
Top & Bottom Roll Diameter Ø 180 mm (Ø 7.09 in)
Lateral Roll Diameter Ø 150 mm (Ø 5.91 in)
Minimum Bending Diameter Ø 270 / 900 mm (Ø 10.63 / 35.43 in)
Motor Power 4.0 + 1.5 kW (5.36 + 2.01 HP)
Working Speed 5 m/min (16.40 ft/min)
Tank Capacity 40 lt (10.57 gal)
Machine Length 3350 mm (131.89 in)
Machine Width 1350 mm (53.15 in)
Machine Height 1290 mm (50.79 in)
Weight 2900 kgs (6,394 lbs)
Capacities are based on 24 kg/mm squared plates yielding strength
Equipped With
STANDARD FEATURES
• Very suitable for light and medium plates, aluminum or stainless steel
• Easy full circle crimping, radius can be done easily
• Pinch Roll and Lateral Rolls move with pyramid linear indirect movement by hydraulic
pistons
• Overload Protection
• Top roll powered by electrical motor with planetary gearbox
• Bottom roll powered with cardan joint system
• Three digital readouts for easy roll positioning
• Hydraulic Drop-End for easy removal of finished ferrule

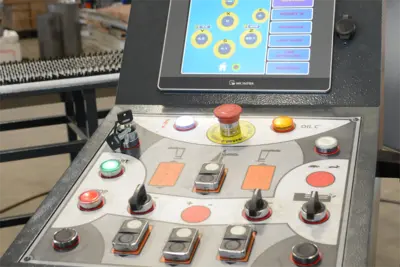

• Easy operation with mobile control panel
• Welded steel frames
• Induction hardened forged or rolled SAE 1050 (CK45) steel rolls

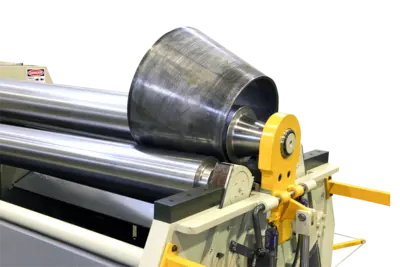

• Conical bending device
• Hydraulic balancing system
• Built according to EC Safety Directives – CE Mark
• Technical support with remote control via WiFi
• User manual included
Optional Accessories List Price Euro
---------------------------------------------------------------------------------
Mechanical Overhead Crane up from Ø80 - Ø100 Top Rolls $5,950 USD
Hydraulic Overhead Crane up from Ø130 Top Rolls up to Ø250 $6,500 USD
Hydraulic lateral side supports and feeders (1 pcs pn 1 side) $4,150 USD
2 Speed working system on electric motor $2,600 USD
Infinitively variable stepless speed control (hydraulic) $3,350 USD
Infinitively variable stepless speed control (electronic) $5,900 USD
Oil cooling system for models over Ø200 top rolls $3,550 USD
Optional hydromotor with 2 Speed control over Ø150 models $7,100 USD
4 AXIS NC Controller Panel 7.7" Touchscreen $13,600 USD
7 AXIS NC Controller Panel 10.4" Touchscreen $8,900 USD
Mechanical Motorised plate ejector Price on request
Ground and polished rolls Price on request
Electronic balance system for precision jobs $7,100 USD
Double Piston on Bottom Roll for Large Gap Between Rolls $11,850 USD
