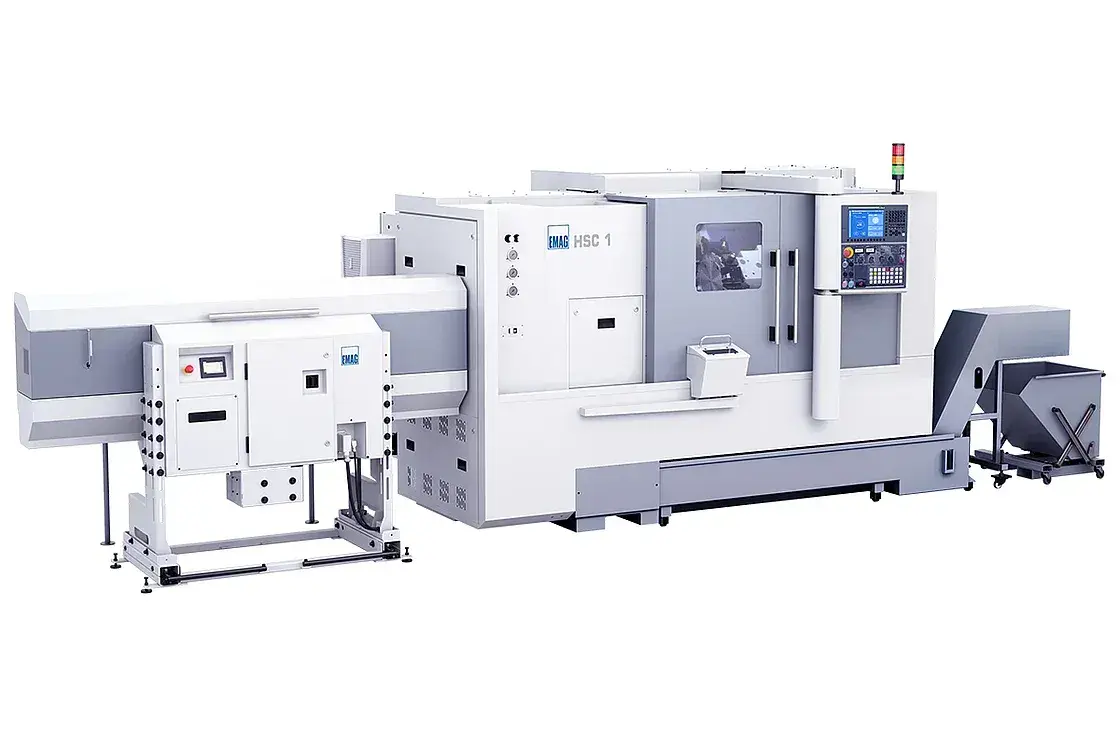

HSC 1 - CNC lathe for OP 10 / OP 20 production with maximum precision

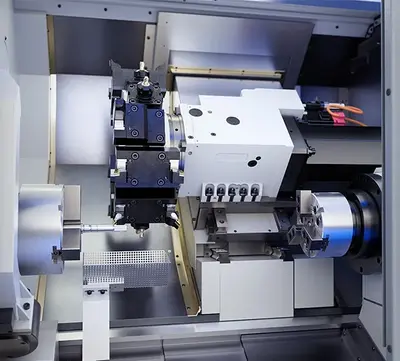

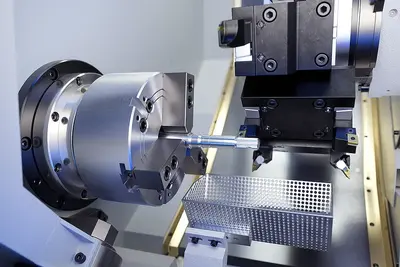

The HSC 1 is a compact, powerful CNC lathe for the economical machining of turned parts in two consecutive machining operations (OP 10 / OP 20). Equipped with main and counter spindles as well as a turret with driven tools, the machine enables turning, drilling and milling in a continuous production process - on a single machine. Automatic spindle transfer ensures high precision and efficient machining of both sides of the workpiece - no manual reclamping required.
Milling operations using driven tools

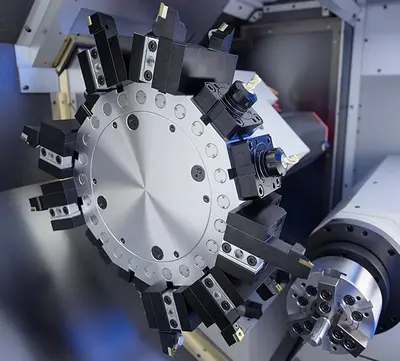

The turret with 12 stations (BMT-55) can be fully equipped with driven tools. These reach up to 5000 min-¹ and enable integrated milling operations, e.g. cross drilling, feather key grooves or thread milling - without the need for secondary machines.
Full axis configuration incl. Y-axis
In addition to the linear X, Y and Z axes, the HSC 1 features C axes on both spindles. The true Y-axis with ±50 mm travel significantly expands the machining spectrum: even off-center contours can be produced cost-effectively.
The heavy, inclined bed base frame made of quality cast iron ensures low-vibration machining and optimal chip removal. Linear guides and preloaded ball screws guarantee dynamic movements with high positioning accuracy.
