Stock Number: ET-5688
(1) used Moore Precision Motorized Spin Table

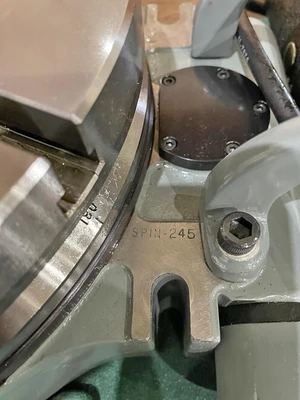

Serial number: SPIN-245
Moore’s Ultimate Precision Table
Moore Catalog Number: 3900-A
TIR Tolerances when new: 5 Millionths of an Inch Maximum Axial Deviation when new: 20 Millionths of an Inch

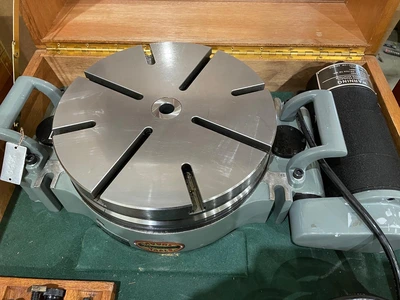

Table diameter: 10-7/8″
Table height, when horizontal: 5.0625″
8 Radial T-slots
Motorized DC Drive
Table speeds from 5 to 100 RPM
Clockwise and Counterclockwise Direction Can be used from horizontal to 90 degrees vertical if mounted on a sine plate
Dimensions: 20.75″ X 11″
Table Weight: 135#

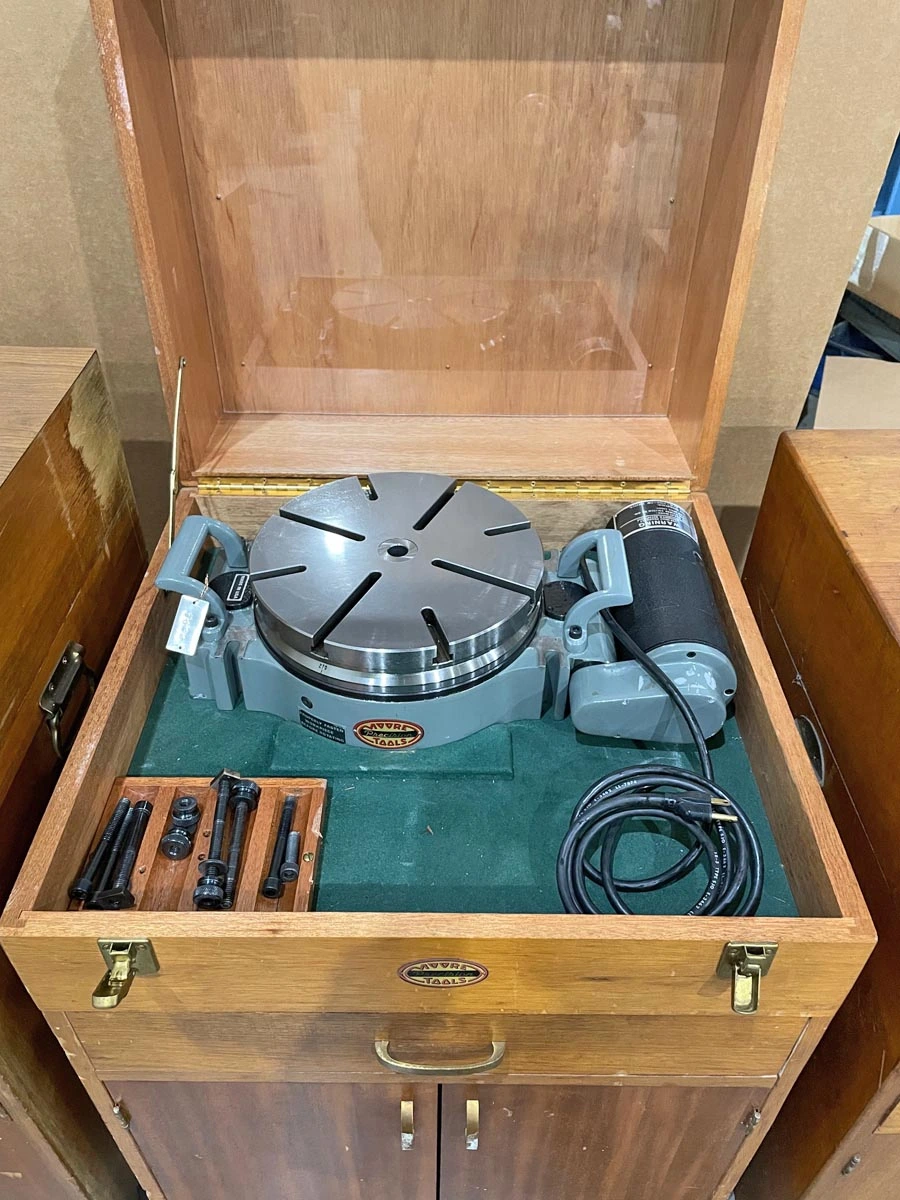

Equipped with:
Moore Rolling Storage Cabinet
Dimensions of Cabinet: 22″ Deep X 24″ Wide X 36″ High
Weight of Table with Storage Cabinet: 320#
Location: Wixom, MI
