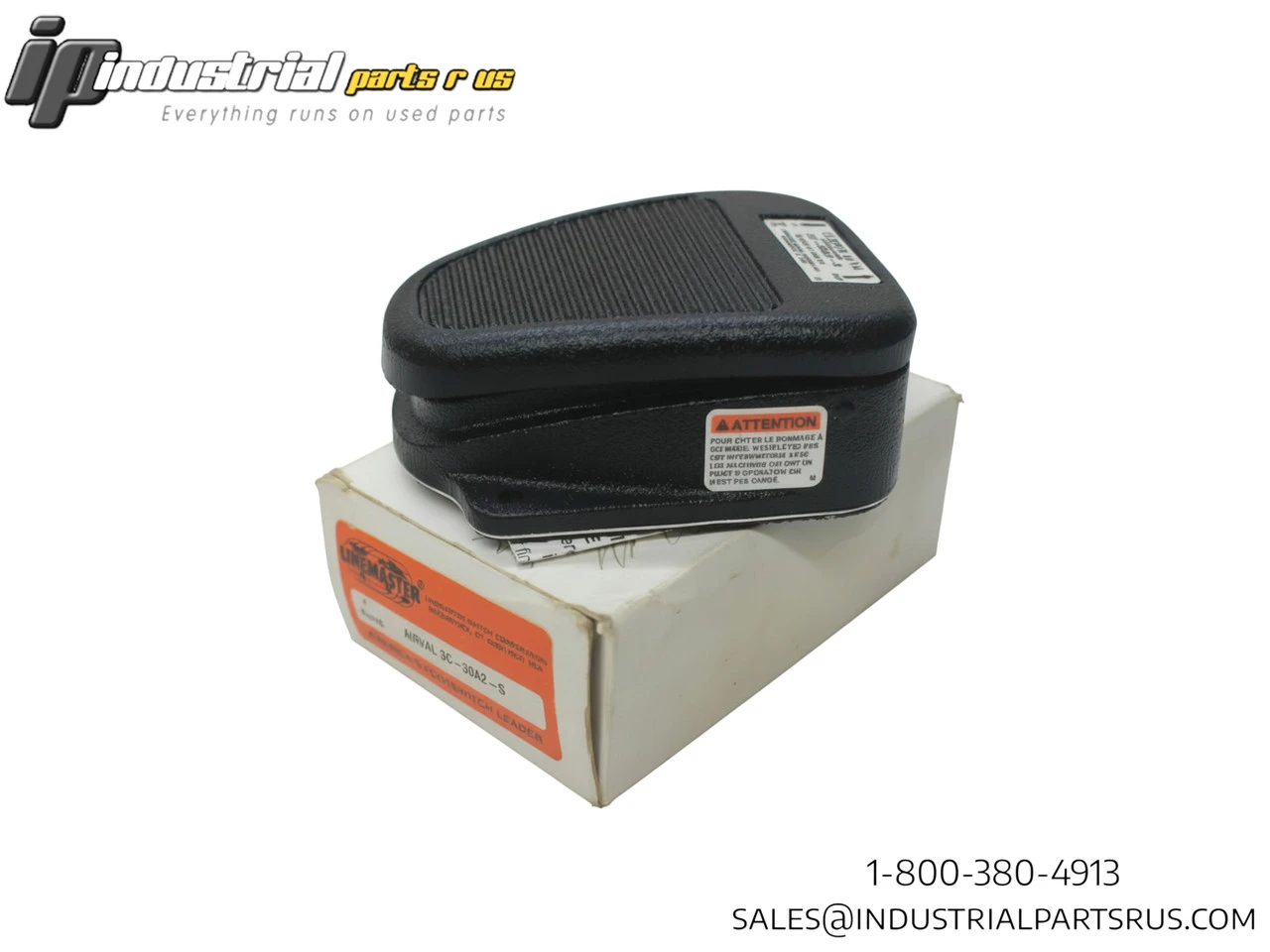

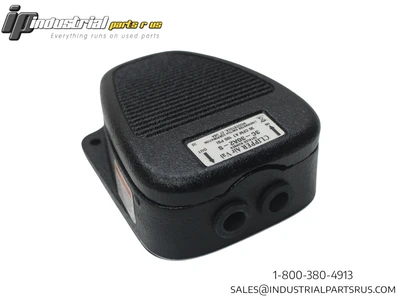

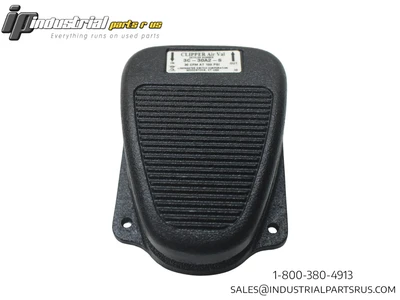

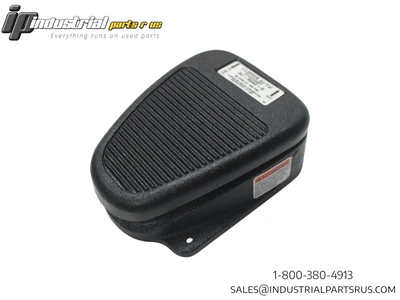

NEW LINE MASTER 3C-30A2-S

The Line master 3C-30A2-S is a heavy-duty pneumatic foot switch from the AirVal Clipper series, designed for industrial applications requiring reliable foot-operated air valve control. The LINEMASTER AirVal foot switches were designed for ease of use and long life. The 3C-30A2-S is a 3-way 1NO Foot Switch with rugged cast iron housing and air exhausts around plunger.
Specification
Value
Brand
Line master
Model/Part Number
3c-30a2-s
Manufacturer
Linemaster Switch Corporation
Series
Clipper
Type
Pneumatic AirVal Foot Switch
Control Function
3-Way Momentary
Air Flow
30 CFM at 100 PSI
Exhaust Flow
25 CFM at 100 PSI
Maximum Line Pressure
150 PSI
Operating Force
10 lb
Port Size
1/8-27 NPT (Input & Output)
Housing Material
Cast Iron, Black
Dimensions (W x L x H)
3.45 x 4.56 x 1.78 in (87.6 x 115.8 x 45.2 mm)
Operating Temperature
-18 to 55°C (0 to 131°F)
Unit Weight
4.75 lb
Mounting
Non-Skid Base, 2 Bolt Holes
Construction Style
Open, General Purpose
Valve Construction
Non-ferrous body, Stainless steel plunger, PTFE coated Buna-N O-rings
Replacement Interior Valve
3-30A2-SI
We warranty all items for 30 days from date of purchase.

SKU: AI0229
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Non-Skid Base, 2 Bolt Holes
Country/Region of Manufacture: United States
Material: Cast Iron, Black
Manufacturer: Line Master
Part Number: 3C-30A2-S
Series: Clipper
Shelf: K-44
Model: 3C-30A2-S
MPN: 3C-30A2-S
Type: Foot Switch
