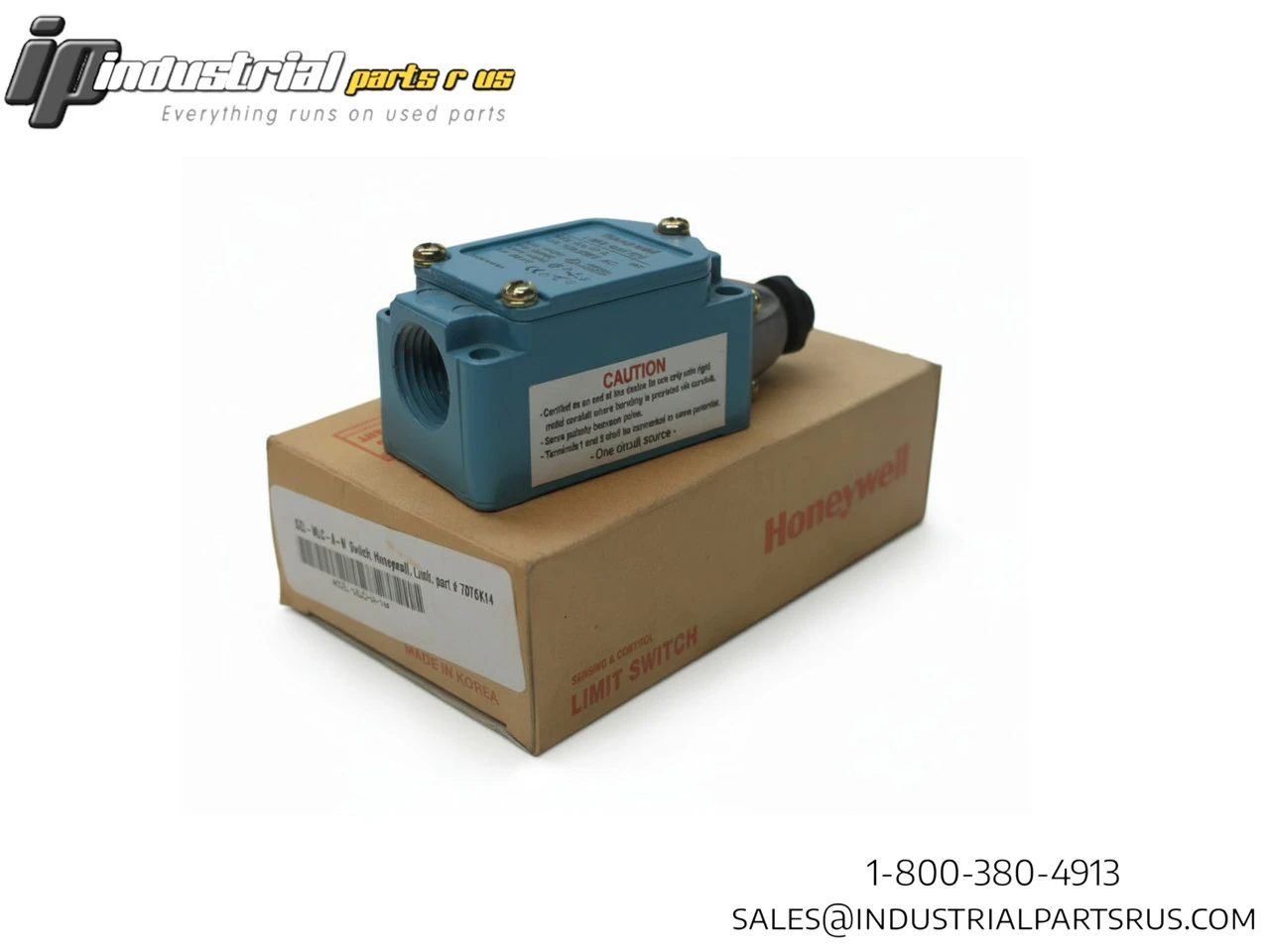

NEW HONEYWELL SZL-WL-F-N
Overview
Description
The Honeywell SZL-WL-F-N is a general purpose limit switch from the SZL-WL series, designed for reliable operation in industrial applications. This switch features a top plunger actuator with SPDT (Single Pole Double Throw) contact configuration, providing both normally open and normally closed contacts. Built for durability, it's suitable for use in conveyors, machinery, and various automation systems.
Specification
Value
Brand
Honeywell
Model/Part Number
SZL-WL-F-N
Product Series
SZL-WL Series
Actuator Type
Top Plunger
Contact Configuration
SPDT (Single Pole Double Throw)
Switch Configuration
NO + NC (Normally Open + Normally Closed)
Contact Current AC Max
10A
Contact Voltage AC Max
250VAC
Contact Current DC Max
800mA
Contact Voltage DC Max
125VDC
Operating Force Max
26.67N
Mounting Type
Chassis Mount
Terminal Type
Screw Terminals
Enclosure Rating
IP67
Dimensions
40mm x 41.5mm x 97.7mm
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0237
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Korea
Mount: Chassis Mount
Series: SZL-WL Series
Voltage: 250VAC
GTIN: 679523686185
Full Load Amps: 10A
Manufacturer: Honeywell
Enclosure Type: IP67
Part Number: SZL-WL-F-N
Shelf: K-44
Model: SZL-WL-F-N
MPN: SZL-WL-F-N
Type: Limit Switch
