Product: Lathes
Max Swing Over Bed: 14"
Max Workpiece Length: 40"
Max Cutting Length: 34"
Max Swing Over Cross Slide: 8.25"
Bed Width: 7.5"
Spindle Bore: 1.5", D1-4
Spindle Speed: 30-2,000 RPM
Range of Longitudinal Feeds: .0016-.00368IPR, 40 kinds
Range of Cross feeds: .0008-.00122IPR, 40 kinds
Main Motor: 3HP, 220V, 1 Phase, 10 Amp OR 3HP, 220V, 3 Phase, 10 Amp
Coolant Pump: 1/16 HP, 220V, 1 phase, Water Base Coolant
Overall Dimensions (approx.): 73" x 35" x 59"
Weight (approx): 1,930 lbs.
Equipped with:

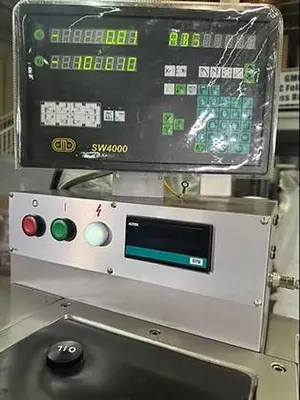

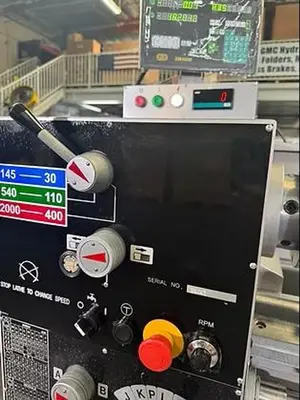

CARMAR DRO installed

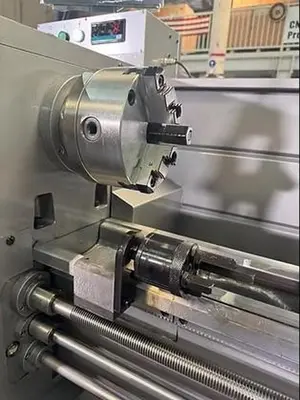

6” 3-jaw chuck with set reversible jaws
10” Face plate

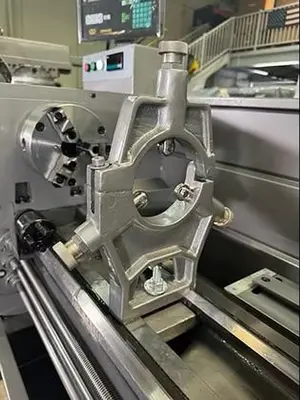

4” steady rest with roller jaws
2” follow rest with roller jaws
4-position carriage stop
Foot brake
Coolant system
LED work light
Removable gap

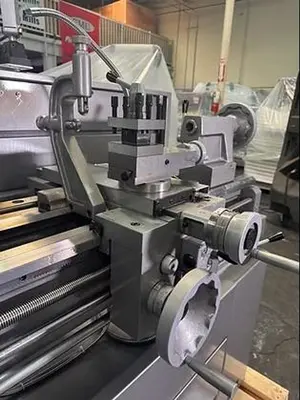

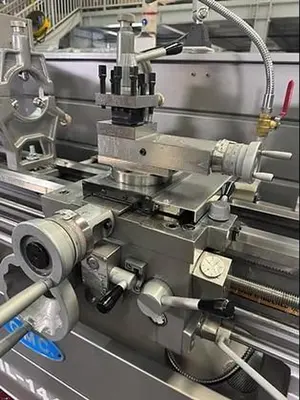

4-way tools post
Full length splash guard
(1) dead center and (1) reducing sleeve
Thread chasing dial
Tool box with leveling pads
Free CARMAR DRO installed
6” 3-jaw chuck with set reversible jaws
10” Face plate
4” steady rest with roller jaws
2” follow rest with roller jaws
4-position carriage stop
Foot brake
Coolant system
LED work light
Removable gap
4-way tools post
Full length splash guard
(1) dead center and (1) reducing sleeve
Thread chasing dial
Tool box with leveling pads
Standard Features:
Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
1 Year Warranty on Parts
ISO 9001 certified
Machine bed is made of high tensile cast iron FC25, Meehanite casting
With free CARMAR DRO installed

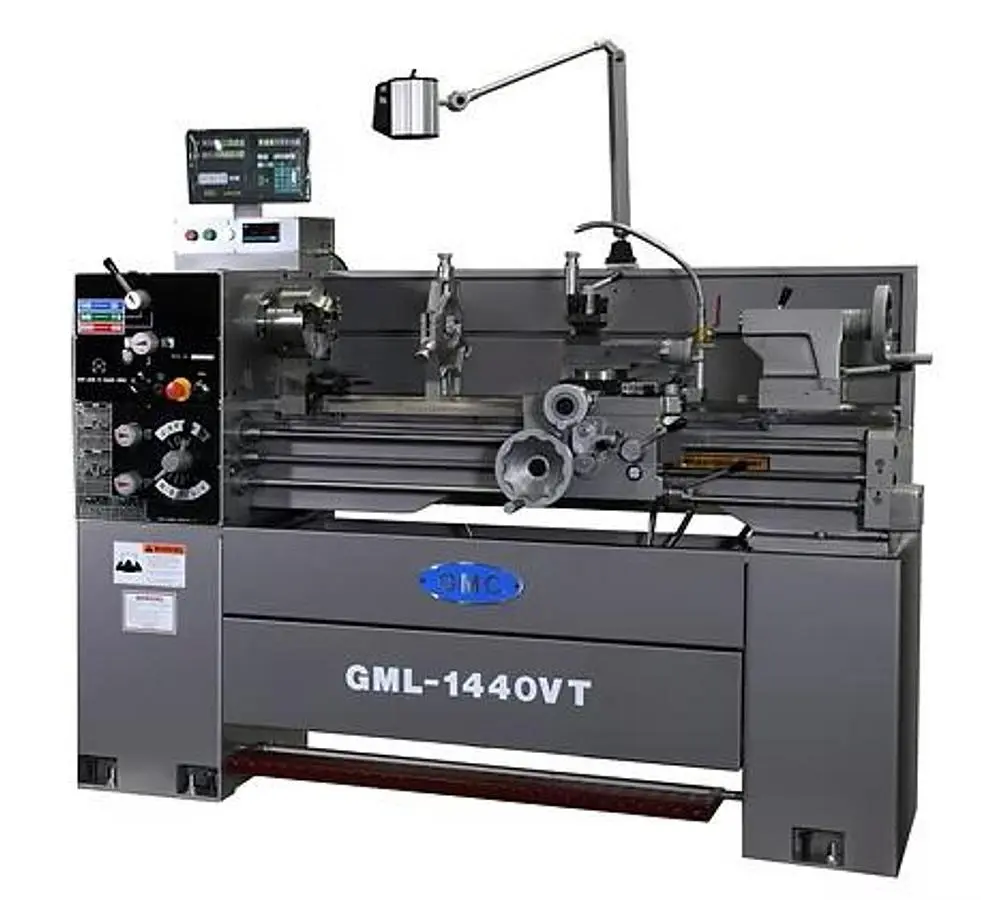

Full Geared-head precision Engine Lathe with foot brake

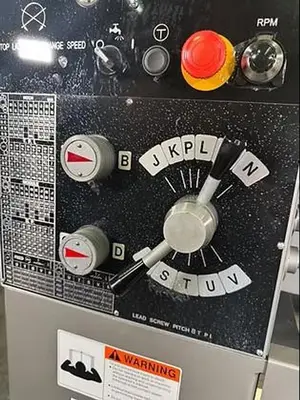

Quick-change gearbox with fast and easy threading set up
Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
Spindle bore 1 1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7-1/2”
Variable spindle speeds from 30-2,000 rpm
32 kinds of inch threads, and 32 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
