USED LINCOLN 275

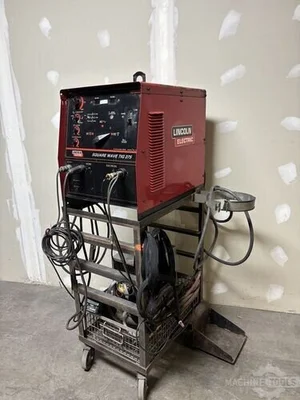

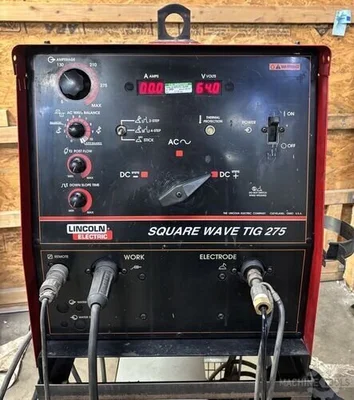

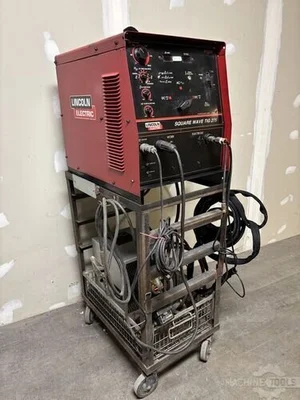

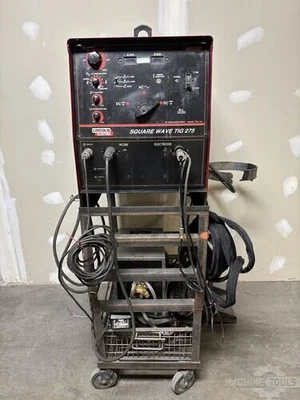

Lincoln 275 Squarewave TIG Welder

General Info

Stock #: 181260008
Location: Columbus, Ohio
Brand: Lincoln
Model: 275
Approx. Shipping Weight: 397 Lbs.
Approx. Shipping Dimensions: L-32", W-41", H- 29"
Loading Fee: Rigging Required

Specifications

Processes: AC/DC TIG (GTAW) And Stick (SMAW)
Output Range: 2-340 Amps (AC And DC)
Rated Output: 275 Amps At 40% Duty Cycle
Maximum Open Circuit Voltage (OCV): 75 Volts
Input Power: 208/230/460 Volts, Single Phase, 60 Hz
Input Current At Rated Output: 104/94/47 Amps (40% Duty Cycle)
AC Wave Features: Square Wave Balance With Auto Balance

Equipped With
Foot Pedal, New Wp-20 Torch, Bernard 3500ss With New Pump, Ground Lead, and Manual

Additional Info
Demo Upon Request
