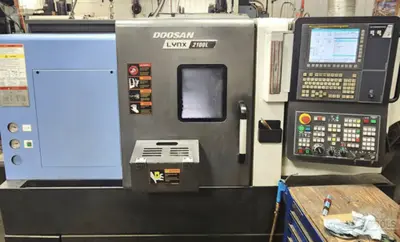

Doosan Lynx 2100LB CNC Lathe (2017)
| Machining Length | 22" | 558.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.64" | 67.056 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Sub Spindle | No | No |
General Info
Stock #: 113260003
Brand: Doosan
Model: Lynx 2100LB
Year: 2017
Condition: Excellent (Used, Original Owner)

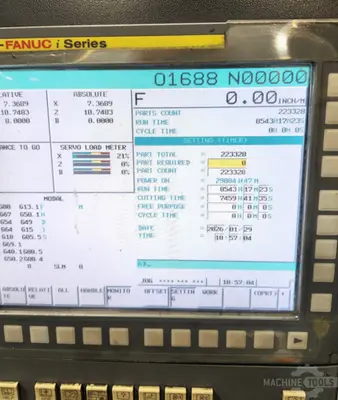

Hours: Approx. 7,500 Cutting Hours (as of January 2026)
Approx. Shipping Weight: 7,500 LBS
Specifications
Max Cutting Diameter: 13.78" (350.01 mm)
Max Cutting Length: 22" (558.8 mm)
X-Axis Travel: 8.1" (205.74 mm)
Z-Axis Travel: 22" (558.8 mm)
Chuck Size: 8" (203.2 mm)
Bar Capacity: 2.6" (66.04 mm)
Spindle Motor: 20 HP (14.9 kW)
Spindle Speed: 4,500 RPM
Rapid Traverse Rate (X/Z): 1,181 in/min (2,999.7 cm/min)
Turret Positions: 12
Machine Dimensions: 102" x 63" x 66"
Equipped With

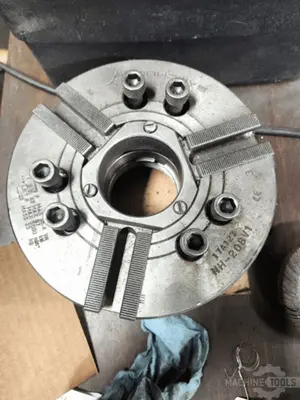

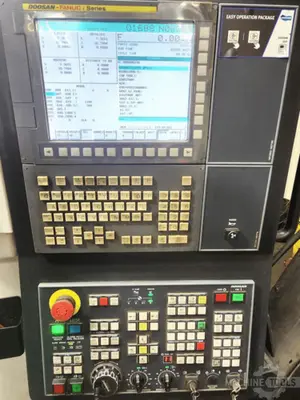

Doosan Fanuc i-Series CNC Control, Collet Chuck System, 8” 3-Jaw Hydraulic Chuck, Chip Conveyor, Tool Presetter, Tailstock, Parts Catcher
Additional Info
Original owner 2017 Doosan Lynx 2100LB 2-axis CNC lathe in excellent condition, primarily used for cutting stainless steel & aluminum. In plant, under power, and ready for immediate inspection, demo, or purchase. As-is, where-is. Contact us for additional photos, video (if available), or to schedule a viewing. Sourced from trusted partner dealer.
