USED 2016 DOOSAN PUMA GT3100

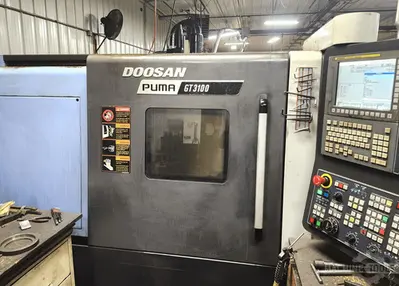

Doosan Puma GT 3100 (2016)

General Info

Stock #: 113260004
Brand: Doosan
Model: Puma GT 3100
Year: 2016
Condition: Excellent (Used, Original Owner)
Hours: Approx. 8,000 Cutting Hours (as of January 2026)
Approx. Shipping Weight: Not Specified (Typical ~12,000-15,000 LBS for similar models)

Specifications

Max Swing: 28.3" (718.82 mm)
Max Cutting Diameter: 18.9" (480.06 mm)
Max Cutting Length: 29.7" (754.38 mm)
X-Axis Travel: 10.2" (259.08 mm)
Z-Axis Travel: 32.7" (830.58 mm)
Chuck Size: 12" (304.8 mm)
Bar Capacity: 4" (101.6 mm)
Spindle Bore: 4.53" (115.06 mm)
Spindle Nose: A2-11
Spindle Motor: 45 HP (33.6 kW)
Spindle Speed: 2,800 RPM
Turret Positions: 12

Equipped With

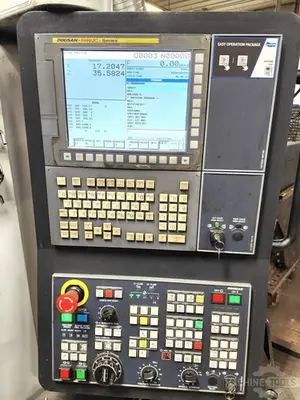

DOOSAN-FANUC i Series CNC Control, 2-Speed Gearbox, 12" 3-Jaw Hydraulic Chuck, S26 Collet Chuck, Programmable Tailstock, Tool Presetter, Chip Conveyor, Box Ways

Additional Info
Original owner 2016 Doosan Puma GT 3100 2-axis CNC lathe in excellent condition, primarily used for cutting stainless steel & aluminum. In plant, under power, and ready for immediate inspection, demo, or purchase. As-is, where-is. Contact us for additional photos, video (if available), or to schedule a viewing. Sourced from trusted partner dealer. Also available in the same plant: 2017 Doosan Lynx 2100LB.
