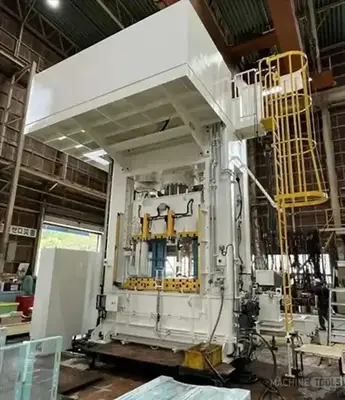

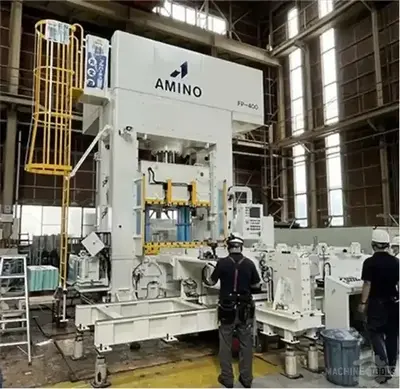

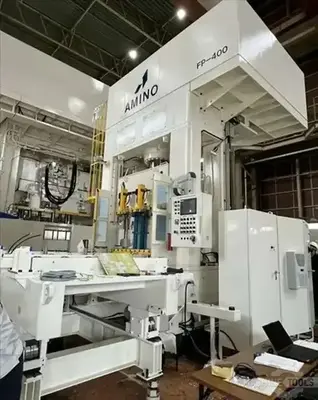

USED 2024 AMINO FP-400

Amino FP-400 400 Ton Single Action Hydraulic Straight-Side Forming Press

Tonnage Capacity: 400 Ton
Pull Up Capacity: 30 Ton
Stroke: 19.7"
Daylight: 50"
Max. Total Die Weight: 4.8 Ton
Max. Upper Die Weight: 1.5 Ton

Approach Speed: 425 IPM
Pressing Speed - Under 320 Tons: 23.6 IPM
Pressing Speed - Over 321 Tons: 9 IPM
Return Speed (Fast / Slow): 330 IPM / 141 IPM

Bolster Area (L-R x F-B): 66.9" x 47.2"
Slide Area (L-R x F-B): 66.9" x 47.2"

Max. Dual Die Changer Weight: 6 Ton
Main Motor: 50 HP
Electrical: 480V / 60Hz
Condition: Never Installed

Dual Die Automatic Die Changer
Hydraulic Die Clamping
Gib Guided Slide
