CNC Horizontal Machining Center
| X | 29.92" | 759.97 mm |
| Y | 29.92" | 759.97 mm |
| Z | 29.92" | 759.97 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 48 | 48 |
| Taper | #40 | #40 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| # Axis | 3 | 3 |
Request a Quote
Add to Cart
Pallet Size (Millimeters): 500
Pallet Size: 19.69" x 19.69"
X-Axis Travel: 29.92"
Y-Axis Travel: 29.92"
Z-Axis Travel: 29.92"
Tool Magazine Capacity: 146 ATC
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Control: OSP P300
Pallet Indexing: Full 4th Axis
Chip Removal: Chip Conveyor
Coolant: 1,000 PSI CoolJet Through Spindle Coolant
Machine Weight: 29,000 Lbs

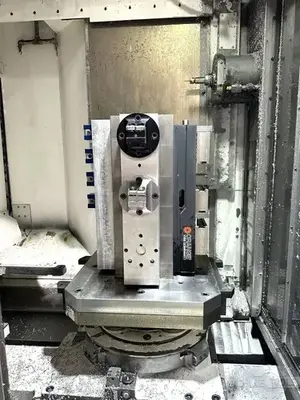

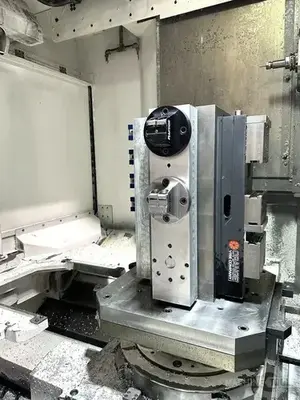

(8) Tombstones Included: Spare M-Codes
10 Pallets: Renishaw Touch Probe
Rigid Tapping: Spindle Chiller Unit
Tool Breakage Detection: Tool Wear Compensation
Multi-Tap Transformer
