USED JWI 800N32-49-

Manufacturer Information

Manufacturer: JWI

Model: 800N32-49-25SYLS

Plate Size: 800 mm Square Plates

Serial Number: F05045

Year Built: 2017

Condition: Used

Description

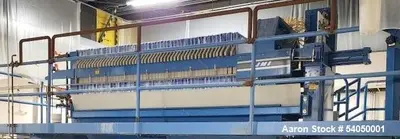

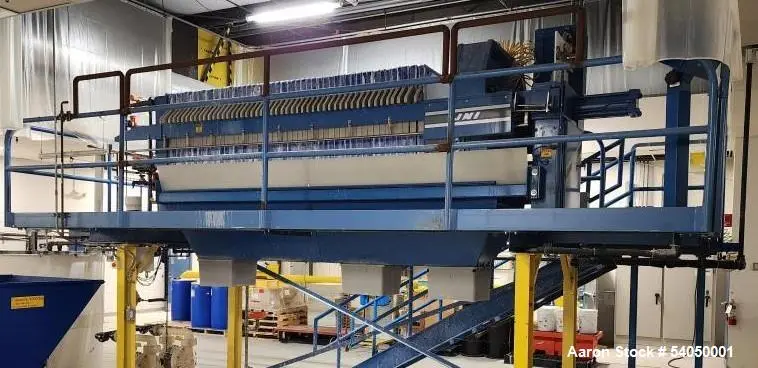

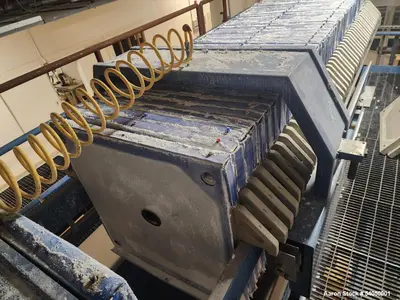

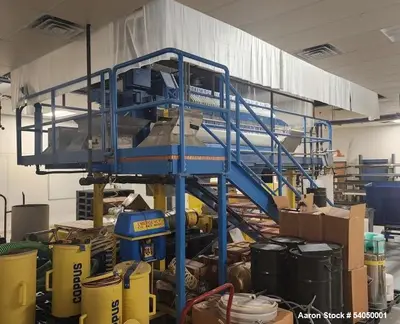

This Used JWI Model 800N32-49-25SYLS Filter Press is a high-capacity dewatering system designed for solid-liquid separation in industrial, chemical, and wastewater treatment applications.

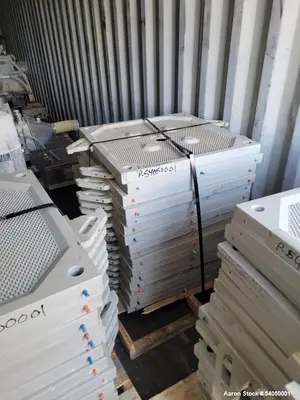

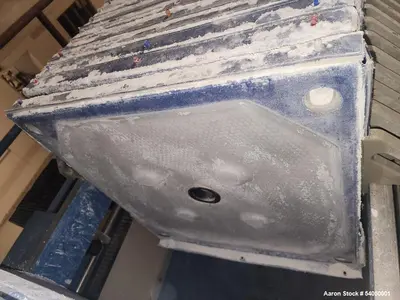

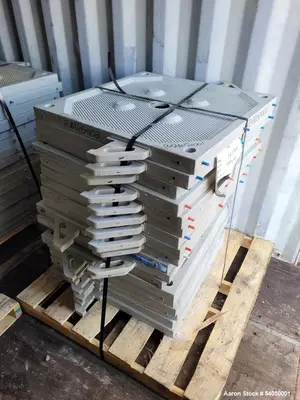

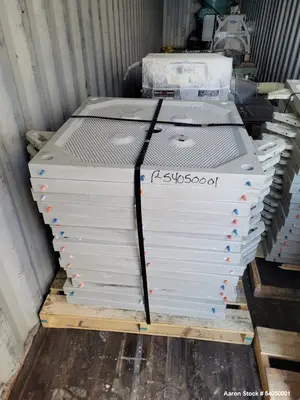

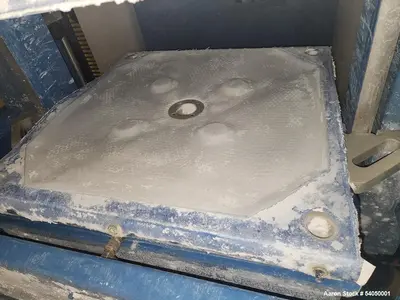

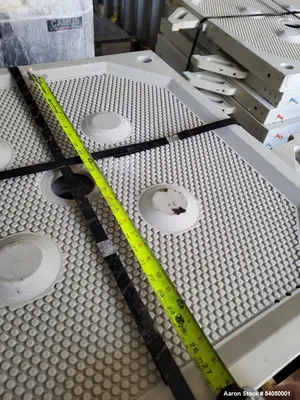

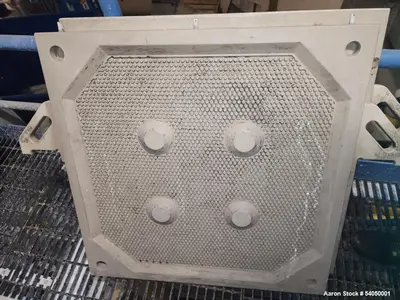

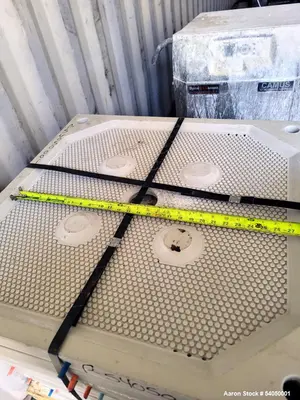

The press includes approximately (49) polypropylene 800 mm square plates fitted with Gore-Tex filter cloth, delivering a total filter area of approximately 528 sq. ft. (49 m²) and a total chamber volume of approximately 25 cubic feet (0.707 m³) across 49 chambers (0.5 ft³ per chamber).

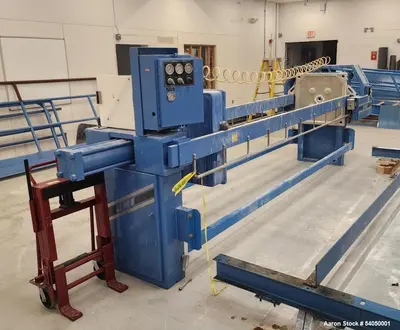

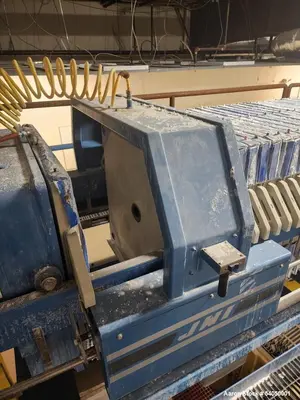

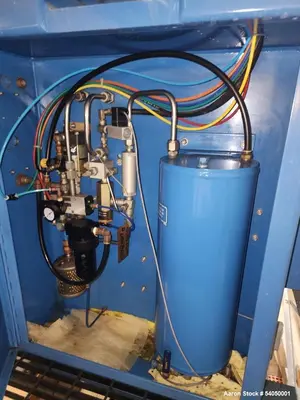

The system utilizes an air-powered hydraulic pump requiring up to 80 SCFM at 100 PSI, driving a 6" bore x 24" stroke hydraulic cylinder with a maximum hydraulic closing pressure of 4,100 PSI (283 bar). The hydraulic system includes a 4.5-gallon reservoir using Rykon All Weather Type-46 hydraulic oil.

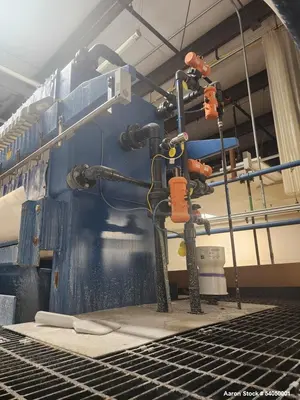

Designed with an air blow manifold style and precoating capability, the press enhances cake dryness and filtration efficiency. Feed pump pressure is rated at 100 PSI.
Optional features included with this system:

Auto pump control system

Semi-auto shifter

Drum disposal system

Bombay doors

With overall dimensions of approximately 218.63" L x 53.29" W, this unit is suitable for medium to large-scale filtration operations.

Specifications

Model: 800N32-49-25SYLS

Plate Size: 800 mm square

Plates: Approx. (49) polypropylene plates

Filter Cloth: Gore-Tex

Total Filter Area: Approx. 528 sq. ft. (49 m²)

Total Chamber Volume: Approx. 25 ft³ (0.707 m³)

Chamber Volume: 0.5 ft³ per chamber

Overall Dimensions:

218.63" L

53.29" W

Hydraulic System:

Air-powered pump

Max air supply: 80 SCFM @ 100 PSI

Hydraulic cylinder: 6" bore x 24" stroke

Max closing pressure: 4,100 PSI (283 bar)

Reservoir: 4.5 gallons (17 L)

Oil: Rykon All Weather Type-46

Feed Pump Pressure: 100 PSI

Manifold Style: Air blow with precoating capability

Year: 2017

Applications

Wastewater treatment

Chemical processing

Mining and mineral processing

Sludge dewatering

Food processing filtration

What Might This Be Used For
This filter press is typically used for separating solids from liquids by pressure filtration, producing dry filter cake and clarified filtrate in industrial and municipal processes.

Products This Equipment Is Used For

Wastewater sludge

Chemical slurries

Mining tailings

Food byproducts

Industrial process water

Metal hydroxides

Paint and coatings waste

Pharmaceutical solids

Pulp and paper sludge

Industrial wastewater
