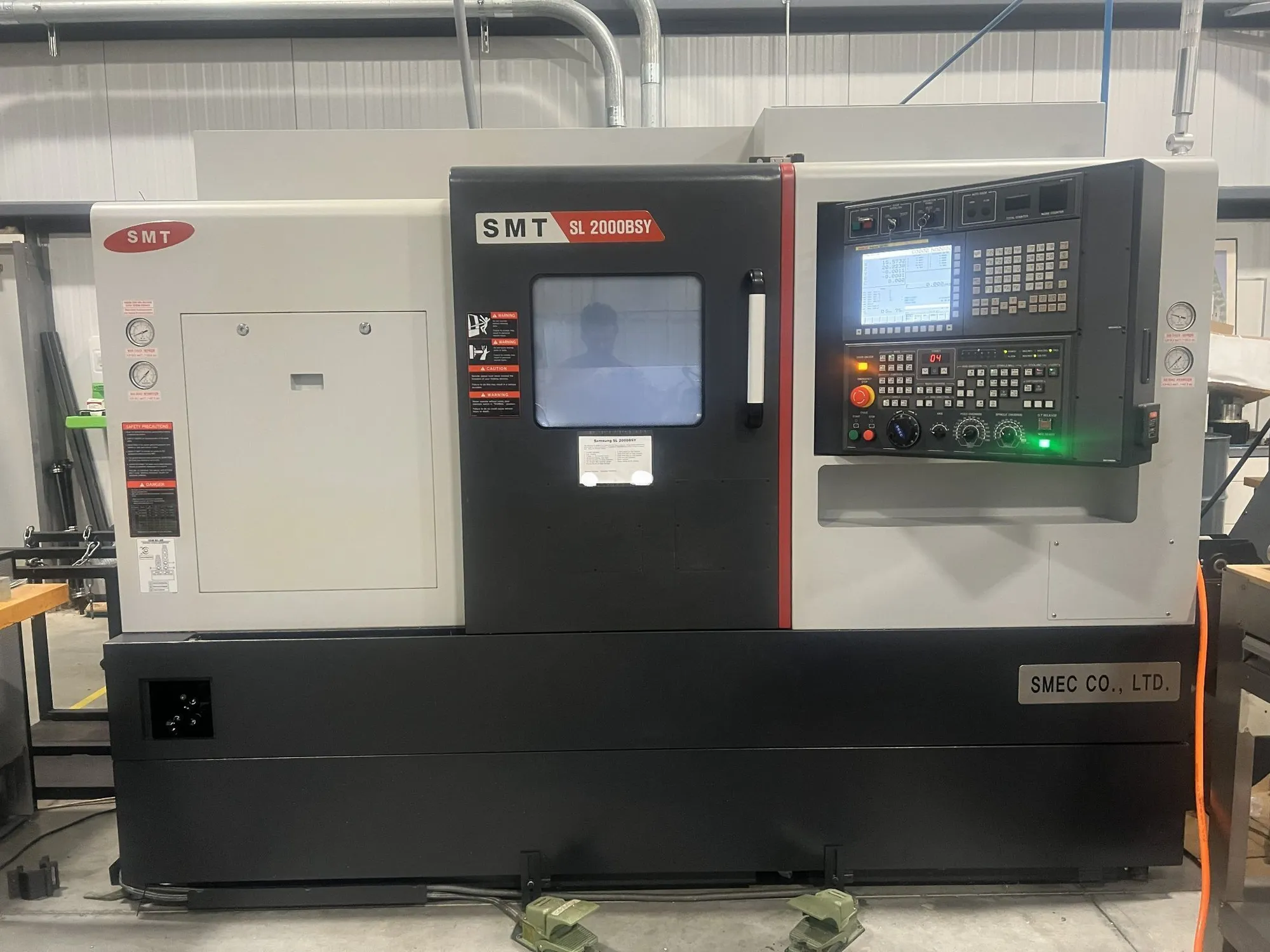

2018 Samsung SL2000BSY 8-Axis Mill/Turn with Fanuc Oi-TF Control, 8" & 6" Chucks, Tool Presetter, Parts Catcher, Sub-Spindle, Live Tooling, Y-Axis, Parts Catcher & Conveyor. Very Low Hours.
| Year | 2018 | 2018 |
| # Axis | 8 | 8 |
| Swing | 25.6" | 650.24 mm |
| Machining Length | 17.72" | 450.09 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.67" | 67.818 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 15.55" | 394.97 mm |
| Tailstock | No | No |
| Control | CNC (Fanuc Oi-TF Control) | CNC (Fanuc Oi-TF Control) |
SWING OVER BED.................25.6"
SWING OVER CROSS SLIDE.........21.3"
MAX CUTTING DIAMETER...........15.55"
MAX CUTTING LENGTH.............17.72"
X-AXIS TRAVEL..................9.25"
Y-AXIS.........................+/-2.5"
Y-AXIS TRAVEL..................4.13"
Z-AXIS TRAVEL..................22.83"
C-AXIS INDEXING................0.001 DEGREES
CHUCK SIZE.....................8"
BAR CAPACITY...................2.67"
SPINDLE BORE...................2.99"
SPINDLE NOSE...................A2-6
SPINDLE MOTOR..................25 HP
SPINDLE SPEED..................4,500 RPM
RAPID TRAVERSE RATE-X-AXIS.....945 in/min.
RAPID TRAVERSE RATE-Y-AXIS.....394 in/min.
RAPID TRAVERSE RATE-Z-AXIS.....1,181 in/min.
SUB SPINDLE-CHUCK SIZE.........6"
SUB SPINDLE-SPINDLE MOTOR......12 HP
SUB SPINDLE-SPINDLE SPEED......6,000 RPM
TURRET CAPACITY................12
Fanuc Oi-TF control
8" & 6" Chucks
Tool Presetter
Parts Catcher
Sub-Spindle
Live Milling
Y-Axis
Full C-Axis
Parts Conveyor
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
