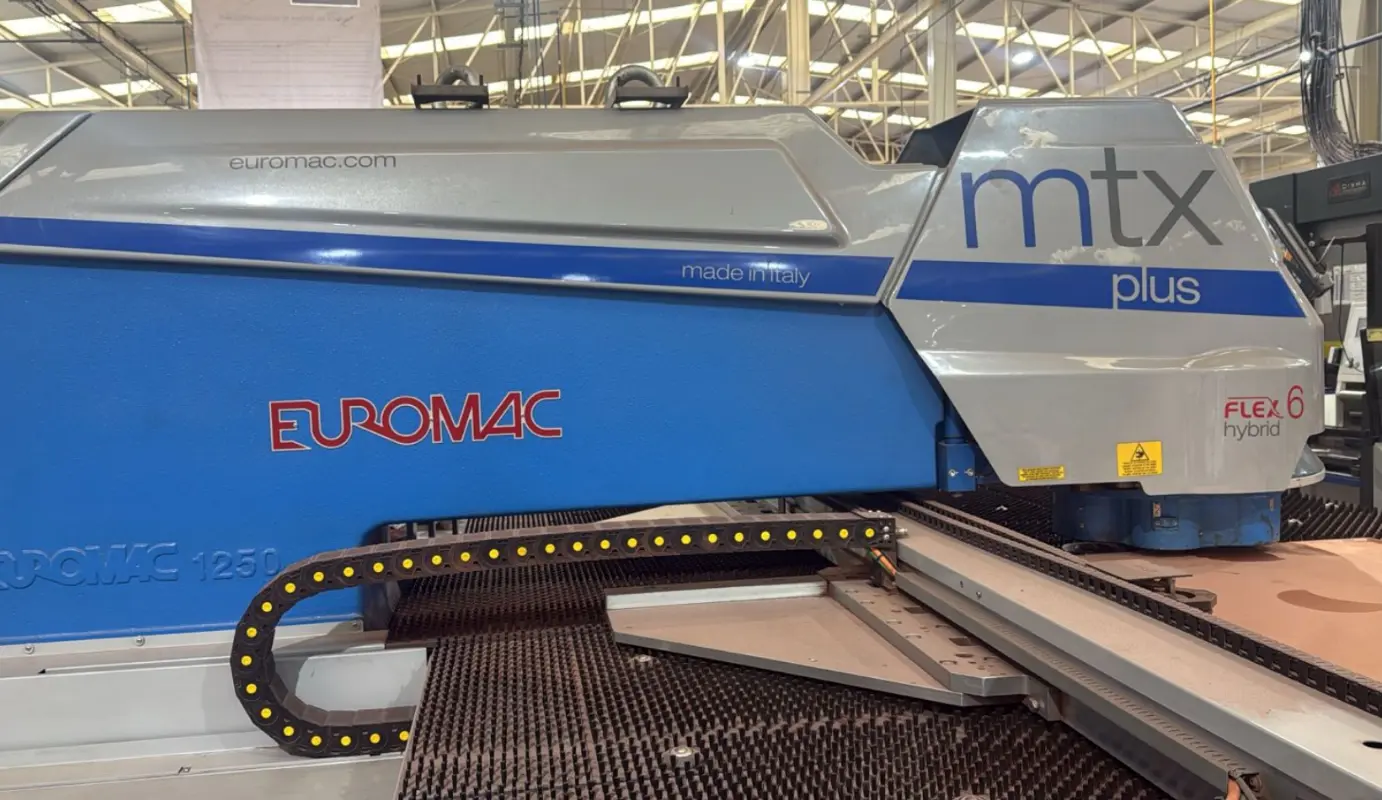

USED 2021 EUROMAC MTX FLEX 6
Overview
Nice Used Like all Euromac punching machines the MTX Plus FLEX 6 hybrid comes built with a robust frame and a punching head built directly into the frame making the machine reliable and precise. What’s more, thanks to the Flex system, the MTX can punch at high speed while maintaining a constant punching depth.
Specs
Euromac MTC PLus Flex 6 Hybrid CNC Turret Punch
Max. Punching Force (Ton): 33
Y Axis with Multitool/Monopunch
Y Axis: 1250mm (49″)
X Axis: 2250mm (88″)
Strokes Per Minute: 1,000
Automatic Repositioning in X: Up to 32′
Numerically Control Stroke Depth from 0.6″ to .04″
Hydraulic Servomotor Controlled System
Standard
Position Accuracy: +/-0.05 mm
Precision in Forming Repeatability: +/-0.1 mm
Bidirectional Autoindex Stations: 3
Opening of Clamps: 11
Automatic Positioning Clamps: 2
Max. Hit Rate (1/min): Punching with .78″ Pitch .57″
Nibbling with .6″ Pitch 39.37″
Marking 78.74″
Thickness Range: Up To 1/4″
Max Weight at Reduced Axis Speed (kg) 150
USB Port: 6
Installed Power (kW) 8.5
Average Consumption (kW/h) 4.5
Approx. Weight: 15,432 Lbs.
Overall Dimensions 156.69″ X 142.91″
