5 Axis, Fanuc Series 16i-MB
| size | 5" | 5" |
| Spindle Size | 5.11" | 129.79 mm |
| X-Horiz Tvl of Table | 157" | 3,987.8 mm |
| Y-Vert Tvl of Head | 90" | 2,286 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Table-W | 70.87" | 1,800.1 mm |
| Table-L | 86.61" | 2,199.9 mm |
| Spindle Tvl. | 25.59" | 649.99 mm |
| Control | CNC (Fanuc 16iM) | CNC (Fanuc 16iM) |

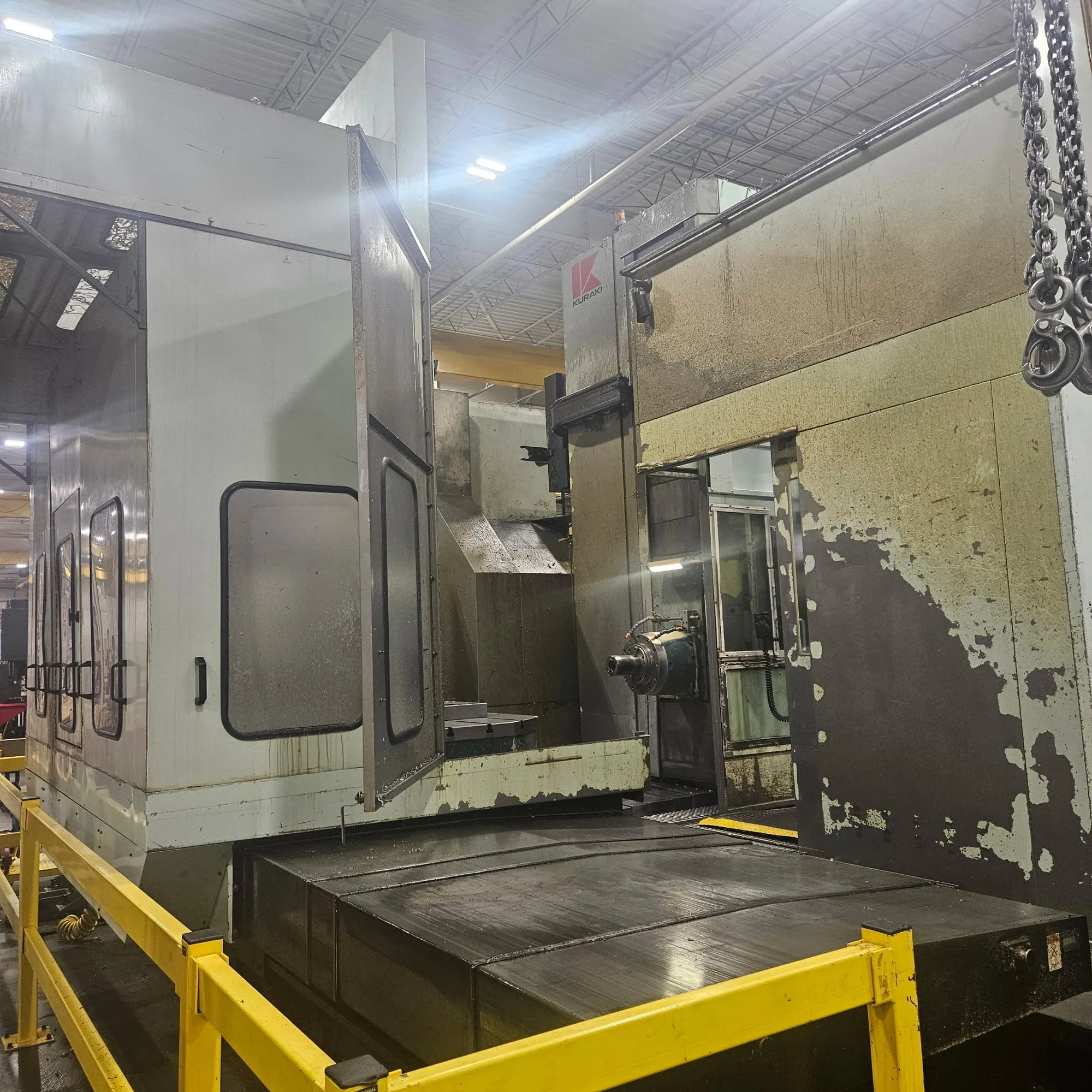

Kuraki KBT 13EA CNC Table Type Horizontal Boring Mill (2003)
Spindle Diameter: 130 MM
X travel 157.480 / 4000MM Table Travel, X-Axis: 4000 MM
Y travel 90.55 Vertical Head Travel, Y-Axis: 2300 MM
Z travel-51.18 Column Cross Travel, Z-Axis: 1300 MM
W travel-25.59 Spindle Travel, W-Axis: 650 MM
Spindle Taper: BT-50
B-Axis- .001 Degrees
Spindle Speeds: 5-4000 RPM
Main Motor- 60HP 45 KW
Spindle Dia.-5.1
ATC-60
Table size = 70.875 x 86.5
Table Size: 1800 MM x 2200 MM
Table Load Capacity: 19958 KG
Rotary Table, B-Axis: 0.001 Degrees
Feeds: 4001 MM/MIN
Rapid Traverse, X,Y,Z, Axes: 10000 MM/MIN
Rapid Traverse, W-Axis: 6000 MM/MIN
Floor Space: 6830 MM x 6800 MM
Machine Height: 4798 MM
Machine Weight: 81300 Lbs / 36922 KG
Fanuc Series 16i-M
60 Position Automatic Tool Changer
Chip Conveyor
High Guarding Enclosures
Coolant Thru Spindle 1000 PSI
70.87 x 86.61 Built In B-Axis Rotary Table
Chip Blaster coolant through the spindle
Full Chip & Splash Enclosure
Telescoping Steel Way Covers
Scale Feedback on All Axis
