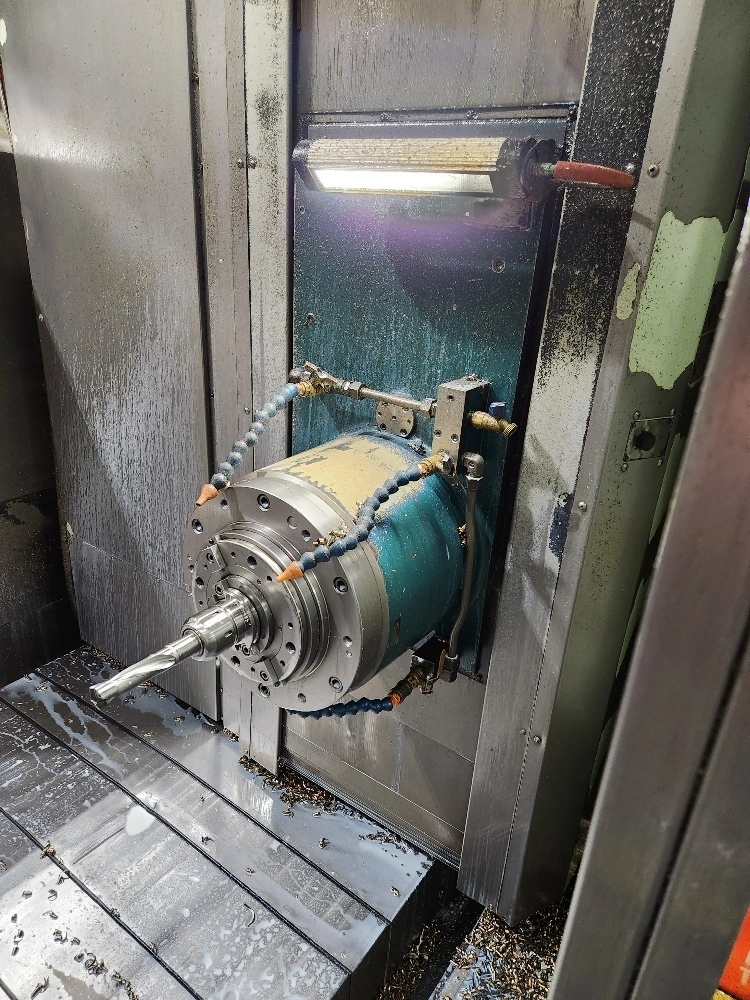

USED 2003 KURAKI KBT-13E.A
Overview
5 Axis, Fanuc Series 16i-MB
Specs
Kuraki KBT 13EA CNC Table Type Horizontal Boring Mill (2003)
Spindle Diameter: 130 MM
X travel 157.480 / 4000MM Table Travel, X-Axis: 4000 MM
Y travel 90.55 Vertical Head Travel, Y-Axis: 2300 MM
Z travel-51.18 Column Cross Travel, Z-Axis: 1300 MM
W travel-25.59 Spindle Travel, W-Axis: 650 MM
Spindle Taper: BT-50
B-Axis- .001 Degrees
Spindle Speeds: 5-4000 RPM
Main Motor- 60HP 45 KW
Spindle Dia.-5.1
ATC-60
Table size = 70.875 x 86.5
Table Size: 1800 MM x 2200 MM
Table Load Capacity: 19958 KG
Rotary Table, B-Axis: 0.001 Degrees
Feeds: 4001 MM/MIN
Rapid Traverse, X,Y,Z, Axes: 10000 MM/MIN
Rapid Traverse, W-Axis: 6000 MM/MIN
Floor Space: 6830 MM x 6800 MM
Machine Height: 4798 MM
Machine Weight: 81300 Lbs / 36922 KG
Equipped With
Fanuc Series 16i-MB
60 Position Automatic Tool Changer
Chip Conveyor
High Guarding Enclosures
Coolant Thru Spindle 1000 PSI
70.87 x 86.61 Built In B-Axis Rotary Table
Chip Blaster coolant through the spindle
Full Chip & Splash Enclosure
Telescoping Steel Way Covers
Scale Feedback on All Axis
