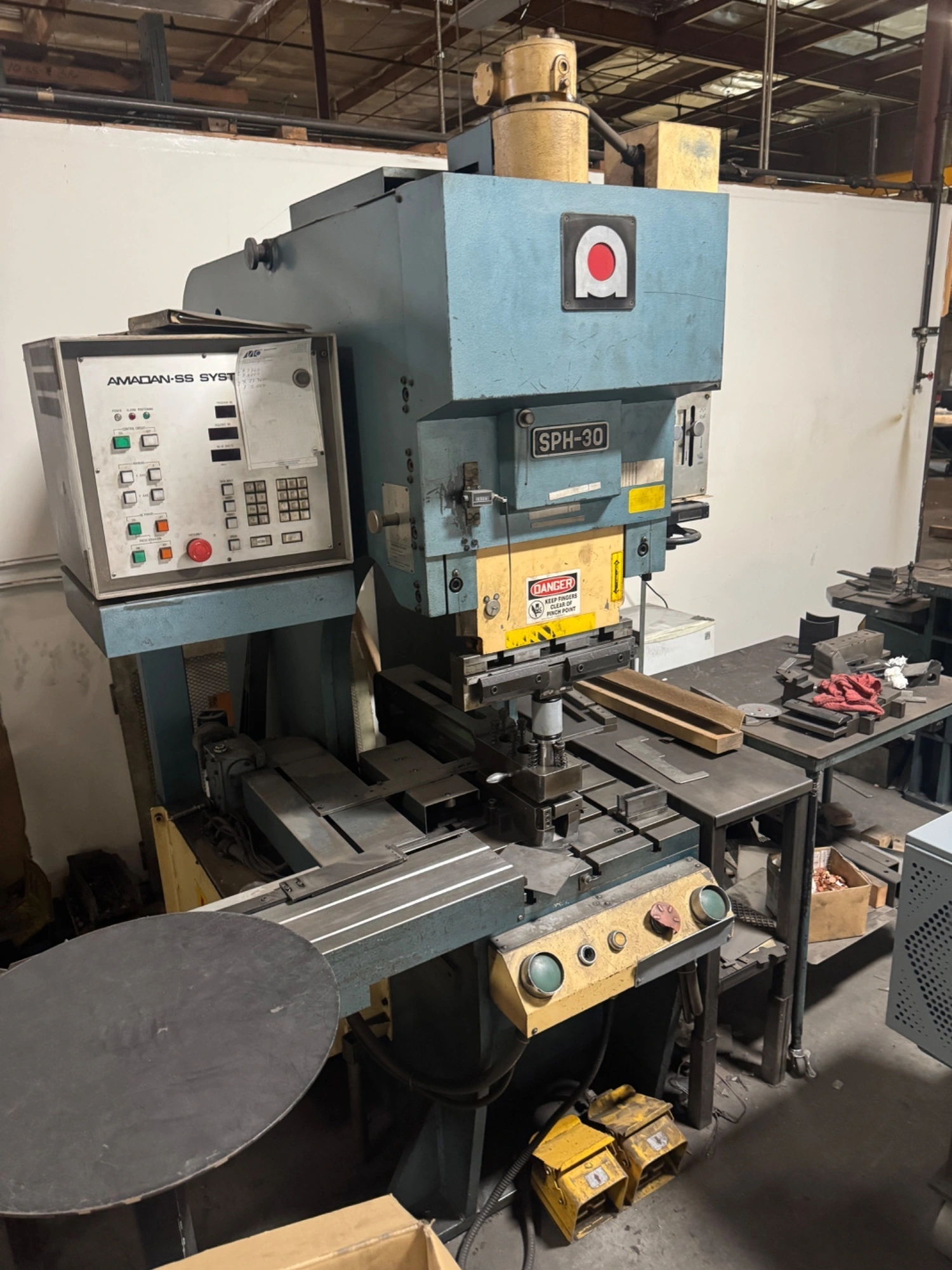

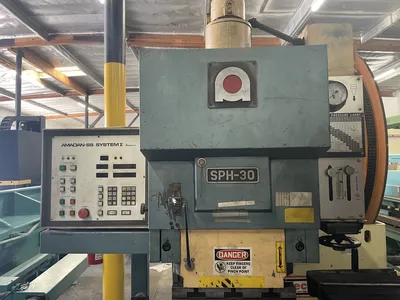

USED AMADA SPH-30

AMADA SPH-30, a single-station punch, ready for your project needs. This used unit from renowned manufacturer AMADA ensures quality performance. Ideal for professionals seeking reliable equipment.

AMADA SPH-30 Single End Punch (Fabricator) #8137 #2

Specifications
Tonnage Capacity: 33 Tons
Overall Length: 15.75"
Stroke (Adjustable): 3.9"
Daylight: 20.5"
Throat Depth: 20.1"
Opening Through Back: 15.4"
Table Area: 27.7" x 16.8"
Reservoir Capacity: 12.7 Gallons

Speeds
Approach: 120 IPM
Pressing: 25 IPM
Return: 181 IPM

Equipped With:
SS104 Gauging System
Pressure Adjustment with Gauge
T-Slotted Bolster Plate
3 HP AC Main (Pump) Motor

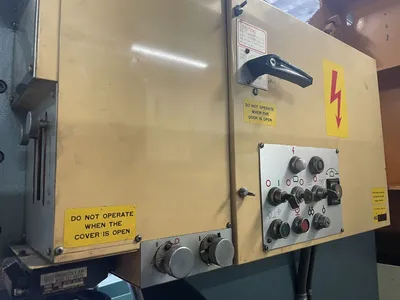

Electrical Controls
Dual Palm Button or Electric Foot Switch Operation
