| Swing | 18" | 457.2 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.08" | 52.832 mm |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC | CNC |
| Dimensions | 100 x 49 | 100 x 49 |
| Weight | 4900 | 4900 |

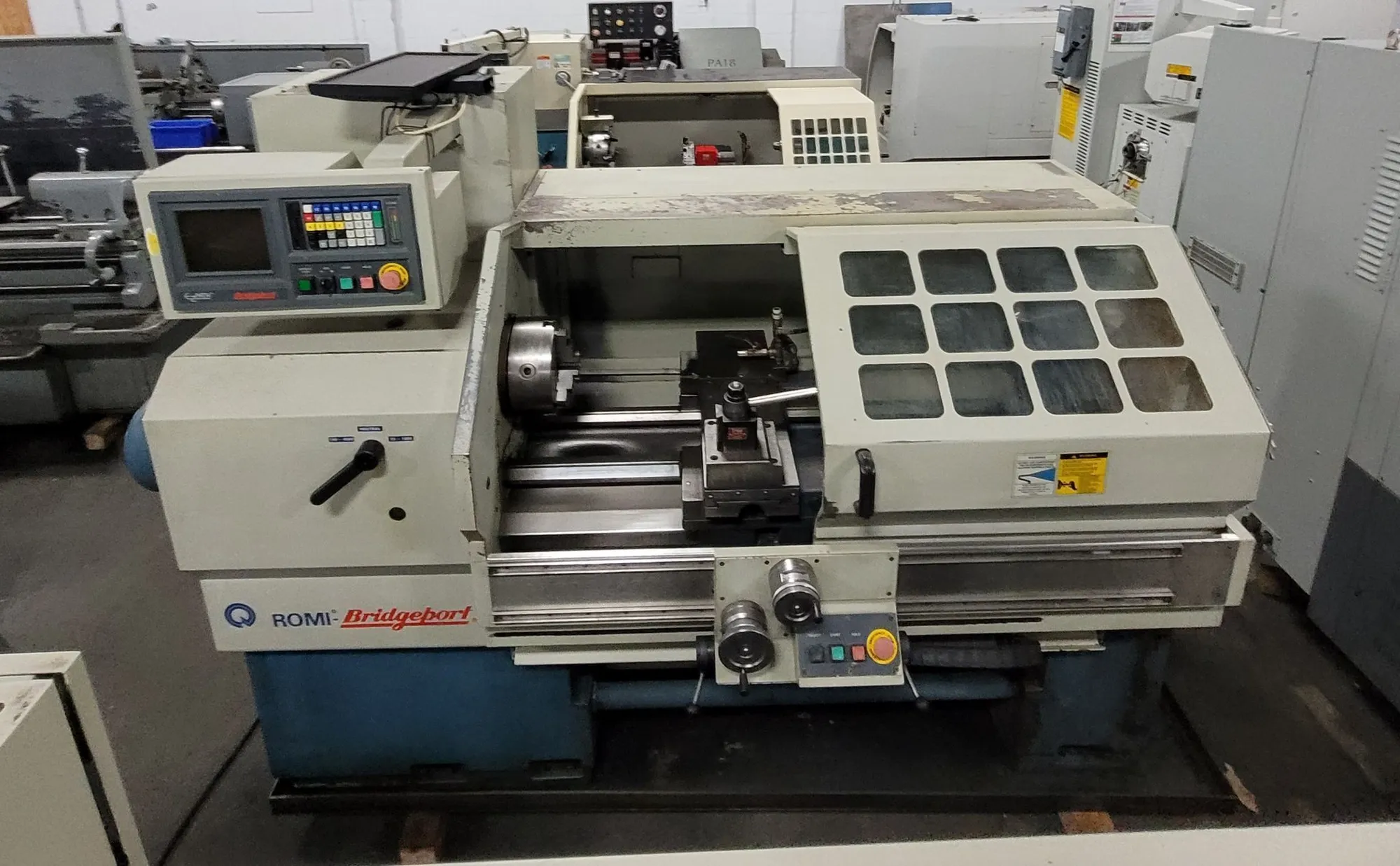

18” x 40” Bridgeport Romi EZ-Path S CNC Teach Lathe
Max Swing: 18″
Distance Between Centers: 40″
Standard Chuck Size: 10″
X Axis Travel: 8.6″
Z Axis Travel: 40″
Feedrates Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM
Spindle Nose Size: A2-5
Spindle Bore: 2.08″
Spindle Speed Range: 25-4000 RPM
Spindle Drive Motor: 7.5 HP
Tailstock Quil Taper: 4.7″
Approximate Dimensions: 100″ x 49″
Machine Height: 77″ (Approx.)
Approx. Machine Weight: 4,900 Lbs.
Electrical Requirements: 240 V, 3 Ph
Equipped with:
Bridgeport EZ Path CNC Control
Dual Electronic Handwheel
Inch/Metric Threading
10″ 3-Jaw Chuck
Manual Tailstock
Geared Headstock
Dorian Quick Change Tool Post w/Tool Holders
Central Automatic Lube System
Coolant system with Chip Pan
