| Swing | 8" | 203.2 mm |
| Centers | 16" | 406.4 mm |
| Power | 5 hp | 3.7 kW |
| Workhead Spindle Speed | 1,960 RPM | 1,960 RPM |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Max Weight Between Centers | 110 lb | 49.9 kg |
Specifications (subject to buyer verification):
Swing Over Table: 8”
Distance Between Centers: 20”
Maximum Grinding Diameter: 8”
Maximum Load Between Centers: 176 lbs

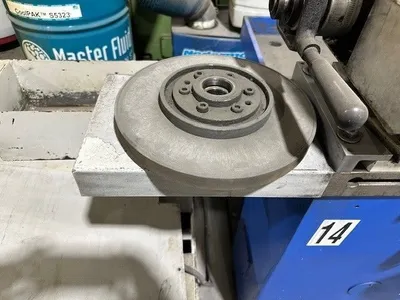

Wheel Size: 14" x 1-1/2" x 3"
Wheel Speed: 1,960 RPM
Infeed/Handfeed Travel: 6-1/3”
Least Travel Increment: 0.0001"

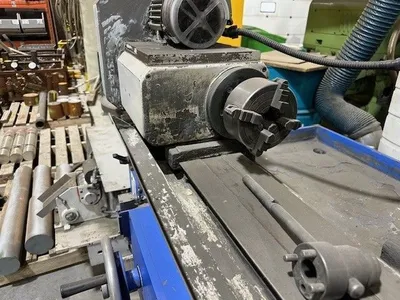

Workhead (Workpiece Speed):
Speed: 150 / 264 / 356 / 480 RPM (Four-step or variable options)
Center Taper: MT3
Swivel Angle: ±45°
Table (Z-Axis):
Swivel Angle: +3° / -5°
Traverse Speed: Variable

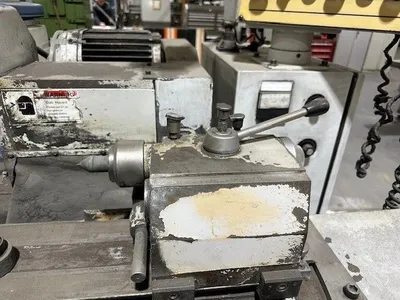

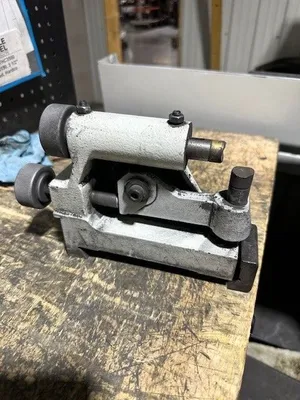

Tailstock: Center Taper: MT3
Equipped with:
Quill Travel: 1”
Motors & Power:
Wheel Spindle Motor: 3 HP (some models may have 5 HP)
Power Requirement: 230V / 3 PH / 60 Hz
Machine Weight & Dimensions: L x W x H: 82" x 47" x 78"
Net Weight: 4,800 lbs
