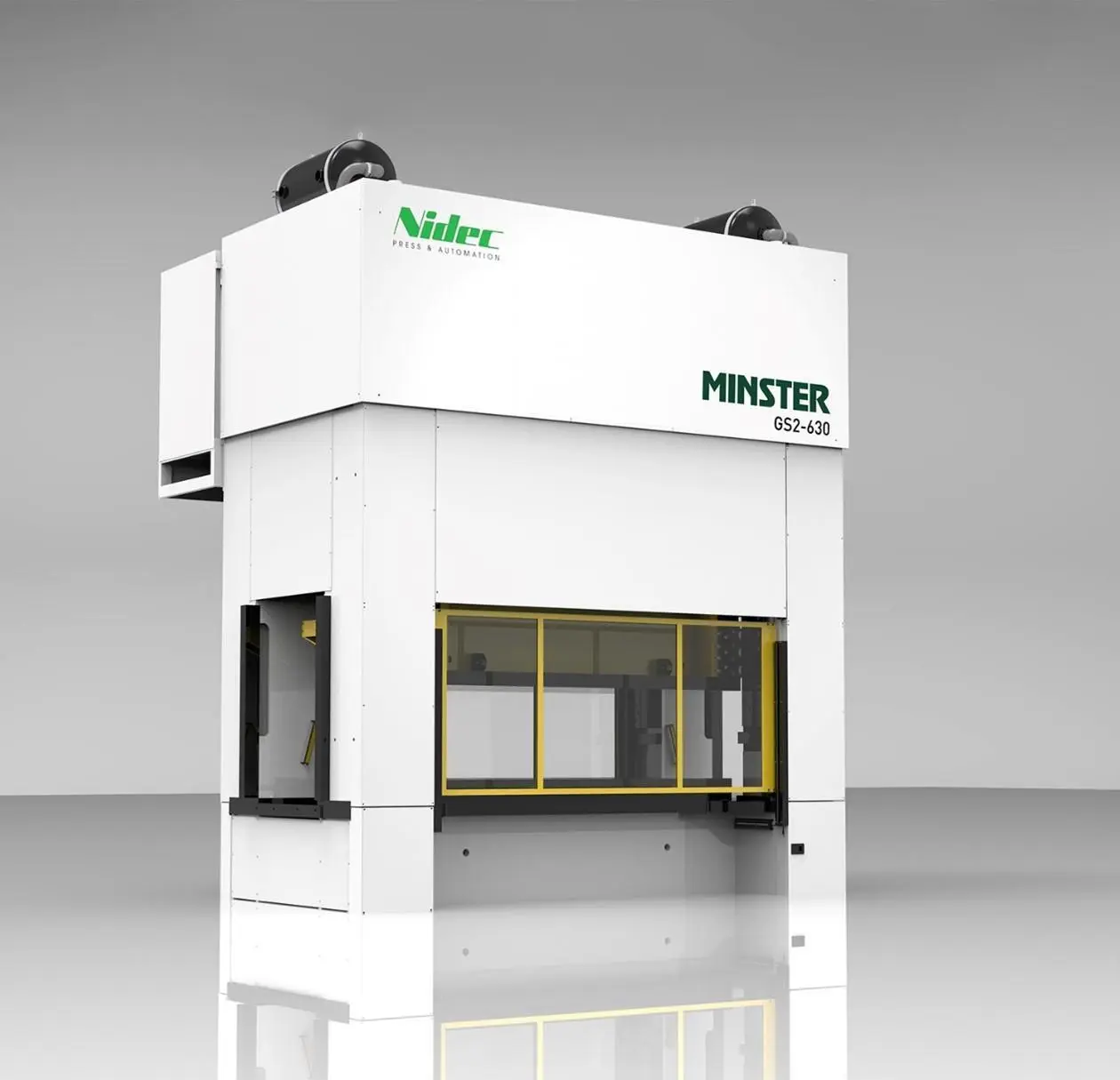

NEW 2024 MINSTER GS2-630-365X150-STD

NEW Minster GS2-630-365x150-STD Straight Side Servo Press

SPECIFICATIONS

Press Specifications
Model Number........................................................   GS2-630-365x150-STD
Force × Distance off Bottom..................................   6300 kN x 7 mm (710 ton x 0.27 in.)

Engery.....................................................................   110kJ @ 40 spm
Connection Points...................................................   2
Lube Unit Location.................................................   Standalone Floor Level
Approximate Press Weight.....................................   125,000 kg (275,600 lb)
Scale and Display Units..........................................   Inch/Metric
Shop Air Pressure, Minimum..................................   5.9 bar (590 kPa) (85 psi)

Press Slide Specifications
Stroke Length..........................................................   400 mm (15.7 in)
Max. Speed - Continuous (reduced rating).............   55 spm
Max. Speed in pendulum 150 mm *........................   85 spm
Max. Speed in pendulum 125 mm *........................   90 spm
Max. Speed in pendulum 100 mm *........................   100 spm
Max. Speed in pendulum 80 mm *..........................   105 spm
      * Rate depends on stroke profile and press mechanical properties
Area of Slide, R-L × F-B........................................   3650 x 1500 mm (143 x 59 in)
Slide Face Machining..............................................   Standard
Overload travel........................................................   25 mm (0.98 in)
Overload recovery time...........................................   120s
Maximum Upper Die Weight.................................   7,000 Kg (15,430 lbs)

Press Bolster Specifications
Bolster Plate Material..............................................   Steel
Bolster Plate Thickness...........................................   190 mm (7.5 in)
Area of Bolster, R-L × F-B.....................................   3650 x 1500 mm (143 x 59 in)
Opening in Bolster, R-L × F-B...............................   None
Bolster Plate Machining..........................................   Standard
NOTE:  DO NOT RELEASE BOLSTER FROM ENGINEERING

Press Frame Specifications
Upright Passline Opening, F-B...............................   1500 mm (59 in)
Area of Bed, R-L × F-B..........................................   3650 x 1500 mm (143 x 59 in)
Opening in Bed, R-L (F-B ribs) × F-B...................   3100 (3) x 650 mm (122 x 25.6 in)
Bed/Slide Deflection at 67% of Die Area...............   0.125 mm/m (0.0015 in/ft)
Shutheight, Maximum (SDAU)...............................   850 mm (33.46 in)  Bolster to Slide
Shutheight Adjustment.............................................   400 mm (15.75 in)
Accuracy of slide adjustment..................................   0.10 mm (0.004 in)
