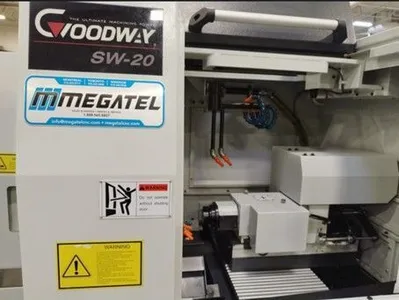

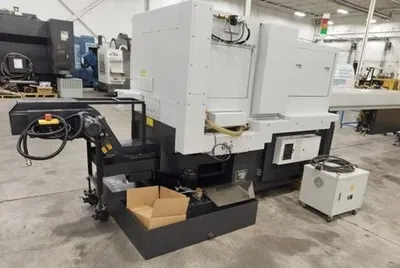

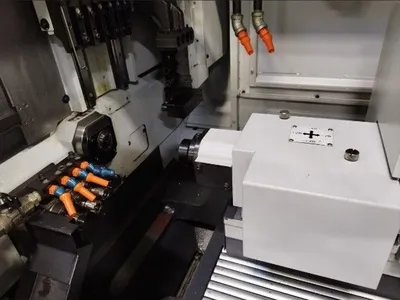

USED 2019 GOODWAY SW-20

Specifications (subject to buyer verification):
Turning Capacity
Maximum Machining Diameter: 0.787”
Maximum Turning Length (with front bush): 8.149”
Maximum Turning Length (bush less): 4.724”

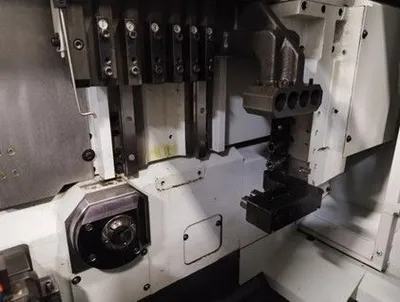

OD Tools
Number of Tools: 6
Shank Size: 0.472”
ID Tools
Number of Tools: 4
Sleeve Size: ER16
Maximum Drilling Capacity: 0.393”
Maximum Tapping Capacity: M8 x P1.25
Side Live Tools
Number of Tools: 5 ~ 10
Maximum Live Tooling Speed: 8,000 RPM
Servi Motor Output: 1.6 HP
Sleeve Size: ER16
Maximum Drilling Capacity: 0.314”
Maximum Tapping Capacity: M6 x P1.0
Maximum End Mill Capacity: 0.393”
Main Spindle
Maximum Speed: 10,000 RPM
Spindle Motor Output (cont./30 min): 2.9/4.95 HP
Minimum Indexing Increment: 0.001°
BACKWORK Turning Capacity
Maximum Machining Diameter: 0.787”
Maximum Part Length for Front Ejection: 3.149”
Maximum Part Projection Length: 1.181”
BACKWORK Tools
Number of Tools: 4
Maximum Live Tooling Speed: 8,000 RPM
Servi Motor Output: 0.53 HP
Sleeve Size: ER16
Maximum Drilling Capacity (ID Tools): 0.314”
Maximum Drilling Capacity (Live Tools):
Maximum Tapping Capacity (ID Tools): M8 x P1.25
Maximum Tapping Capacity (Live Tools): M4 x P0.7
BACKWORK Sub Spindle
Maximum Speed: 8,000 RPM
Spindle Motor Output (cont / 30 min): 2 / 3 HP
Minimum Indexing Increment: 0.001°

Equipped With (subject to buyer verification):

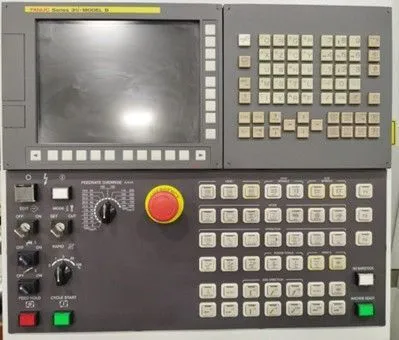

FANUC 31i-TB with 10.4” Colour Screen
Driven System for Live Tool Attachment Main Spindle
Revolving Guide Bush
Main Spindle with C-Axis
Sub-Spindle with C-Axis
Door Interlock (including mechanical lock)
Fluorescent Work Light
Tri-Colour Signal Tower (yellow, red & green)
Parts Catcher

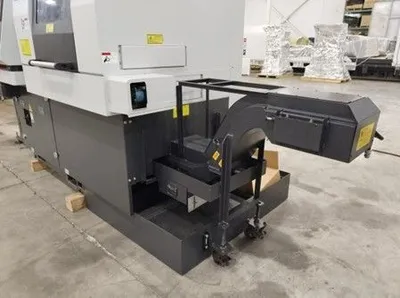

Roll Out Chip Tank
Parts Cut Off Detector
Rigid Tapping
Collet for Main Spindle
Collet for Sub-Spindle
Guide Bush

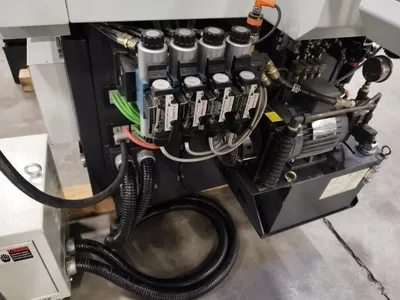

Pneumatic and Hydraulic System
Heat Exchanger for Electrical Cabinet

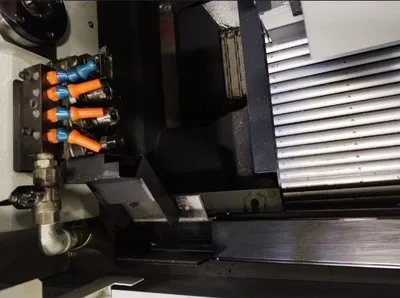

Coolant System with Level Detector
Bar Feeder 12’: Bar Load BWG-20
Standard Tool Holder Package:
1 x clamping piece LC-3006
5 x clamping piece LC-3005
1 x clamping piece LC-3020
1 x clamping piece LC-3019
Boring sleeves LC-3024/25A/25B/25C – Ø4/6/8/10 (1 each)
2 x Drill sleeve LC-3004 (ER-16)
3 x Cross milling /drilling unit LC-ZDE0
1 x Cross live tool holder LC-ZDE0
2 x Back milling unit LC-ZD12 (ER-16)
1 x Spindle front milling unit LC-ZDG0 (ER-16)
4 x Drill sleeve LC-3009 (ER-16)
Drill sleeve LC-2029A/B/C/D – Ø6/8/10/4 (1 each)
2 x Counter face drilling sleeve LC-3021 (ER-16)
