| Drill Capacity (min) | 0.1875" | 4.7625 mm |
| Drill Capacity (max) | 3.125" | 79.375 mm |

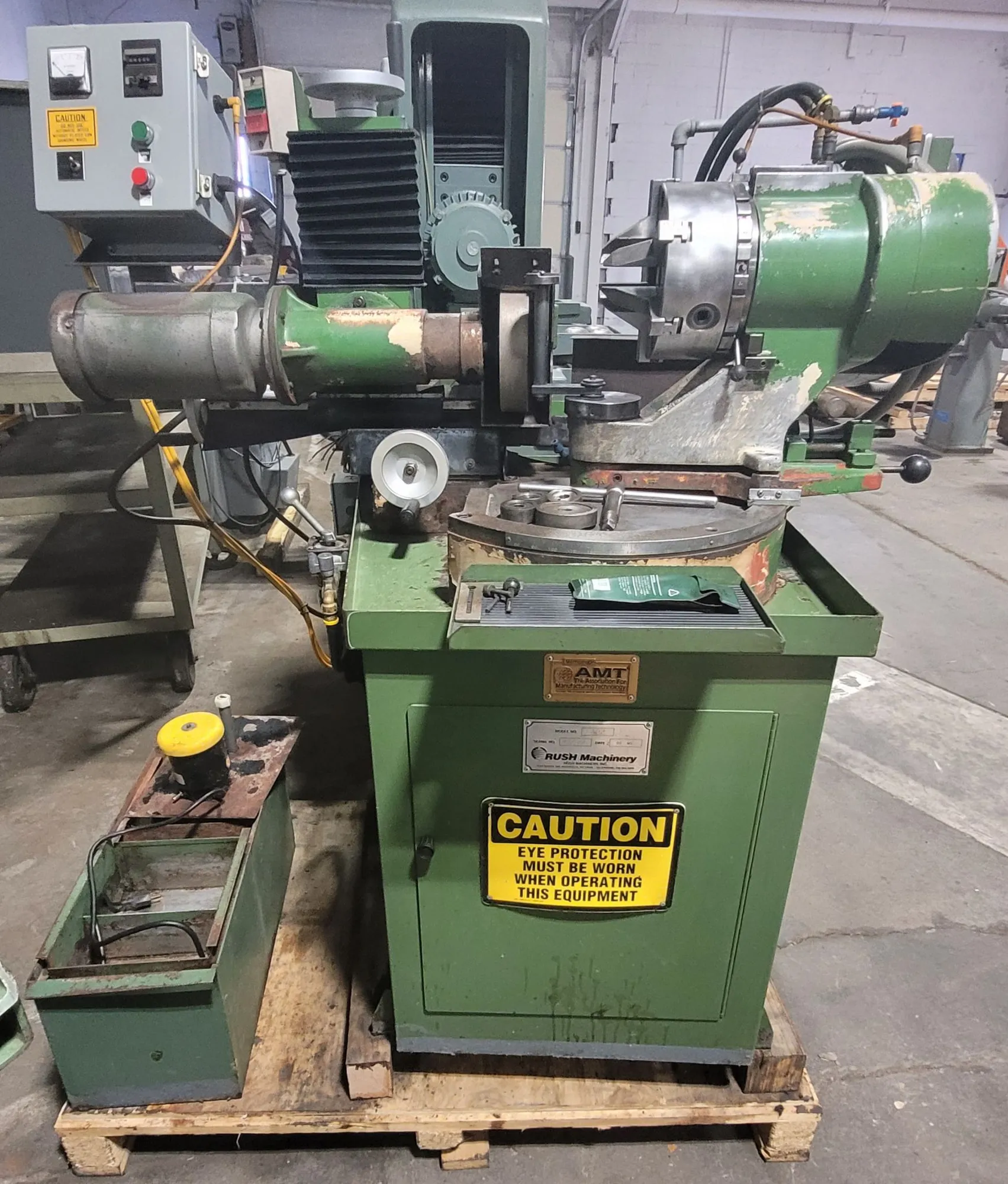

3-1/8" RUSH "382" HEAVY-DUTY SEMI-AUTOMATIC DRILL & TOOL GRINDER
self-centering 6 jaw chuck - pneumatic semi-automatic infeed
3-1/8" RUSH SEMI-AUTOMATIC HEAVY-DUTY DRILL & TOOL GRINDER
New 2000, Serial No 2472, MODEL 382,
EQUIPPED WITH:
Pneumatic Semi- Automatic Infeed System
Self-Centering 6-Jaw Chuck w/Jaws
CATALOG SPECIFICATIONS:
Drill Diameter, Range 3/16" to 3-1/8"
Straight Shank Diameter, Range 3/16" to 3-1/8"
Point Angle Range 40 to 180+ DEGREES
Motor Horsepower 1 HP/3450 RPM
Electrical System 230-460/3/60
Overall Dimensions, W x D 37" x 49"
Overall Height 64""
Weight Approximately 745 LBS
NOTE: The 382S Combines The Versatility Of the Model 252
With The Large Capacity Of The Model 380. It Can
Grind Most Tools With 1,2,3,4,5,6,7,8, or 10 Flutes.
Drill Points, Step Drills, Taps, Reamers, Countersinks,
And End Mill Ends, Are Easily Ground With Minimal Setup
Changes.
