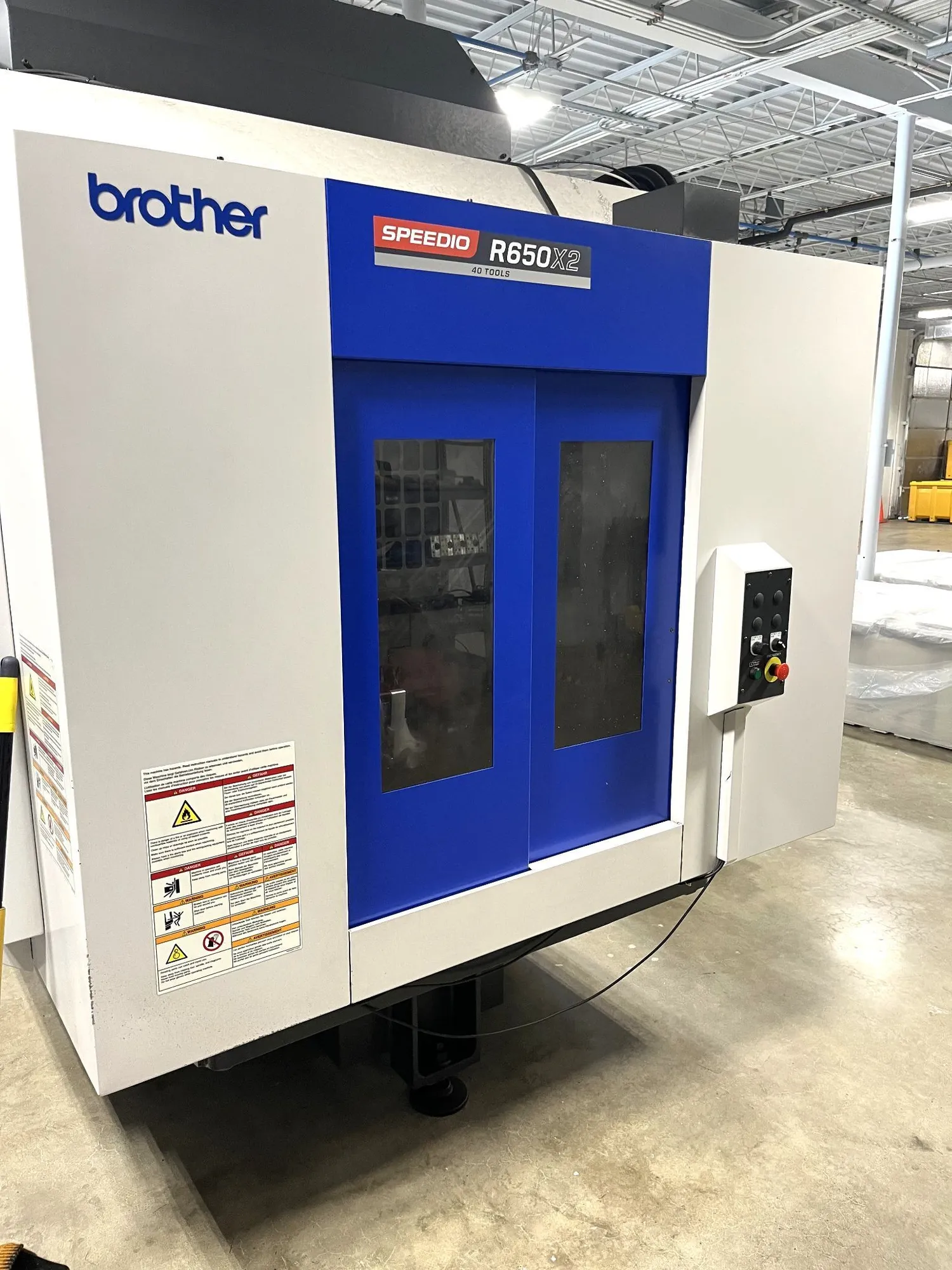

USED 2021 BROTHER SPEEDIO R650X2
Overview
Description
Like New. 250 Hours, (2) Brother T-200A Rotary Tables, 2-Pallet, Blum Probe System, BT-30, 16,000 RPM. This Japanese-made 2021 Brother Speedio R650X2 drill and tap vertical machining center also includes LNS chip conveyor, tool washing system and chip shower station.
Specifications
| TABLE LENGTH | 31.5" | 800.1 mm |
|---|---|---|
| TABLE WIDTH | 15.7" | 398.78 mm |
| NUMBER OF PALLETS | 2 | 2 |
| X-AXIS TRAVEL | 25.6" | 650.24 mm |
| Y-AXIS TRAVEL | 15.7" | 398.78 mm |
| Z-AXIS TRAVEL | 17.1" | 434.34 mm |
| SPINDLE SPEED | 16,000 RPM | 16,000 RPM |
| SPINDLE MOTOR | 9.8 hp | 7.3 kW |
| SPINDLE TAPER | BT 30 | BT 30 |
| TOOL CAPACITY (ATC) | 40 | 40 |
| RAPID TRAVERSE - X AXIS | 1,969 in/min. | 50 m/min. |
| ROTARY OR TRUNNION | Yes | Yes |
Equipped With
BROTHER CNC-C00WX CONTROL
(2) BROTHER T-200A ROTARY TABLES
EXTENDED Z-AXIS TRAVEL (17.1")
HIGH-PRESSURE THROUGH SPINDLE COOLANT (1,000 PSI)
BLUM TC52 TOUCH PROBE
BLUM Z-NANO INFRARED RECEIVER
16,000 RPM SPINDLE
40 TOOL POSITIONS
TOOL WASHING SYSTEM
AUTOMATIC GREASE LUBRICATION SYSTEM
CHIP SHOWER STATION
COOLANT SYSTEM
LNS CHIP CONVEYOR (MH 259)
** MACHINE CUT PRIMARILY ALUMINUM
** AS OF FEBRUARY, 2026 - OPERATING HOURS: 250
** REPLACEMENT COST NEW AS EQUIPPED: $260,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
