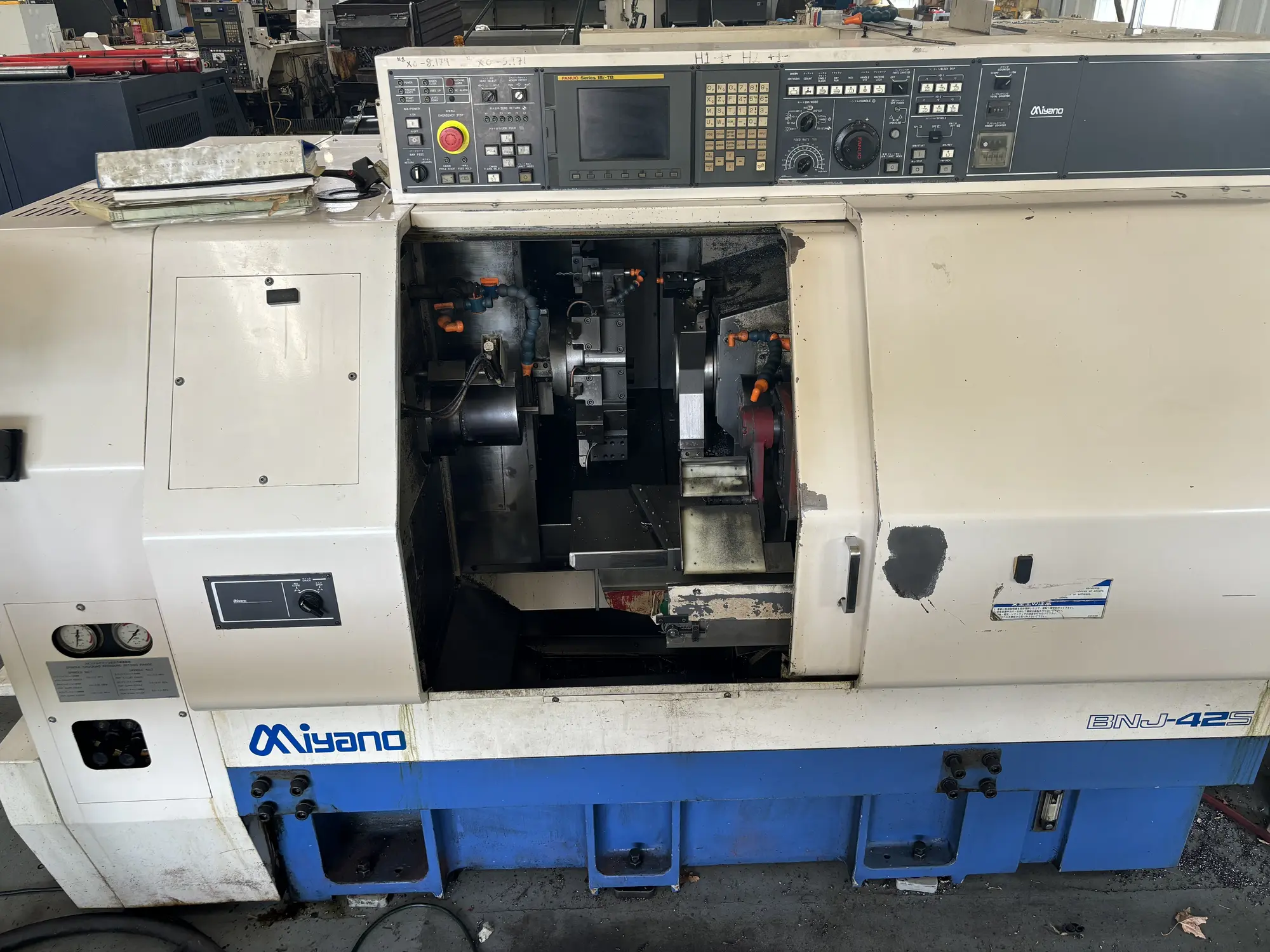

Miyano BNJ-42S CNC Turning Center, New in 2004
| Machining Length | 3.94" | 100.08 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 1.63" | 41.402 mm |
| Power | 10 hp | 7.5 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 5" | 127 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 106" x 59" x 68 | 106" x 59" x 68 |
| Weight | 10,140 | 10,140 |
Work Length: 3.9"
Turning Diameter (Main): 5"
Turning Diameter (Sub): 4"
Bar Capacity: 1.65"
Spindle Speed: 5,000 RPM
Main Motor: 10 HP
Sub Spindle Motor: 5 HP
Turret Capacity: 12
Turret Index Time: .2 seconds
X1-Slide Travel: 6.10"
Z1-Slide Travel: 9.84"
Back Turret Capacity: 6
Turret Index Time: .2 seconds
X2-Slide Travel: 2.75"
Z2-Slide Travel: 20.3"
Fanuc 18i-TB CNC Control
LNS Super Hydrobar Barfeed
Parts Catcher
Parts Conveyor
Chip Conveyor
