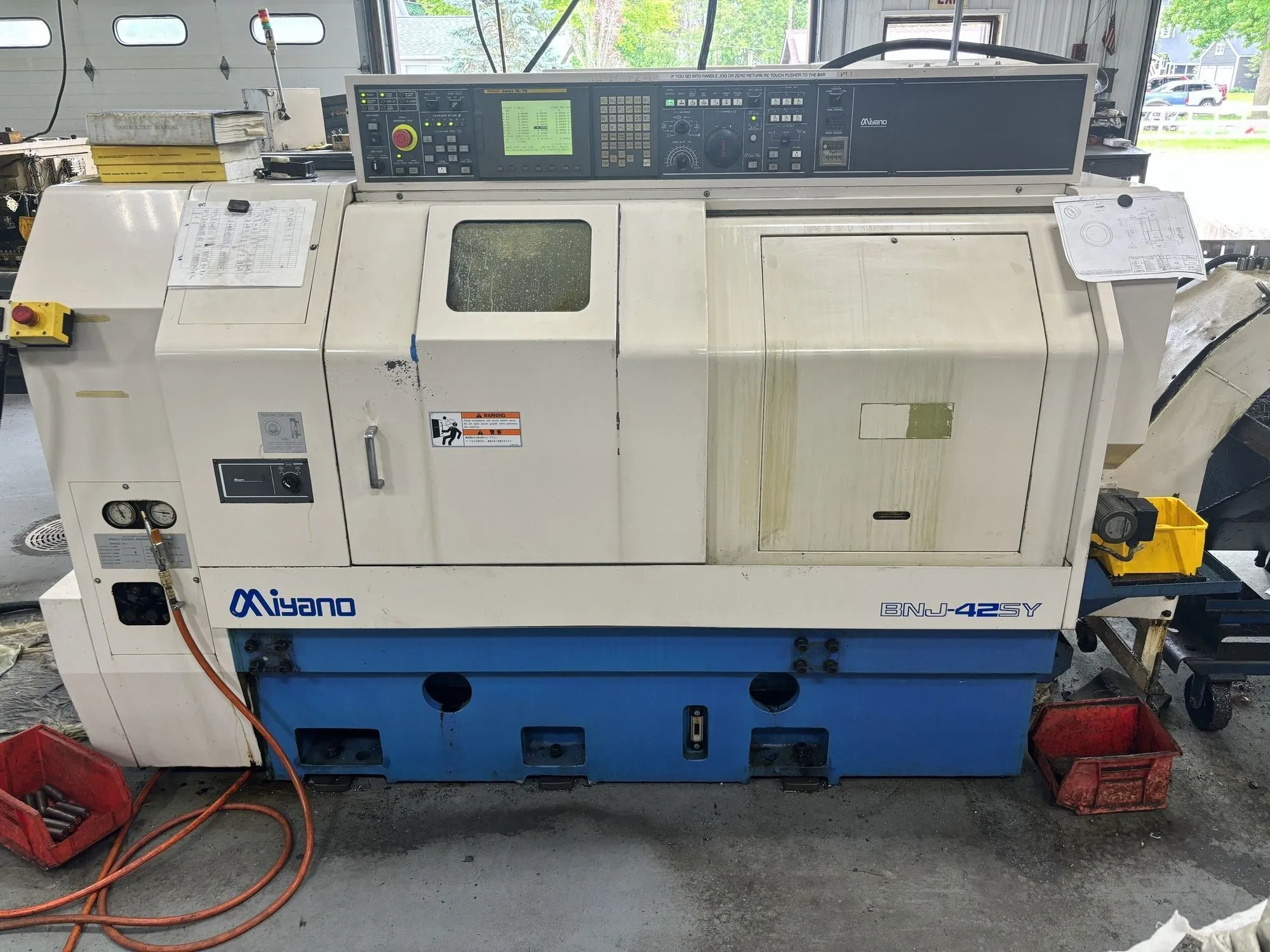

USED 2007 MIYANO BNJ-42SY
Overview
Description
Miyano BNJ-42SY CNC Turning Center, New in 2007
Live Tooling and Sub-spindle
Specifications
| Machining Length | 3.9" | 99.06 mm |
|---|---|---|
| Chuck Size | 5" | 127 mm |
| Bar Capacity | 1.65" | 41.91 mm |
| Power | 14 hp | 10.4 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 106" x 58" x 67" | 106" x 58" x 67" |
| Weight | 10,140 lbs | 10,140 lbs |
General Specifications (L - Left Spindle / R - Right Spindle):
Power Chuck & Size (L/R): 5" / 4"
Bar Capacity: 1.65"
Type of Collet Chuck: Stationary
Turning Length (L/R): 4"/ 3.1"
Spindle Motor (L/R): 14/6.7 HP
Spindle Speed (L/R): 5,000 RPM
Axis Travels:
X1-Axis Travel: 6.10"
X2-Axis Travel: 2.7"
Y1-Axis Travel: +1.18"
Z1-Axis Travel: 9.8"
Z2-Axis Travel: 20.2"
Main Turret
Positions: 12
Indexing Time: 0.2 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo
Back Working Turret
Positions: 6
Turret/Indexing: 0.25 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo
Revolving Tools (Main Turret)
Number of Revolving Stations: 6
Tool Spindle Speed Range: 4,000 RPM
Tool Spindle Driving Motor: AC Servo 3.3 HP
Machining Capacity Drill/Tap: 0.5" / M8 x 1.25
Machine Dimensions: 106" x 58" x 67"
Machine Weight: 10,140 lbs
Equipped With
Hours:
Power On: 45,664
Operating Time: 18,725
Cutting Time: 13,450
Fanuc 18iTB CNC Control
LNS Super Hydrobar Gatling Style Barfeed
Chip Conveyor
Parts Conveyor
