Recently Rebuilt
Wet Base Design
50 HP Motor

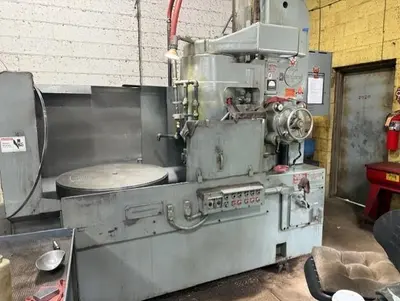

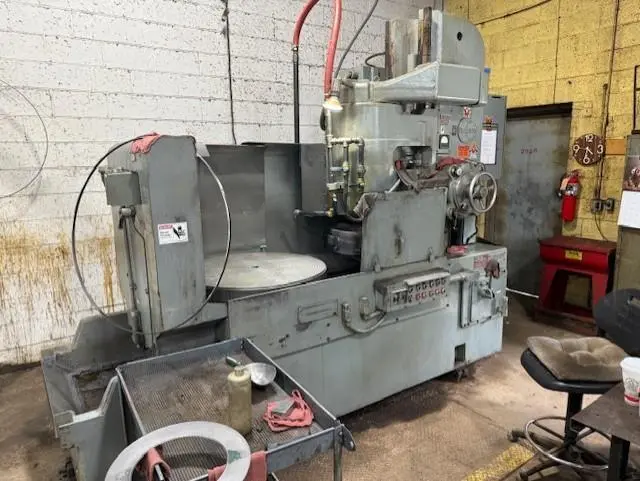

The is an exclusive part of our Surface Grinders (Rotary) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Chuck Dia.: 36"
Spindle (Horz/Vert): vertical
Swing: 38"
Under Wheel: 18"
Grinding Wheel Dia.: 18"
Grinding Wheel Speed RPM: 720
CNC Control: yes
Weight: 14,500 ounces
Table Speeds: (6) 6-33 RPM
Table Motor Horsepower: 50 horsepower
Wet Base Design
Coolant Pump and Piping
Magnetic Chuck Controls

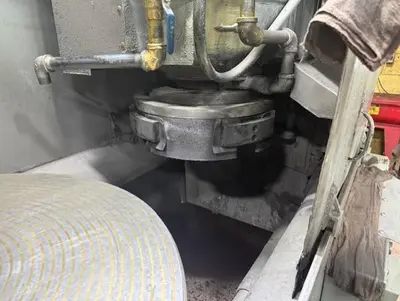

Norton Style segmented Wheel Holder
Mist Collector
Wheel Dresser
Approx .200" Chuck Life
240/480 Volt (Currently at 480)
Recently Rebuilt: 2022
Scope of Work Performed:
Rebuilt, Table Drive Gear Box
Table Drive Transmission
Replaced Base Ways
Scrape Table to Surface Place
Scrape Cup to Table
Scrape Saddle Way Surface to New Ways
Replace Way Wipers
Painted
