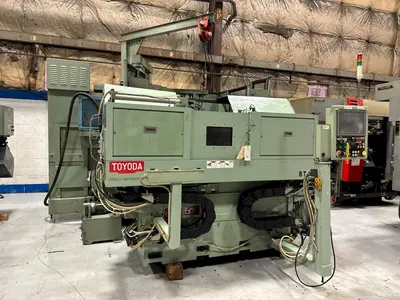

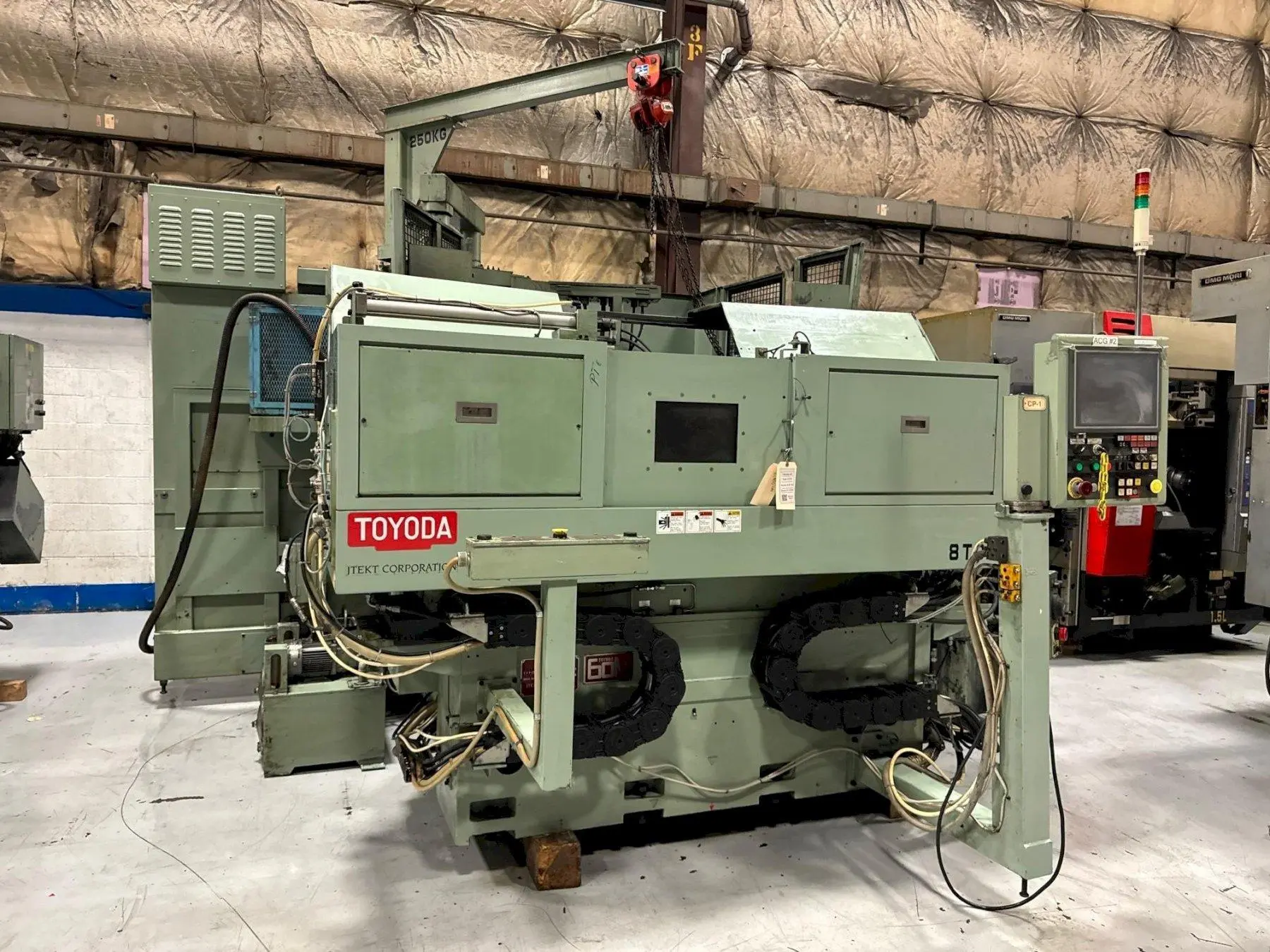

USED 2016 TOYODA GL-6P 32II

- Toyoda GC-70 CNC Control

- 2 Axis Single Point Dresser (Behind the Wheel)

- Form Point Diamond Dresser

- C Axis

- In-Process Gaging

- Lateral Locator

- Magnetic Separator

- Coolant System
The Toyoda GL-6P 32II is an exclusive part of our Cylindrical Grinders (Incl Plain & Angle Head) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

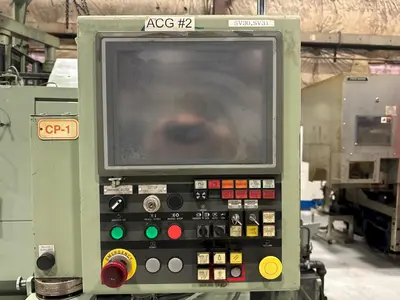

Control Type: Toyoda GC-70
Wheelhead (Angle / Straight / Universal): Straight
Swing: 12.6"
Centers: 12.6"
Grinding Wheel Dia.: 24"
Grinding Wheel Width: 6.3"
Max Load Between Centers: 660 pounds
X-Axis Travel (wheelhead Infeed): 16"
Z-Axis Travel (Table Traverse): 16"
C Axis - (Workhead Rotation): 360,000 Degrees
Workhead Speed: 32-630
Surface Feet Per Minute (SFPM): 11,811
Gauging (Yes/No): yes
Dresser (Yes/No): yes
Lateral Locator: Yes
Workhead (Live / Dead): Dead
Weight: 18,700 pounds

- Toyoda GC-70 CNC Control

- 2 Axis Single Point Dresser (Behind the Wheel)

- Form Point Diamond Dresser

- In-Process Gaging

- Lateral Locator

- Magnetic Separator

- Coolant System
- Tailstock
Options:
Simultaneous Contouring Control (X-Z-C)
Grinding Data Patterns (MAX-64)
Grinding Process Patterns (Max 1,800 Processes)
