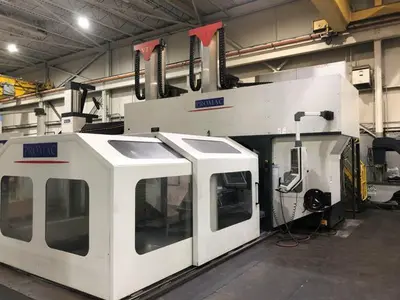

USED 2009 PROMAC ZEPHYR VTT 30

The Promac Zephyr VTT 30 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

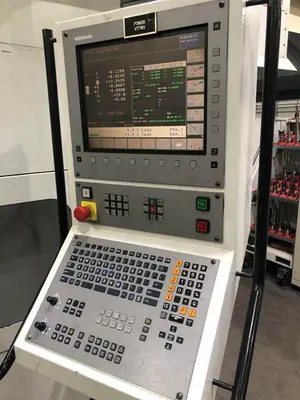

Control Type: Heidenhain iTNC 530
# Axis: 5
Table Size: 118" x 79"
Max Table Load: 55,000 pounds
X-Axis Travel: 137"
Z-Axis Travel: 47"
Main Motor: 73 horsepower

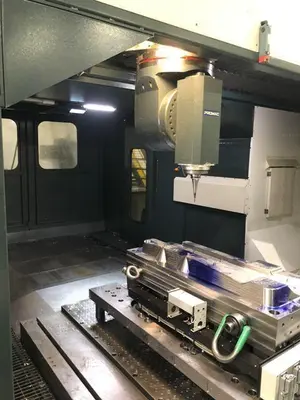

A Axis Travel (Spindle Tilt): +/- 110 Deg
C Axis Travel (Spindle Head Rotation): 360 Deg
1st ATC Capacity: 40 (HSK 63)
2nd ATC Capacity: 20 (HSK 100)
Spindle Speed -5 Axis HSK63 Head: 20,000 RPM
Spindle Speed -HSK 100 Roughing Head: 8,000 RPM

(2) Chip Conveyors
Probe reader with Software
T Slotted Table
Sliding Door Enclosure
Remote Jog Handle
Chiller
