Simultaneous 5-Axis CNC Machining
Mazatrol Matrix 2 CNC Control
Vertical/Horizontal/Milling
Linear Scales on X,Y,Z Axes
High-Pressure Coolant Thru Spindle
Renishaw Probing
(2) 39.4" Pallets w/Pallet Changer

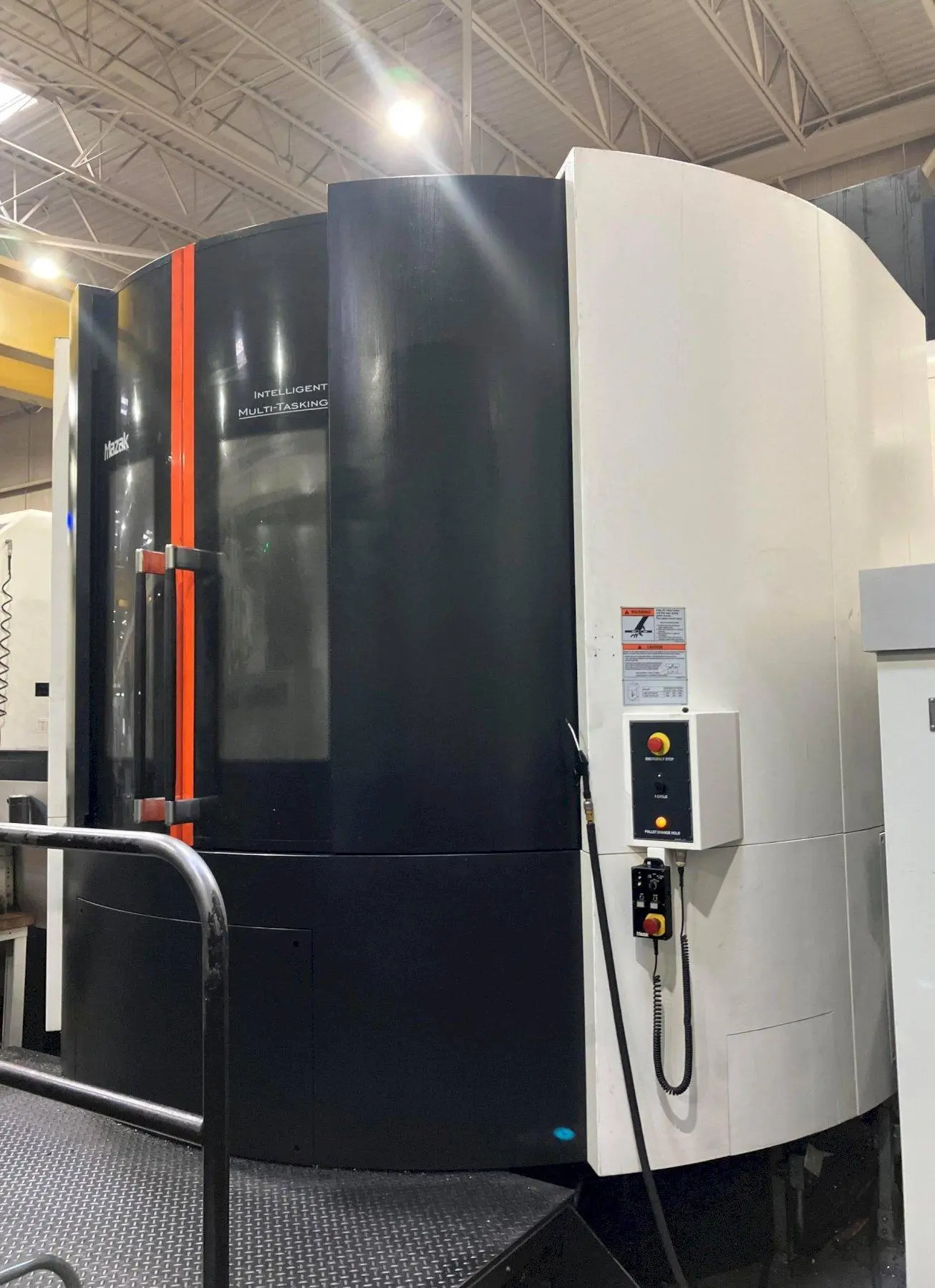

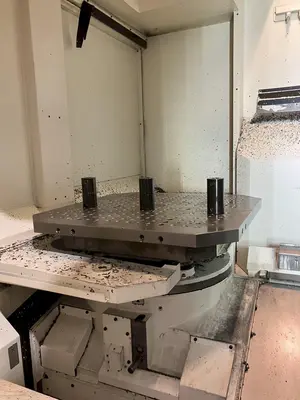

The Mazak Vortex e-1060V/8 is an exclusive part of our Machining Centers, Vertical, (5-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
CNC Control: yes
Control Type: Mazatrol Matrix 2
# Axis: 5
Pallet-W: 39.4"
Pallet-L: 39.4"
Max Workpiece Weight: 4,784 pounds
X Axis Travel: 78.32"
Y Axis Travel: 41.73"
Z Axis Travel: 52.95"
B Axis Indexing Range: -30° to +120°
C Axis Index: 360 Degrees (0.0001 Deg Increments)
Spindle Taper: CAT 50
Spindle Speed: 10,000 rpm - Milling Spindle
Spindle Motor (HP): 50 horsepower

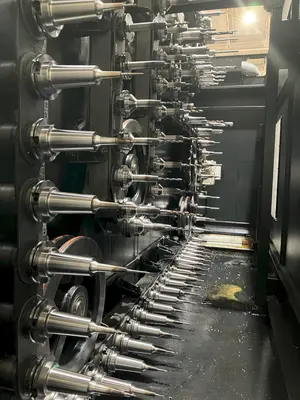

ATC Stations: 120
Weight: 85,000 pounds

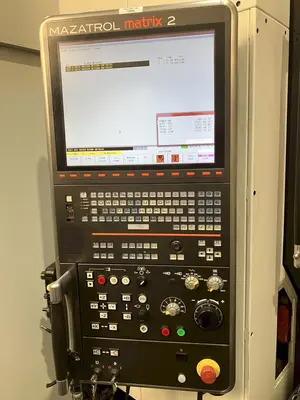

- Mazatrol Matrix 2 CNC Conversational Control w/15" Display

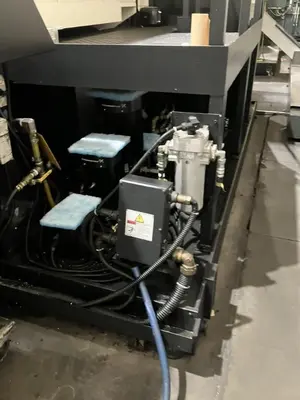

- 1000 psi High Pressure Coolant Thru Spindle
- Mazak Superflow V8M Unit
- Manual pulse generator (Detachable)
- Two pallet changer
- Automatic Tool Presetter
- ConSep Chip Conveyor
- Coolant washdown at operator and pallet load stations
- Heidenhein linear scales X, Y, Z
- Spindle Air Blow
- Power indexing at work load station
- Renishaw NC4 laser tool measurement
- Renishaw H/V OMP60 probe
- Hydraulic pressure interlock
- Auto power on/off/warm-up
- 8MB program storage
- Prep for LAN and Modem
- Mill spindle synchronous tapping
- Background tool path check
- Tool breakage detection
- Adaptive feedrate control
- Tool life monitoring
- Renishaw advanced probe macros / Inspection plus
- 3D coordinate rotation G68.2
- EIA simultaneous 5-axis
- Tool tip point control 5-axis
- Simultaneous 5-axis tool radius comp.
- G00 slope constant
- 2D software shape continuous
- Shape continuous rotary axis
- Inch / Metric conversion
- Cylindrical G07
- Polar coordinate G12
- Mazacc-3D high speed software package
- High smoothing control
- Additional EIA / ISO function
- All available manuals
- CAT50 Tooling Package
