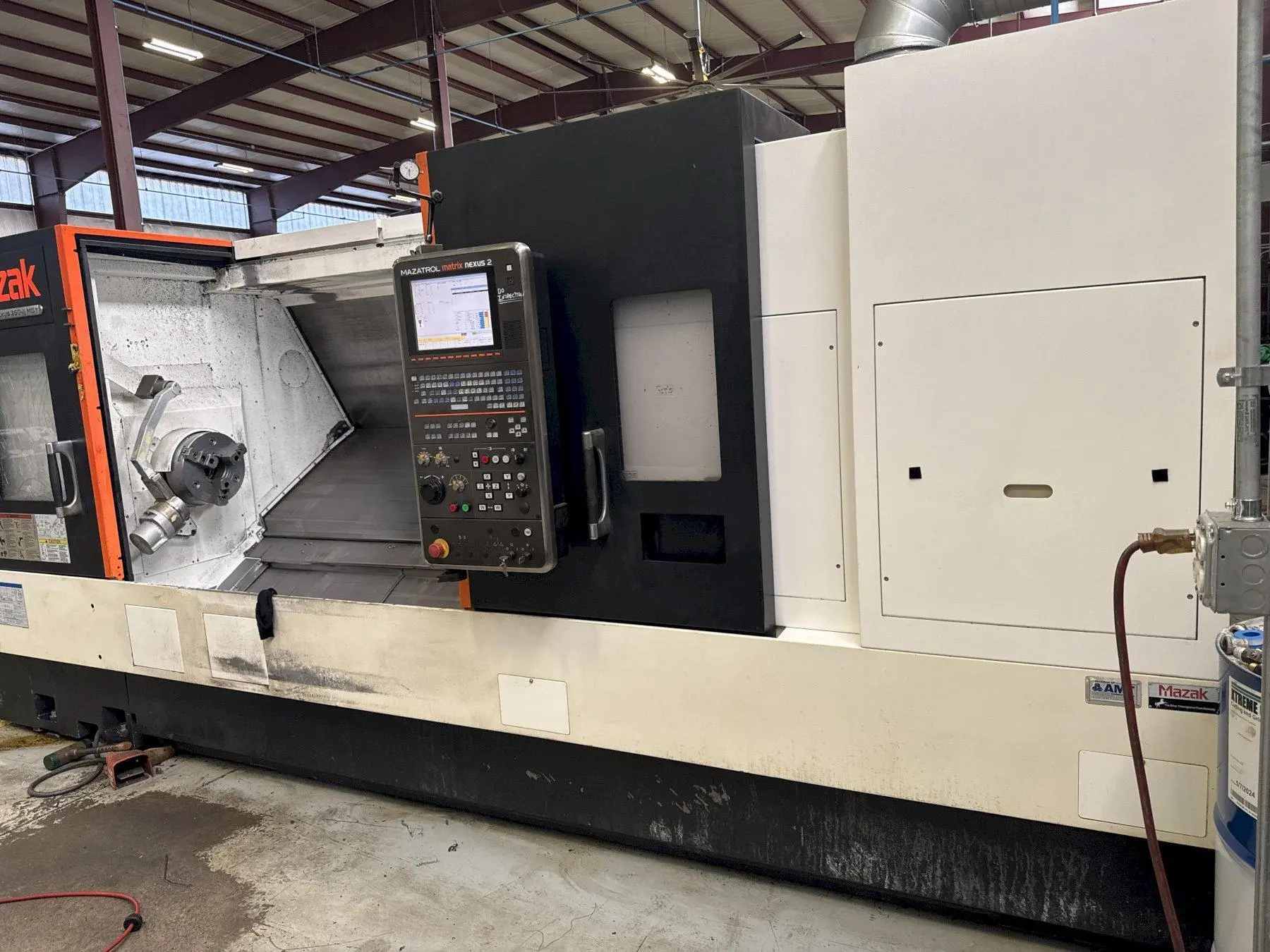

USED 2014 MAZAK QTN-350II MSY

Mazatrol Matrix Nexus 2 CNC Control

60" Center Distance

12" and 10" Chucks

Live Tooling

Y Axis | Sub Spindle
The Mazak QTN-350II MSY is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

Control Type: Mazatrol Matrix Nexus 2
Swing: 32.68"
Turning Diameter: 16.6"
Center Distance: 62.2"
Chuck Size: 12"
Bar Capacity: 4.05"
X Axis Travel: 10.75"
Y Axis Travel: 6.90"
Z Axis Travel: 62.25"
C Axis Index: 0.001
Spindle Speed: 3,500 rpm
Main Motor: 40 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 4,000 rpm
Sub Spindle: yes
Sub Spindle Chuck: 10"
Sub Spindle Bar Capacity: 2.55"
Sub Spindle Motor (HP): 25

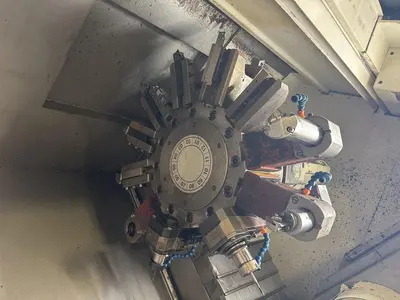

Turret Capacity: 12

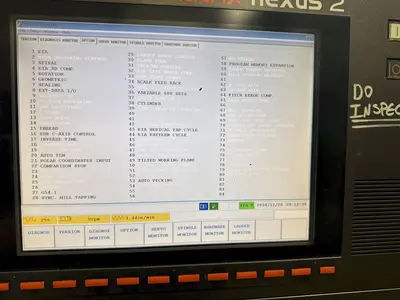

- Mazatrol Matrix Nexus 2 CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Misc Live and Static Holders
- EIA/ISO Input Function
- Mazak Tapping Boring Tornado
- USB Interface
- Milling Spindle rigid tapping
- C axis 0.0001 Deg
- 213 psi High Power Coolant
- Auto Tool Length Measurement
- Scale Feedback
