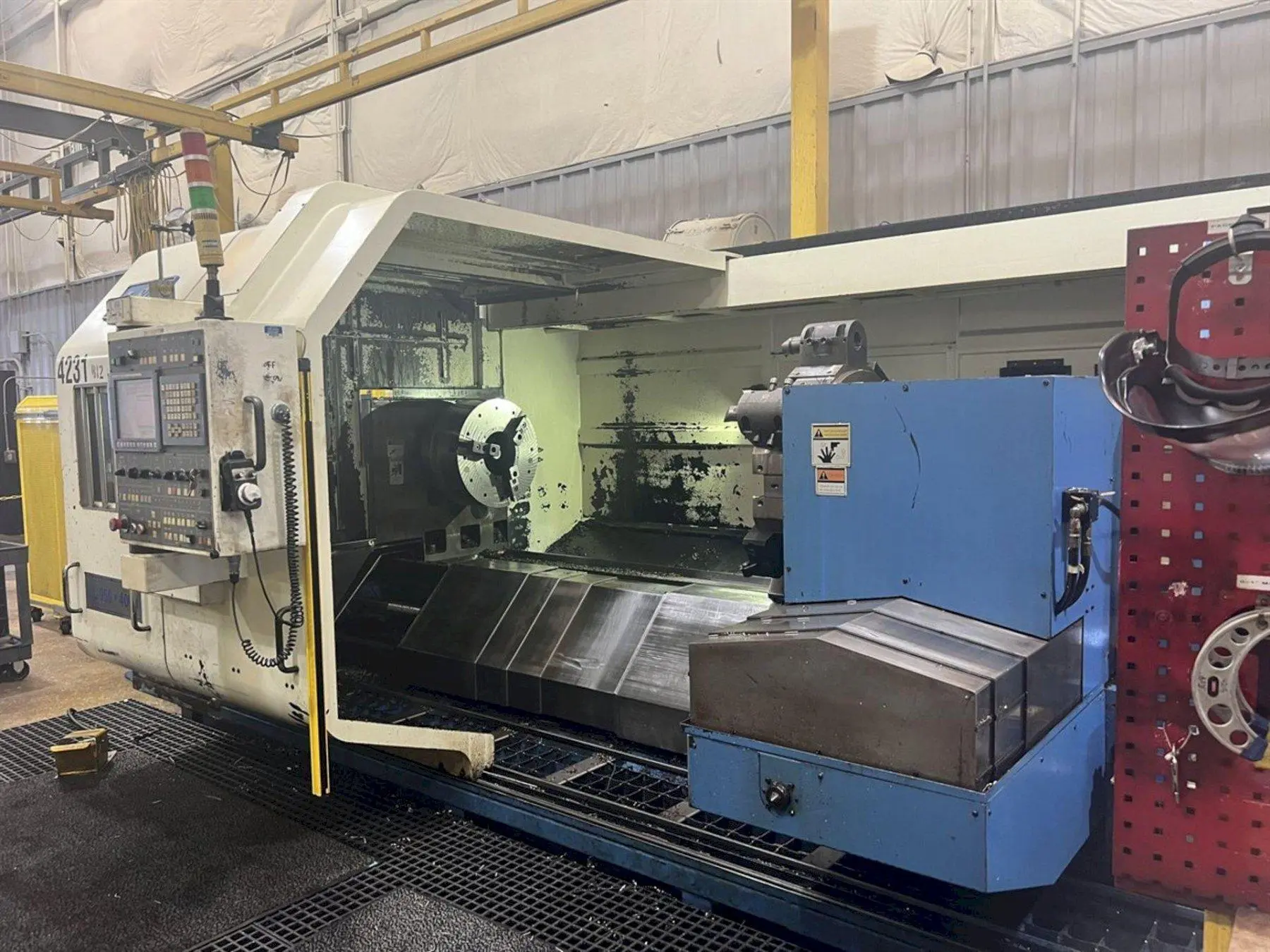

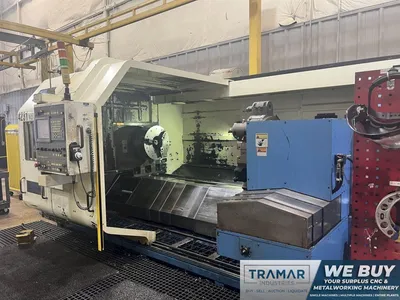

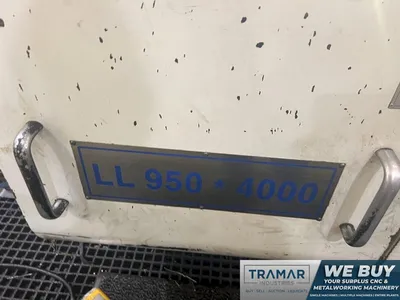

USED 2009 L&L LL950-4000

Fanuc 0i-TD CNC Control

157" Center Distance

Hydraulic Steady Rest - 5" to 16" capacity

Tailstock
The L&l LL950-4000 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

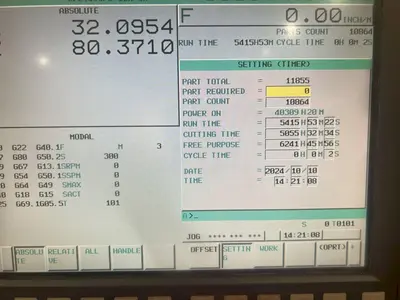

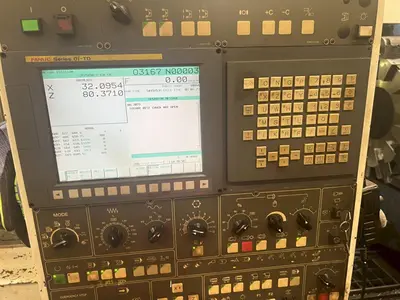

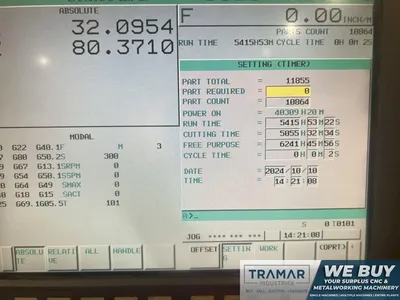

Control Type: Fanuc 0i-TD
# Axis: 2
Swing: 49.21"
Turning Diameter: 37.4"
Center Distance: 157"

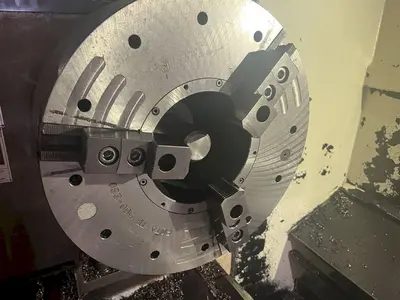

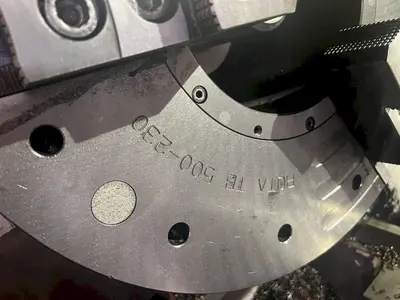

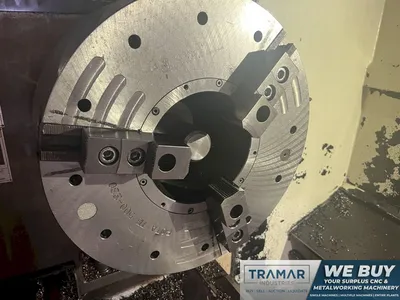

Chuck Size: 22" - Front

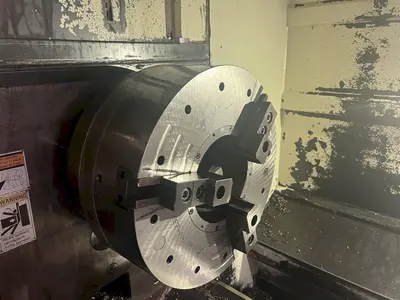

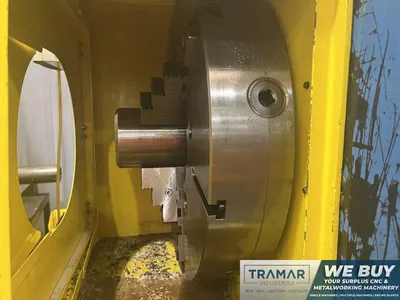

Chuck Size: 24" - Rear
Bar Capacity: 9"
X-Axis Travel: 18.89"
Z-Axis Travel: 157"
Spindle Nose: A2-15

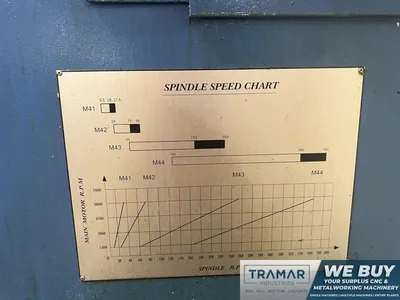

Spindle Speed: 450 rpm
Main Motor: 40/50 hp

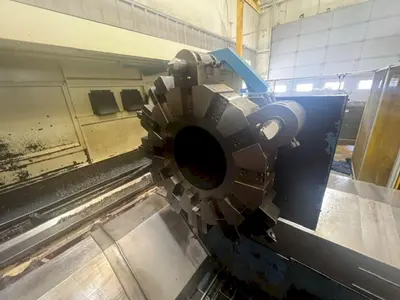

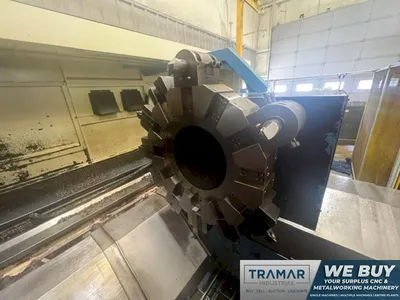

Turret Capacity: 12
Steady Rest: yes

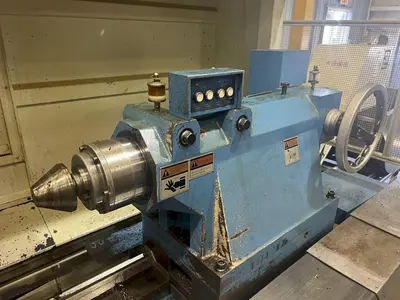

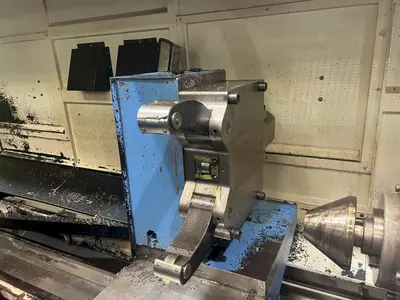

Tailstock (Yes/No): yes
Live Tooling: no
Y Axis (Yes / No): no
Sub Spindle: no
Machine Dimensions: 255" x 136" x 94"
Machine Weight: 44,100 pounds

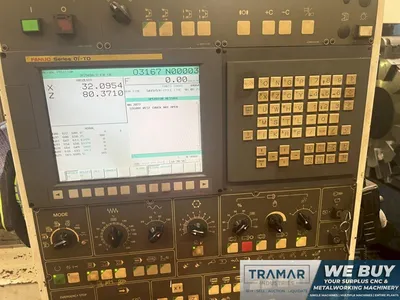

- Fanuc 0i-TD CNC Control

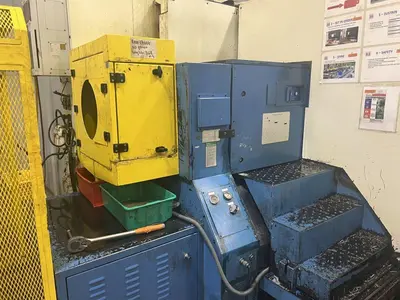

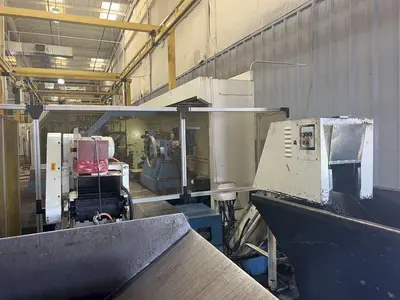

- Dual Chip Conveyor

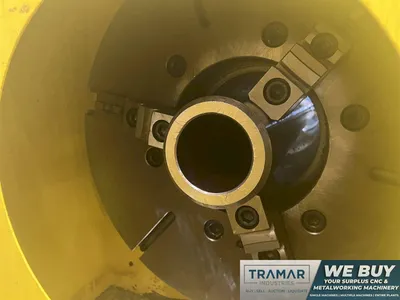

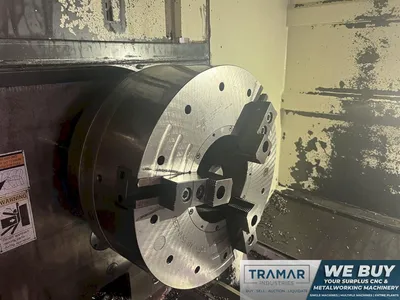

- Front & Rear Chucks

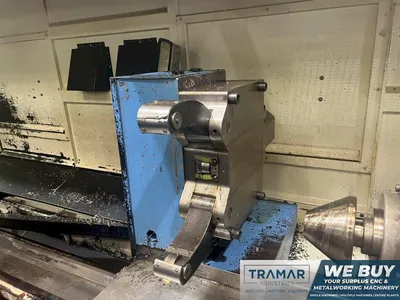

- Hydraulic Steady Rest 5"-16" Capacity

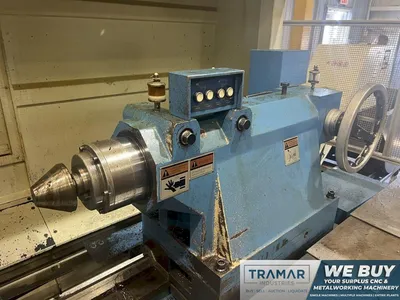

- Tailstock
