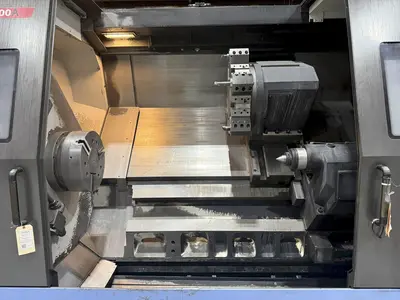

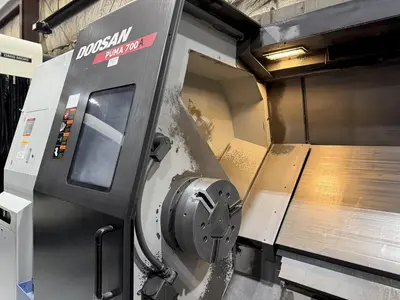

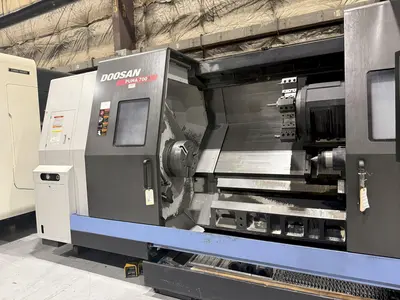

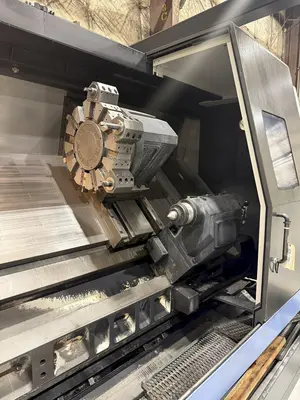

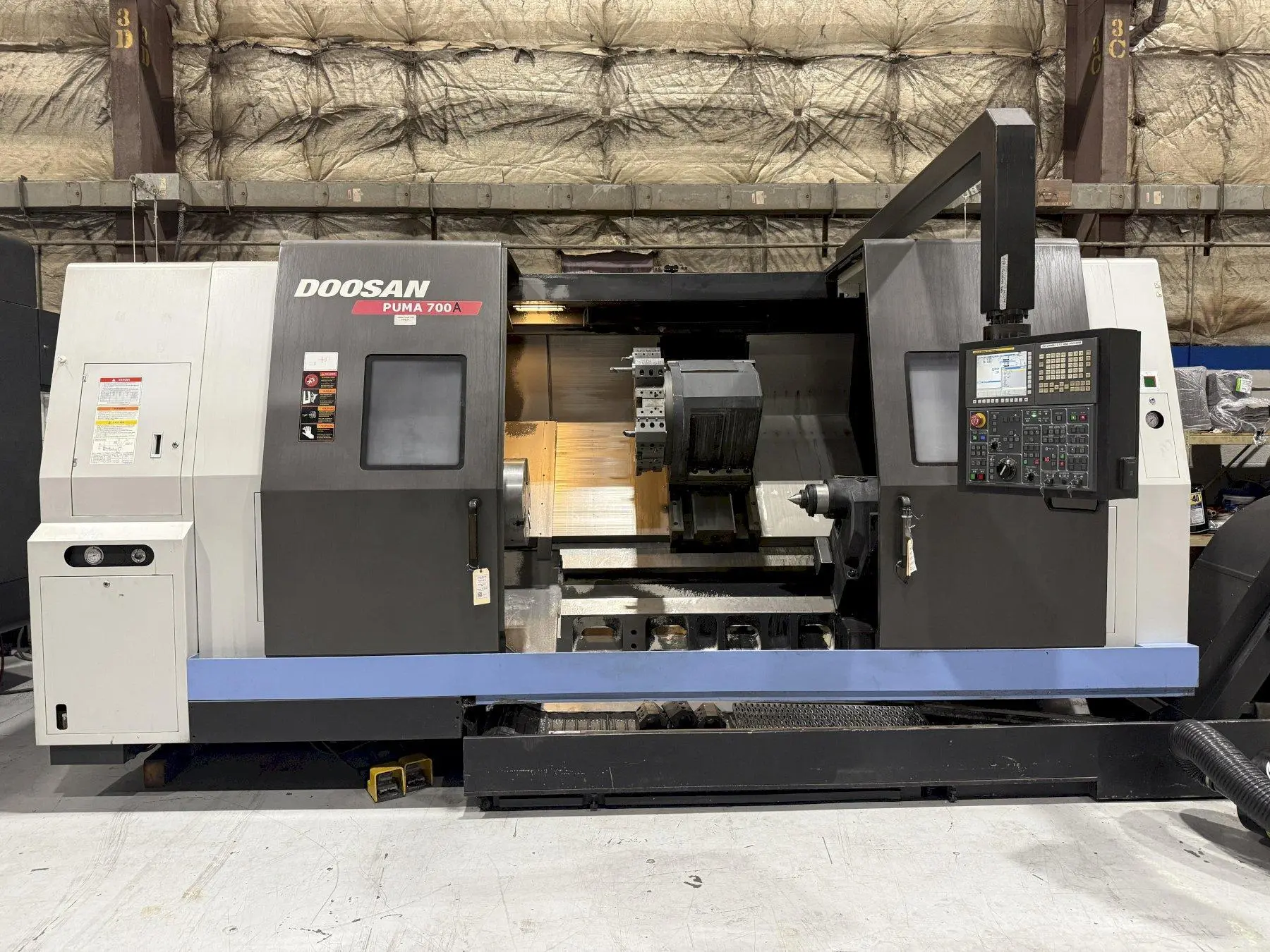

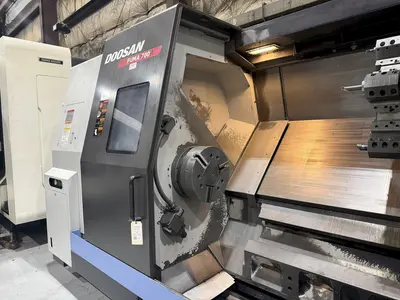

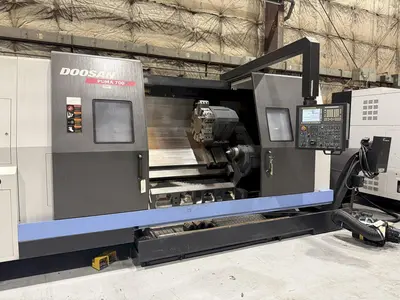

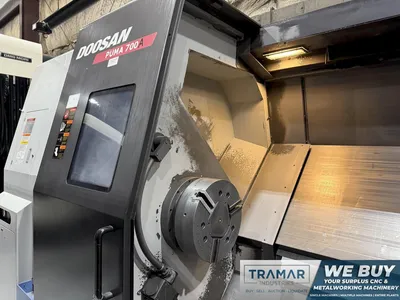

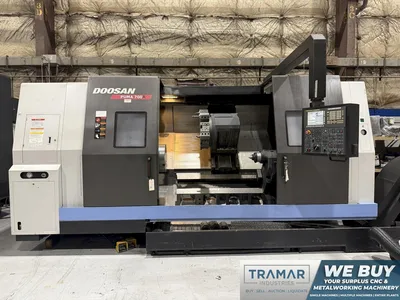

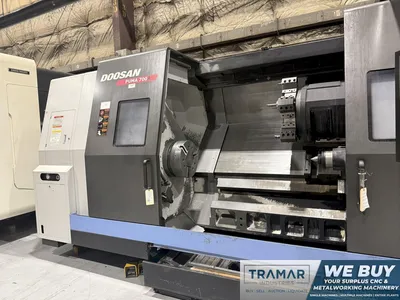

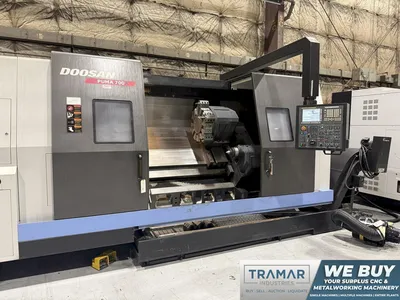

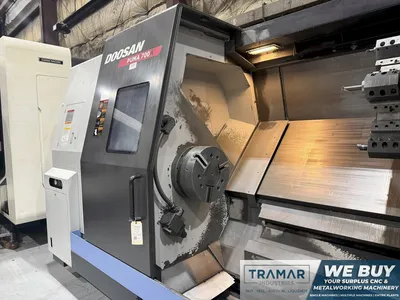

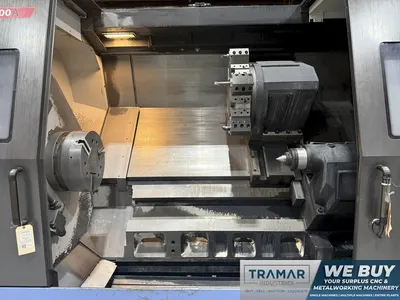

USED 2013 DOOSAN PUMA 700A
Overview

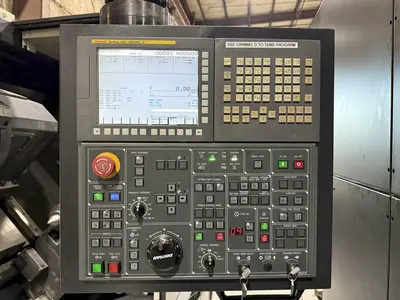

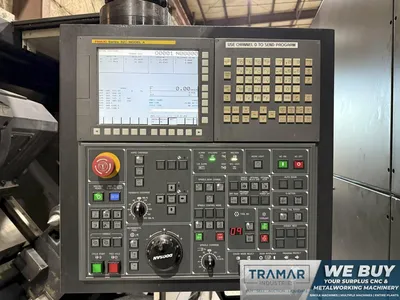

Fanuc Series 32i-Model A CNC Control

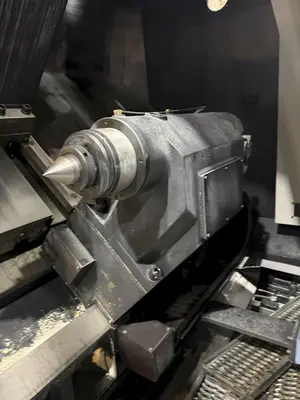

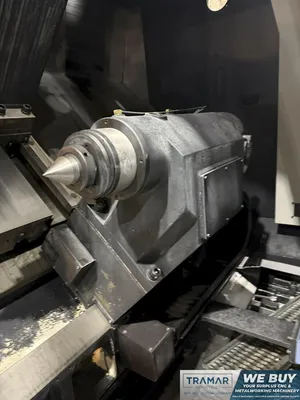

Hydraulic Tailstock

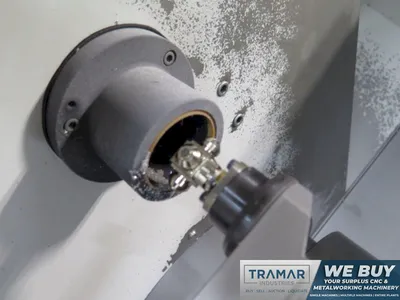

Tool Presetter

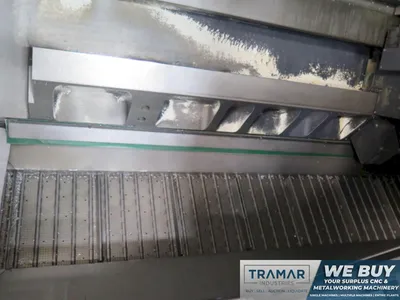

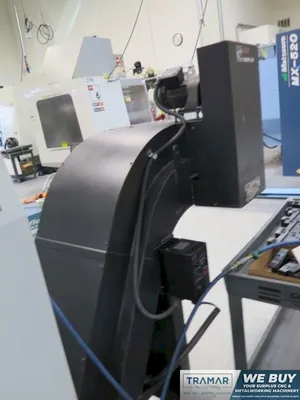

Chip Conveyor
The Doosan Puma 700A is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specs
CNC Control: yes
Control Type: Fanuc Series 32i-Model A
# Axis: 2
Swing: 40.6"
Turning Diameter: 35.4"
Center Distance: 63"

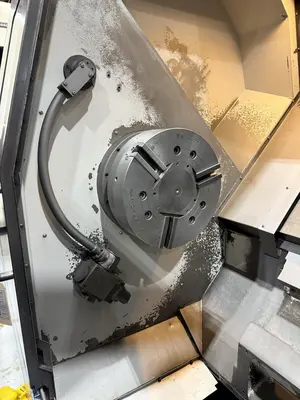

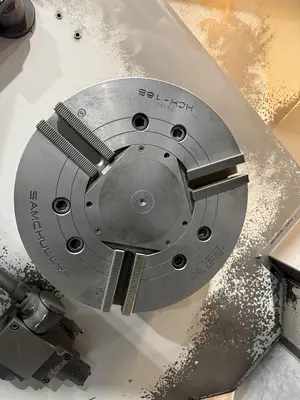

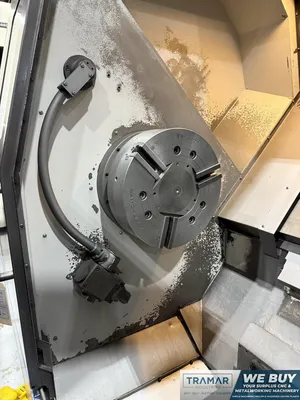

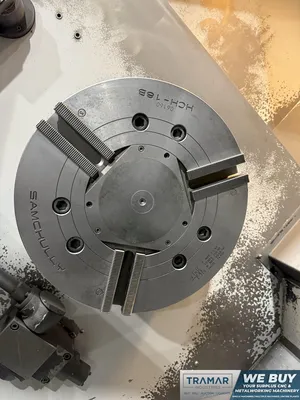

Chuck Size: 18"
Bar Capacity: 6.5"
X-Axis Travel: 18.5"
Z-Axis Travel: 65"
Rapid Traverse (X/Z): 472/397 ipm
Spindle Nose: A1-15
Spindle Speed: 1,500 rpm
Main Motor: 60 hp

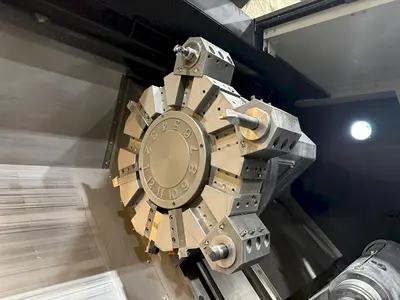

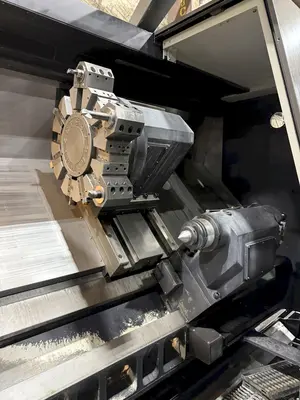

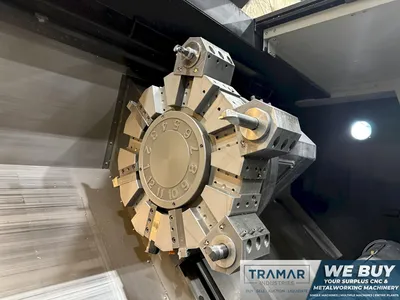

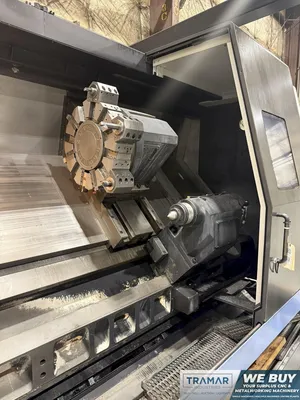

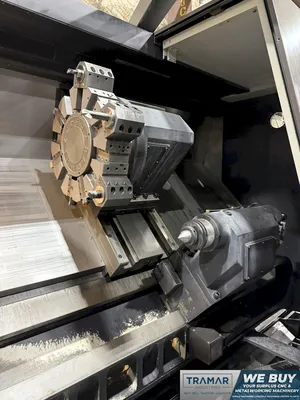

Turret Capacity: 12
Tailstock (Yes/No): yes
Live Tooling: no
Y Axis (Yes / No): no
Sub Spindle: no
Machine Dimensions: 227" x 124" x 110"
Machine Weight: 37,000 pounds
Equipped With
- Fanuc Series 32i-Model A CNC Control
- Chip Conveyor
- Coolant Tank
- Tailstock
- Tool Presetter
