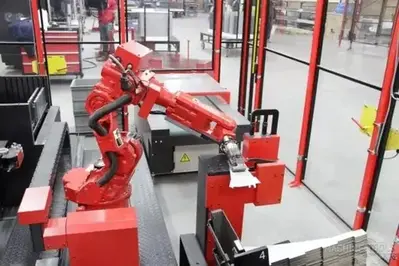

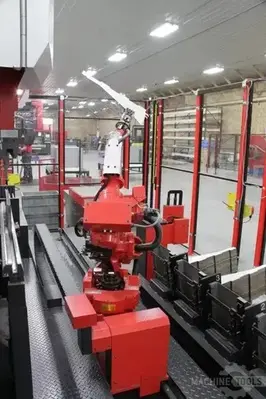

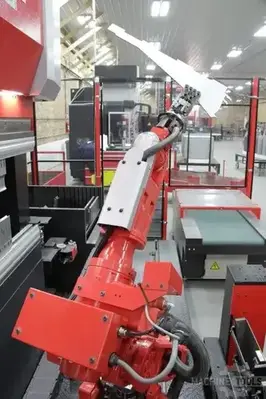

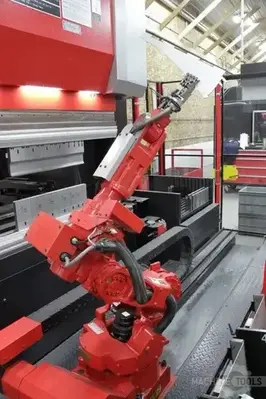

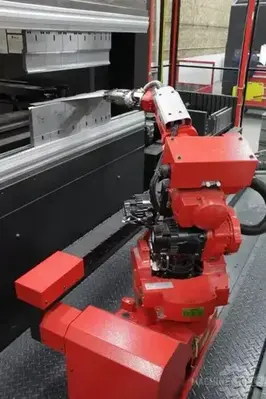

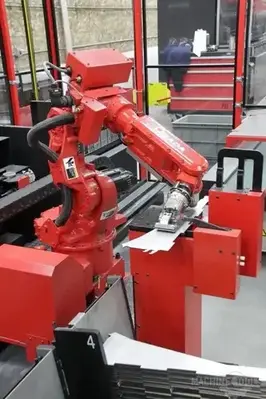

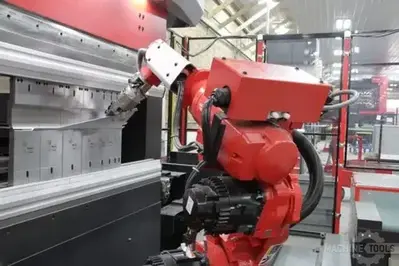

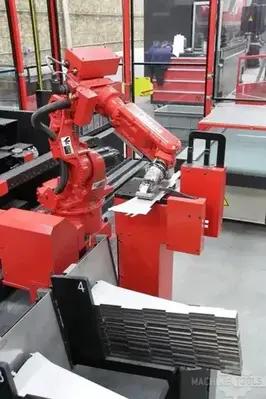

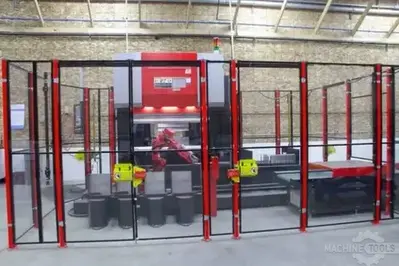

67 Ton x 4.5' Hydraulic Press Brake w/ Robot
| Tonnage | 67 T | 60.781 t |
| Overall Length | 53.1" | 1.3 m |
| Between Housings | 39.8" | 1 m |
Request a Quote
Add to Cart
Capacity: 67 Ton
Overall Length of Bed: 4.5'
Control: Amada AMNC 3i CNC
Distance Between Housings: 53.1"
Stroke: 6"
Open Height: 16.5"
Approach/Return Speed: 8.7 IPS
Bend Speed: 1 IPS
Robot Carriage Axis: 120"
Max Reach P-Point: 39.25"
Max. Part Weight on Robot: 22 Lbs
Max Tool Length/Tool Holder Length: 31.5"/49.2"
Floor Space: 211" x 154" x 105"
Weight: 8,200 Lbs
3 Gripper Station / Seamless Tool Change To Production: 7-Axis Potentiometer Backgauge With Side Gauge System
High-Rigidity Frame for Large Open Height and Stroke: Load/Unload to Drop Box or Conveyor

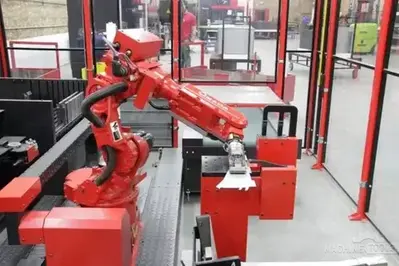

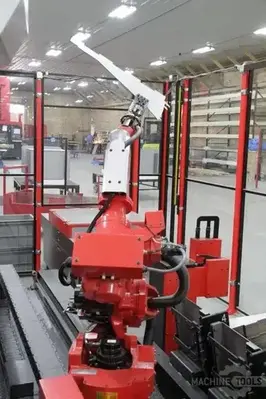

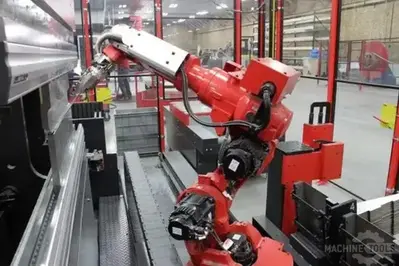

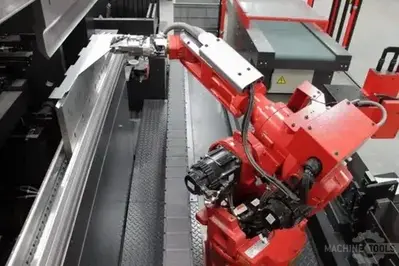

Robotic Tool Changer: Yaskawa MH6S-10 High Precision 7-Axis Bending Robot
Dual Electric Servo Power Drive
