USED NOVISA FRP-80
Overview

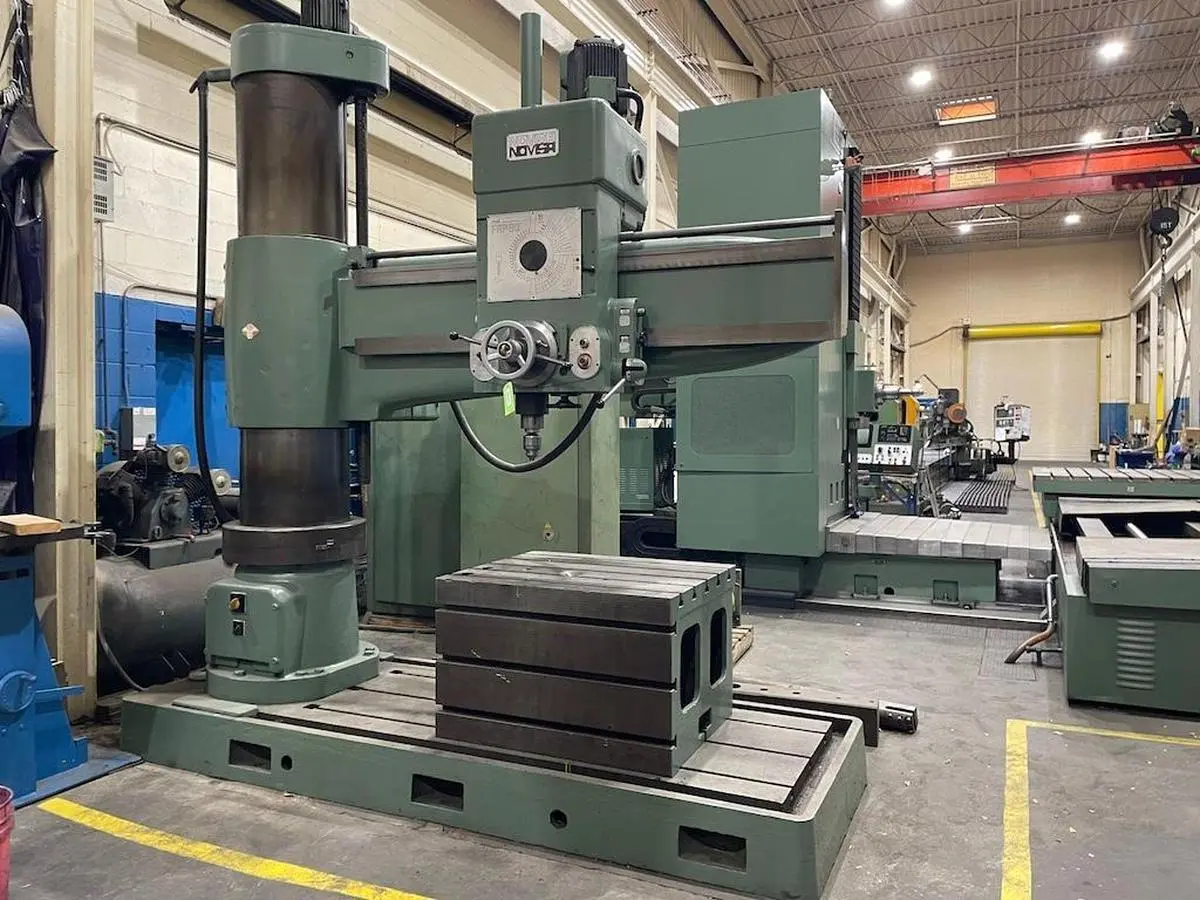

The Novisa FRP-80 is a robust radial drilling machine designed for large and heavy workpieces. Featuring a heavy-duty round column, and a large T-slot cast base,along with T-Slot Box table (25" x 39") this drill offers excellent reach, rigidity, and versatility for fabrication and maintenance shops. With power arm elevation, an adjustable headstock, and standard drill controls.
Specs
Column Diameter: 19.5"
Max. Distance between Spindle Center and Column Center: 86.75"
Min. Distance between Spindle Center and Column Center: 23.75"
Max Distance between Spindle center and column face: 77"
Min Distance between Spindle center and column face: 14"
Column Height: 19.5"
Max. Height from spindle head to base: 143.25"
Base Floor Space: 123"x43.5"
Base Height: 10"
Spindle head longitudinal travel: 61.5"
Vertical Arm Travel: 46"
Table Top: 39.25" x 31.5"
Table Side: 39.25" x 24.75"
Spindle Feed Range: 0.2 to 0.5 mm
Spindle Speed Range: 10-1400 RPM
Main Motor: 10 HP
Arm Elevating Motor: 5.5 HP
Input Voltage: 220/380V
Overall Dimensions: 123" x 43.5" x 143.25"
Equipped With
-Adjustable Headstock
-34.5" x 84" T-Slot Base

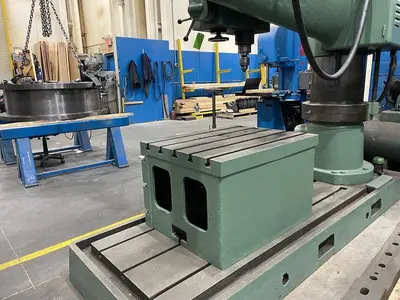

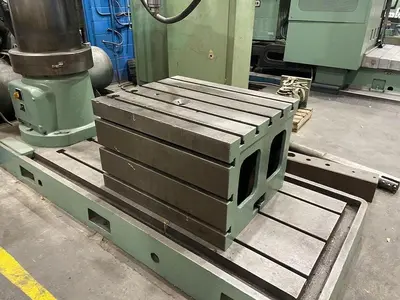

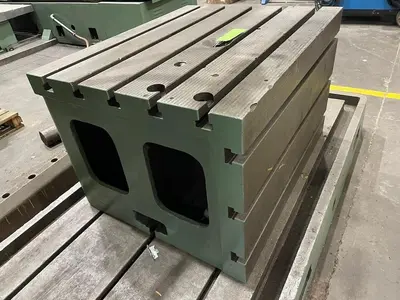

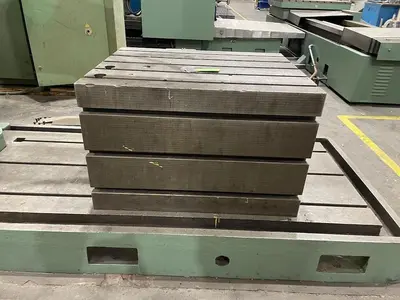

-Dual Face T-Slot table
-Hydraulic Head Clamping
