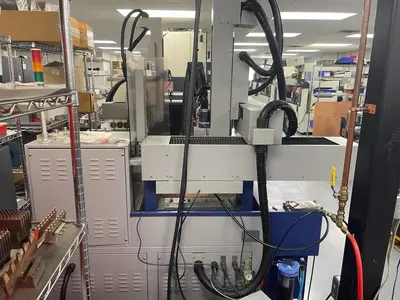

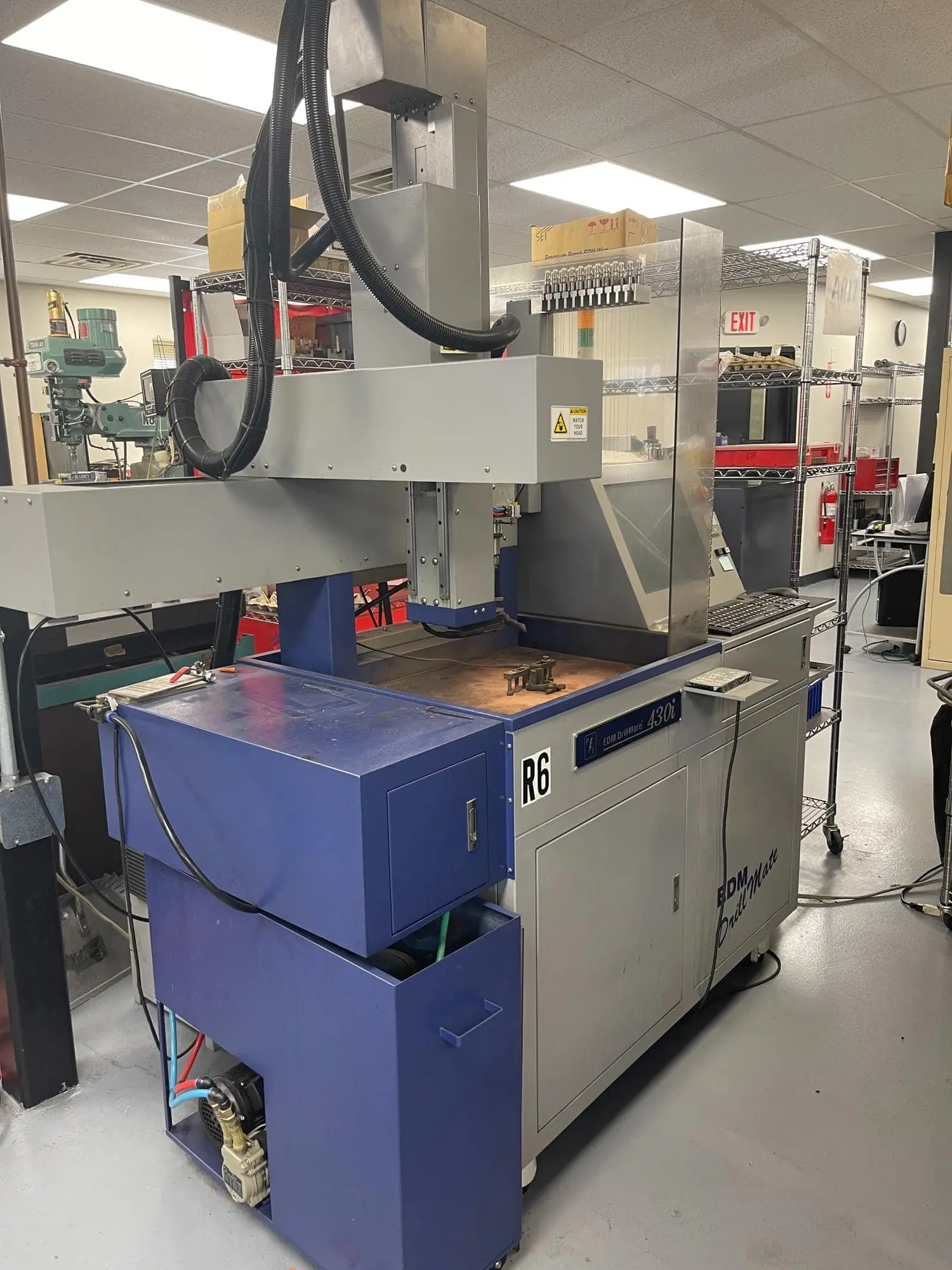

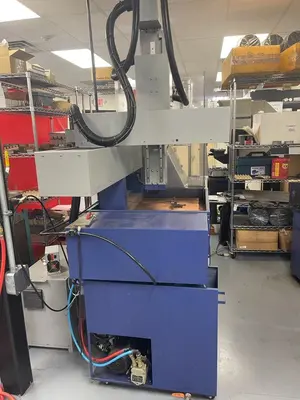

USED 2012 PERSEO-ERIE 430I DRILLMATE

X-Axis Travel: 21″
Y-Axis Travel: 12″
Z-Axis Travel: 25.6″
W-Axis Power Backslide: 11.3″
Electrode Size: 0.1-3.0 mm
Table Size: 23.5″ x 17.25″
Table Travel: 21″ x 12″
Work Tank Size: 27.25″ x 19.25″
Min. Ram Height to Table: 1″
Electro-Guide Travel: 15.5″
Max. Workpiece Weight: 675 lbs
Max. Workpiece Height: 15.5″
Pulse On/Off Time Settings: 0-100%
Peak Current Selections: 10 Steps
Electrode Spindle Speeds: 0-200 RPM
Capacitors: 5 Steps
Machine Size (LxWxH): 72″ x 48″ x 96″
Machine Weight: 3,000 lbs
Equipped With:
PC Based CNC Controller
De-Ionized Water Filtration System
15 Gallon Dielectric System
Transformer
22 Station Tool Capacity
