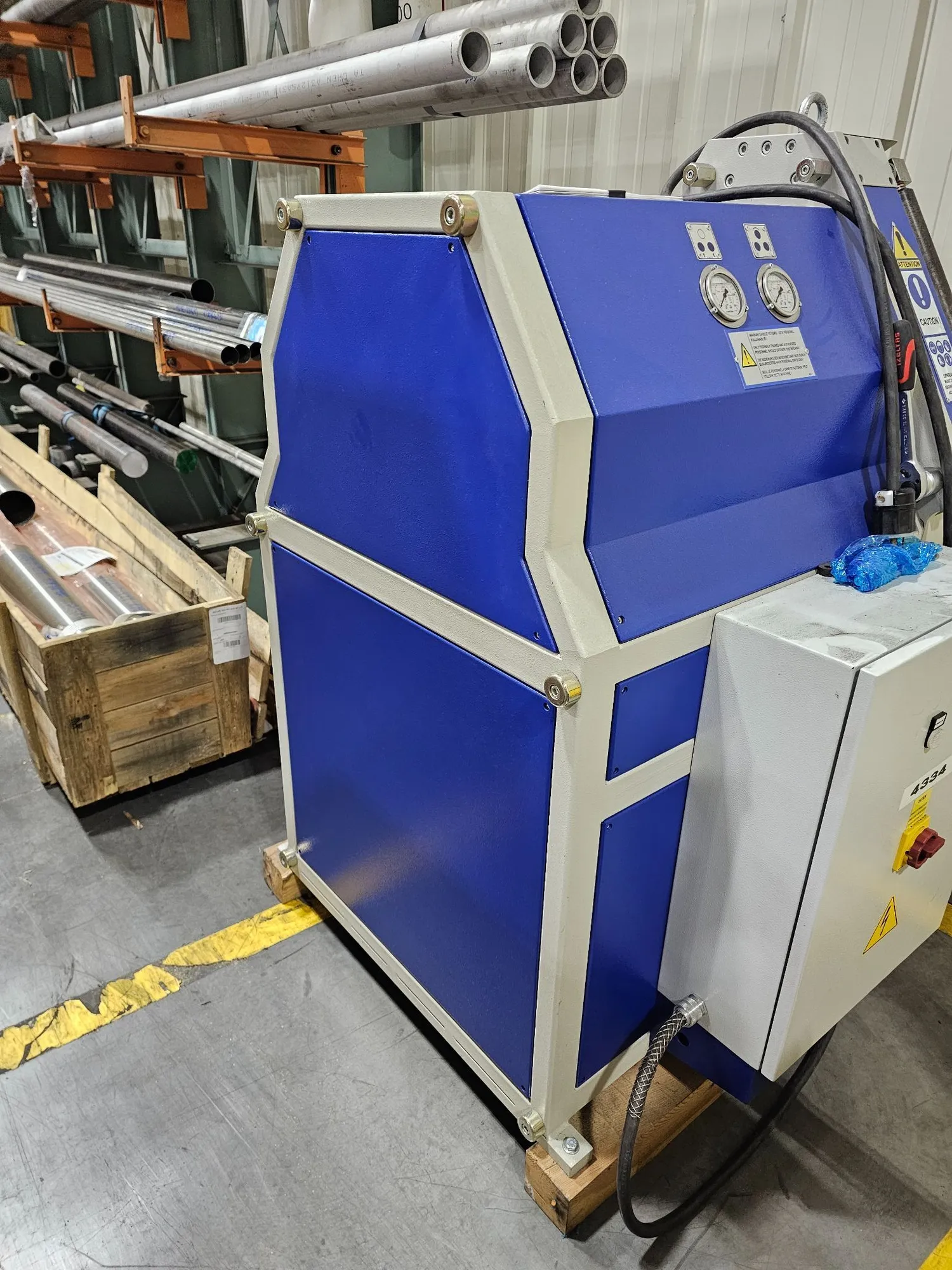

NEW 2025 BENDMAK Pro 60
Overview
Description
BENDMAK Pro 60 Tube Bender, 2025 model, brand new and ready to enhance your metalworking projects. Perfect for precision and efficiency in tube bending. Act now to add this state-of-the-art equipment to your workshop.
Specifications
| Capacity | 2" | 50.8 mm |
|---|---|---|
| Dimensions | 4.6 x 4.75 x 3.12 ft | 4.6 x 4.75 x 3.12 ft |
| Weight | 2,140 Lbs | 2,140 Lbs |
PRO 60 Section Bending Machine
✓
Machine body is steel (ST-52) construction
✓
On PRO 60 rolls are driven by a hydraulic motor+planetry gearbox and gears
✓
Shafts made of special steel, hardened and grounded
✓
Guide rolls are in one direction manually adjustable
✓
One set standard rolls
✓
Manual lubrication
✓
Lower rolls hydraulic moveable up and down
✓
Digital display for lower rolls
✓
Separate and moveable control panel
✓
Horizontal & vertical working
✓
Equipped With
SPECIFICATIONS
TECHNICAL DETAILS FOR PRO 60
Roll Diameter Ø
IN
6.97”
Shaft Ø
IN
2.36” / 2.36”
Bending Speed
FT/min
21
Motor Power
HP
5.4
Length
FT
4.6’
Height
FT
4.76’
Width
FT
3.12’
Weight
LBS
2,140
*The dimensions can be changed according to the position of hydraulic tank.
*Data based upon steel 240 N/mm2 yield point.
*Pictures shown in this offer are just for demonstration, might be with or without optional equipments
