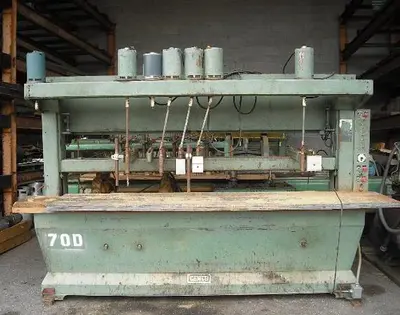

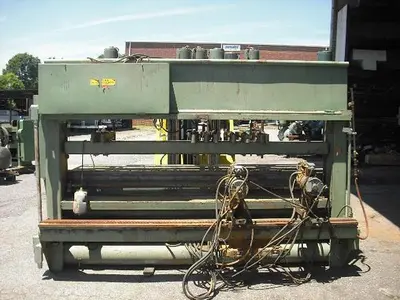

CEMCO 10 FT MULTI-SPINDLE VERTICAL AND HORIZONTAL BORING MACHINE

S/N:NA, (440/60/3 electrics), S-4190
General Specifications::
- (6) 1-1/2 HP, 1,725 RPM, 220/440/60/3 direct drive spindle motors
- 120” x 15” total boring area, (head carriage moves to stationary work table)
- 120" x 24" retro-fitted wood table top
- (3) straight-shank ball bearing type spindles, (1-1/2" min. center capability)

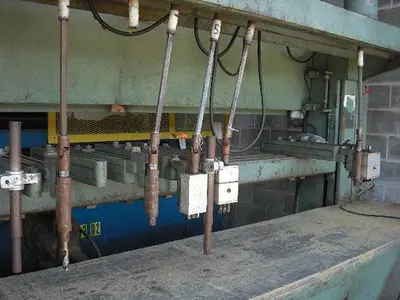

- (1) 3-spindle fixed centered boring head with 1-1/2" centers
- (2) 3-spindle fixed centered boring head with 3/4" centers

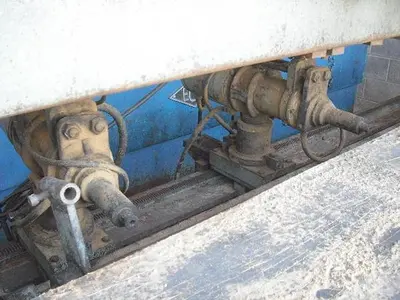

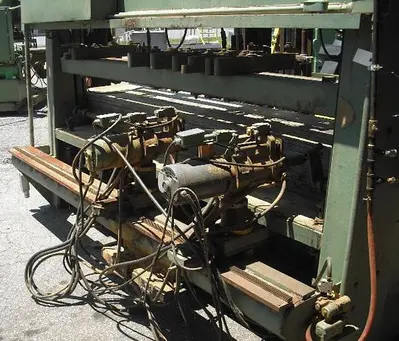

- (2) 2 HP horizontal single spindle rotating boring units with 6" stroke
- Horizontal units adjustable by rack/pinion
- Electro-pneumatic moving backstop for work-piece positioning
- (3) adjustable spring loaded work-piece holddown units
- 0 to 30 strokes per minute single cycle or automatic mode
- 6" adjustable stroke via 2 HP self-contained hydraulic pump system
- Foot pedal cycle actuation/control
- 132" x 36" x 98" approx. overall dimensions
- Weighs aprox. 5,000 lbs.
