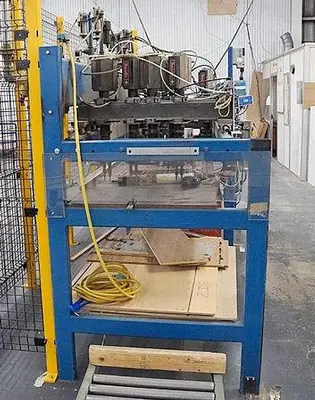

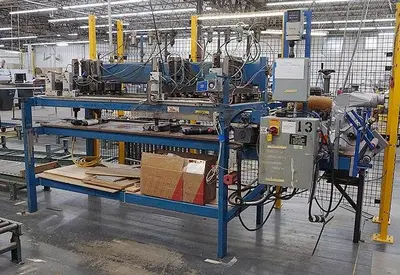

USED CUSTOM-BUILT DESOUTTER MULTIPLE-SPINDLE VERTICAL DRILLING AND GROOVING MACHINE

CUSTOM-BUILT DESOUTTER DRILLING & GROOVING MACHINE
S/N:N/A,  (460/60/3 electrics),  S-4909

General Specifications:
- 35” x 96” x 1/2” max. workpiece capacity, (set-up for 3/8” thick material)
- Heavy-duty welded steel machine frame stand
- Set-up to bore panel and feed workpiece through the grooving/dado stations
- 88” max. left-to-right x 24” max. front-to-back max. drill units working area
- Rear adjustable workpiece fence
- 41-1/2” workpiece pass-line height

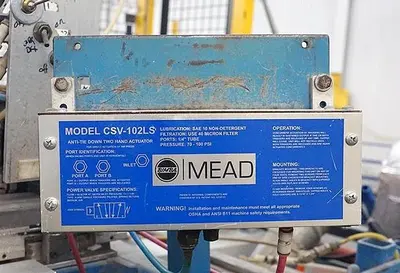

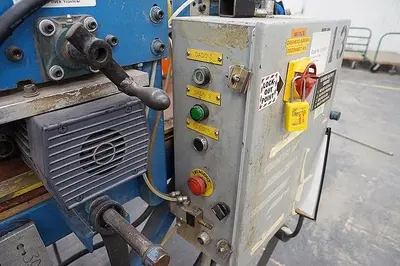

- Operator electric control panel with station anti-tie down 2-hand cycle actuation

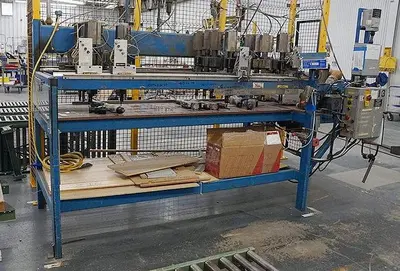

Drilling Stations, (16 adjustable drill unit stations):

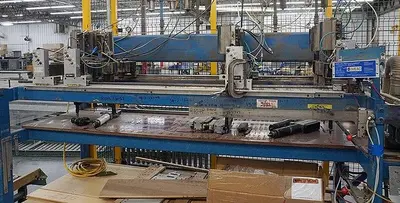

- (4) left-to-right adj. drilling beams w/(4) front-to-back adj. drilling head stations
- Drilling beams adjustable by tubular linear guide rails for smooth and easy adjustments

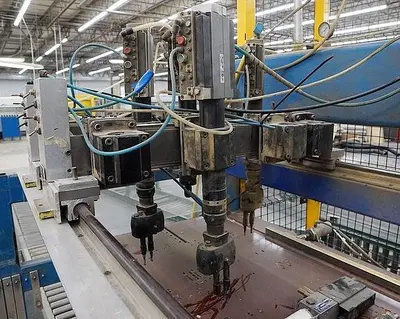

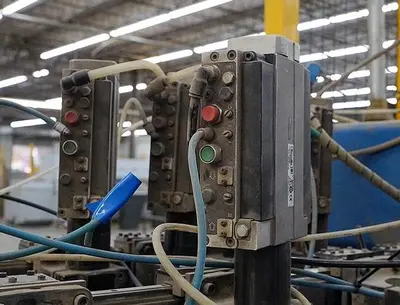

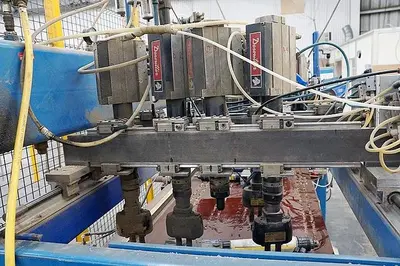

- Desoutter pneumatic drilling units with double-spindle adjustable center boring heads
- Individually adjustable pneumatic feed rate
- (1” to 3”) adjustable boring head centers

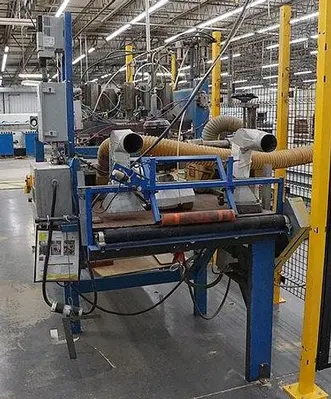

Grooving/Dado Stations:
- (2) 3 HP, 220/440/60/3 grooving/dado stations, (adjustable from front to back)

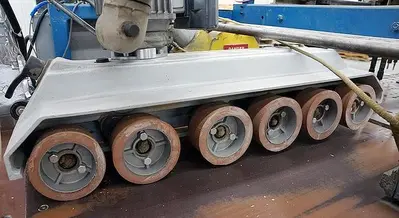

- With (1) adj. center mounted Steff Maggi 2068, 6-roll power feeder to feed workpiece
      S/N:1121800056, (2018),  (460/60/3 electrics)

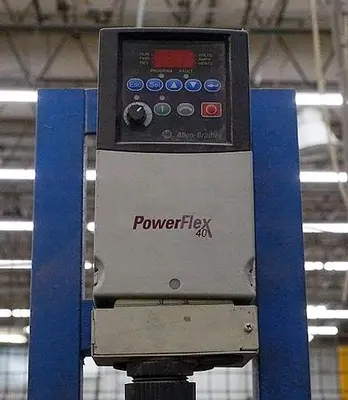

- Adjustable speed powered outfeed roller w/top outfeed pinch roller, (Powerflex VFD drive)

Manufacturer: CUSTOM-BUILT DESOUTTER
Model: MULTIPLE-SPINDLE VERTICAL DRILLING AND GROOVING MACHINE
Condition: Used
Stock Number: S-4909
