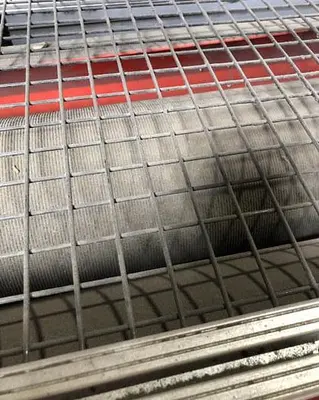

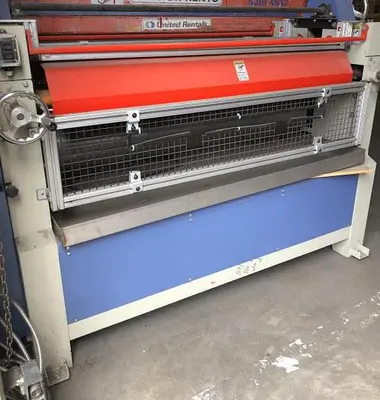

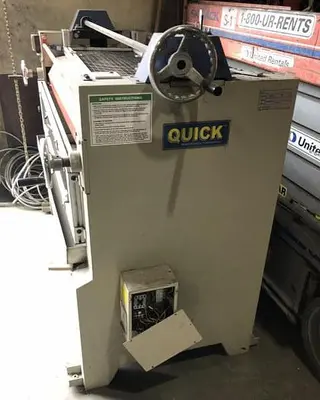

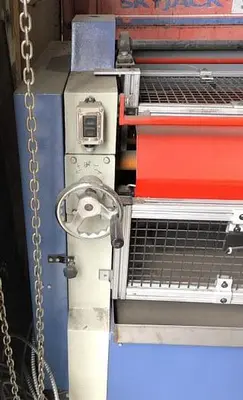

USED QUICK R-RCGS-1-48, 48" SINGLE TOP ROLL-COATER / GLUE-SPREADER

QUICK R-RCGS-1-48, 48" SINGLE TOP ROLL-COATER / GLUE-SPREADER
(230/460/60/3 electrics), H-1777

General Specifications:
- 1-sided roller coater (applies glue to 1 side of each panel)
- 0 to 45mm (0 to 1.77") working thickness, adjustable via hand wheel
- 1220mm (48") maximum material width
- SBR rubber, 60 durometer (Shore A) application rolls material
- 210mm (8.27") application rolls diameter:
- 20 grooves per inch application rolls grooving
- NBR rubber, 98 durometer (Shore A) doctor rolls material
- 175mm (6.9") doctor rolls diameter
- Doctor rolls grooving: none (smooth rolls)
- 1.5kw (2hp) drive motor
- 64fpm feed rate (optional: adjustable from 40 to 118fpm)
- Includes emergency stop bars at front and back of machine
- Includes stainless steel waste glue drip pan
- The roller has been regrooved to 10 grooves per inch

Manufacturer: QUICK
Model: R-RCGS-1-48, 48" SINGLE TOP ROLL-COATER / GLUE-SPREADER
Condition: Used
Stock Number: H-1777
