WEINIG GRECON-DIMTER / RAIMANN KR/US 3-BV, 18" SELECT-A-RIP GANG RIPSAW SYSTEM
Overview
Description
WEINIG GRECON-DIMTER / RAIMANN KR/US 3-BV, 18" SELECT-A-RIP GANG RIPSAW SYSTEM
CS-1141-SF
General Specifications:

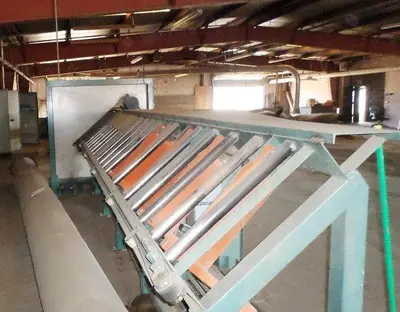

- Infeed scanner system with inclined conveyor, (combination belt and roller conveyor)
- Section of power roller conveyor with fixed alignment/guide fence

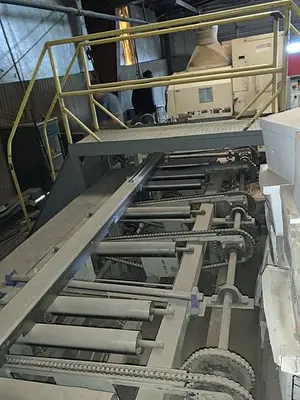

- Moving infeed fence conveyor with lateral “crowding” chains & rollers & lateral reject discharge

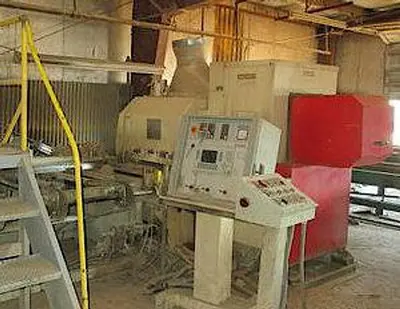

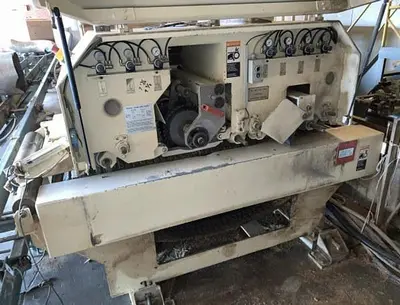

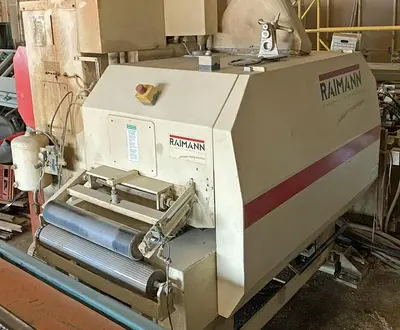

- Raimann KR/US, 18", 50 HP high performance edging saw with Siemens "onboard" controls

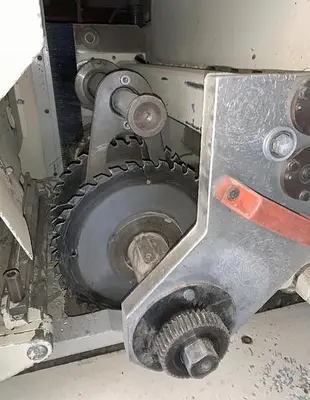

(1) fixed saw bushing & (3) movable heads with spike every 3rd chain link

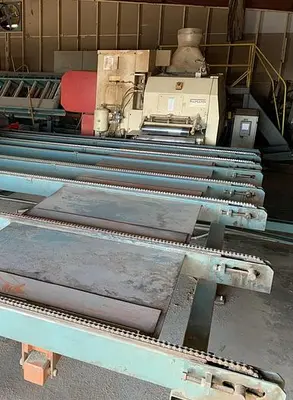

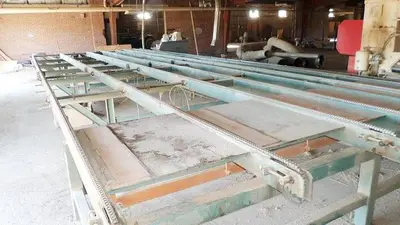

- 35’ long x 13' wide, 6-chain lateral outfeed chain deck, (receives up to 16’ long boards)
Includes pneumatic board stop
- 24,0000 board feet per 8 hour shift
- 90' x 35' "L-shaped" layout with 36" working pass-line height
Specifications
Condition: Used
Stock Number: CS-1141-SF
Quantity: 1.0

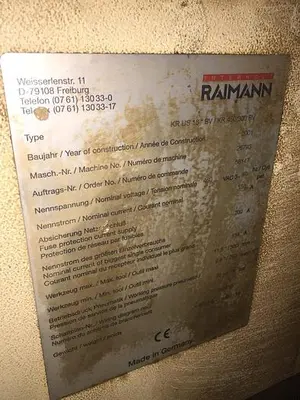

S/n: 26793 (2001), (460/60/3 electrics), CS-1141-SF
