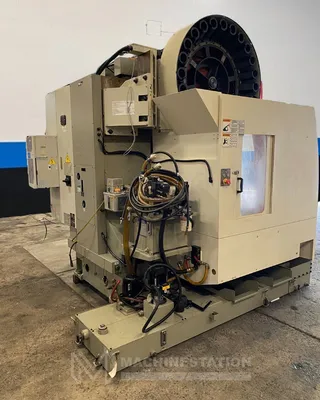

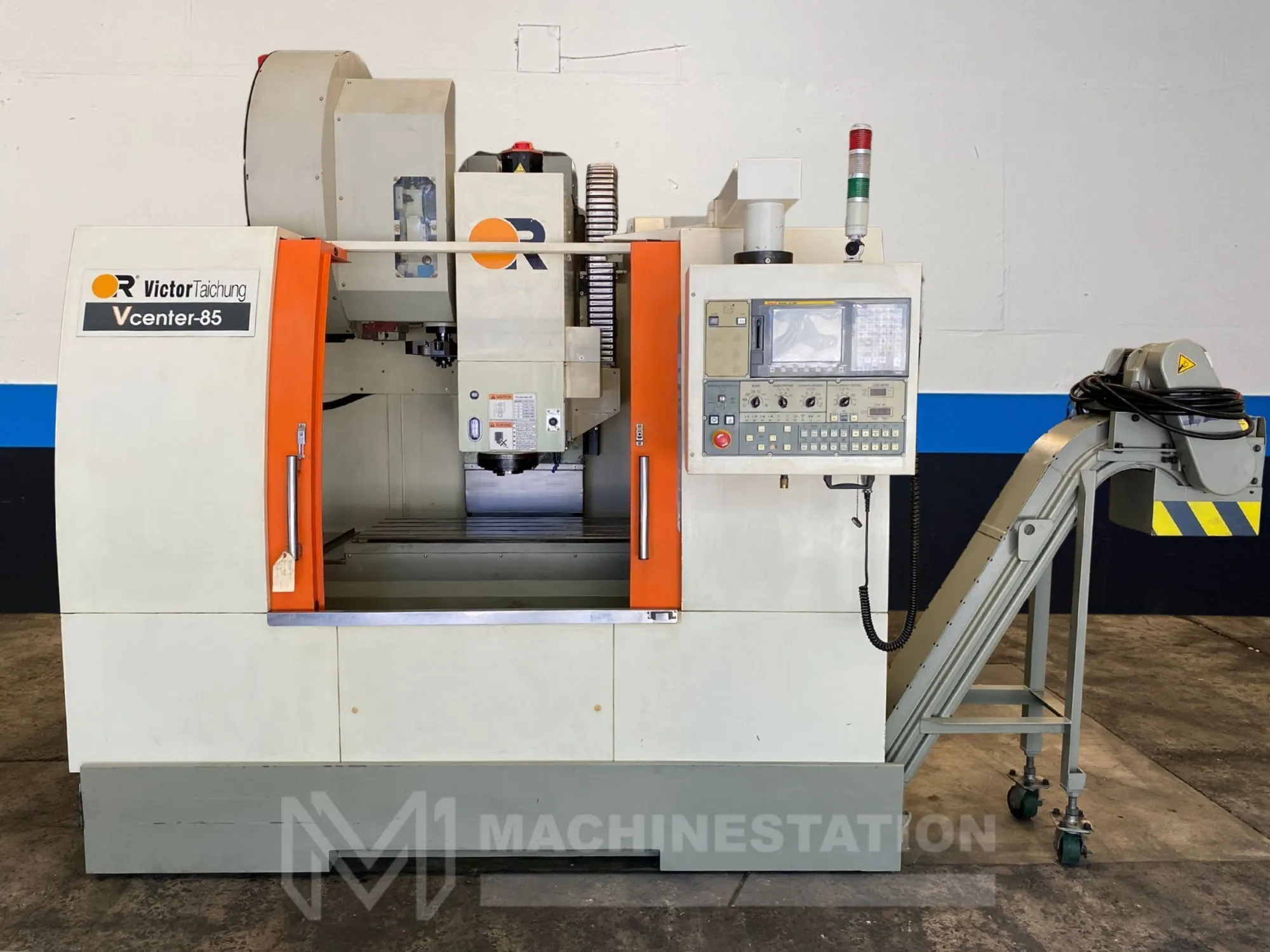

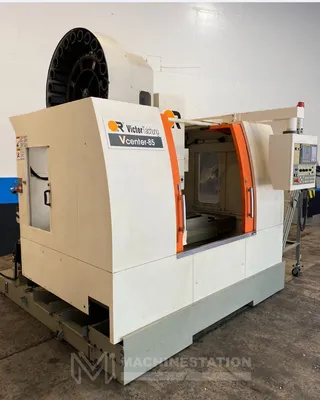

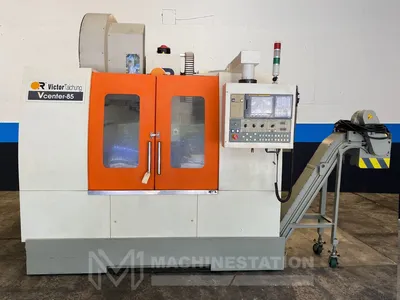

USED 2016 VICTOR TAICHUNG VCENTER- 85
Overview
Specifications
| X Axis | 33.46" | 849.88 mm |
|---|---|---|
| Y Axis | 20.47" | 519.94 mm |
| Z Axis | 22.05" | 560.07 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 20.07" | 509.78 mm |
| Table-L | 43.3" | 1,099.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MF CNC Control) | CNC (Fanuc Oi-MF CNC Control) |
| Dimensions | 96" x 94" x 110" High | 96" x 94" x 110" High |
| Weight | 14330 lbs | 14330 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

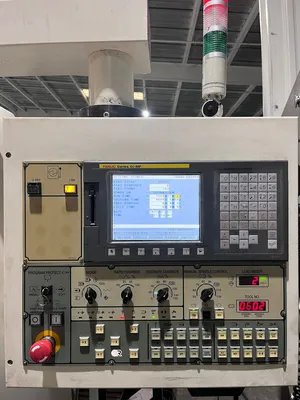

Fanuc Oi-MF CNC Control
6,669 Hours Cutting Time
Box Way Construction
6,000 RPM Spindle
24 Station Automatic tool changer
PCMCIA Card Slot & RS-232 Port

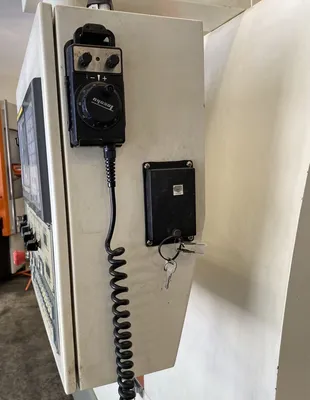

MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Telescopic way covers
Travel:
X-Axis: 33.46″
Y-Axis: 20.47″
Z-Axis: 22.05″
Rapid Traverse Rates X, Y Axis: 787 Inch Per Minute
Rapid Traverse Rates Z Axis: 787 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.90″ – 27.95″

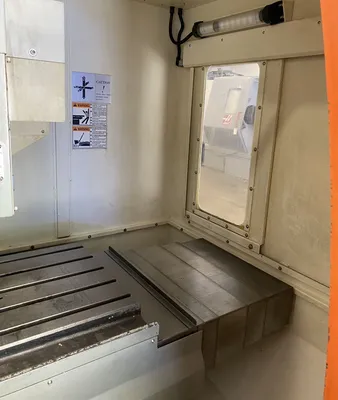

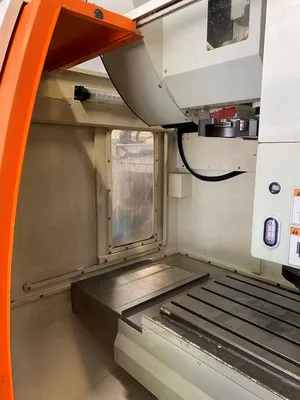

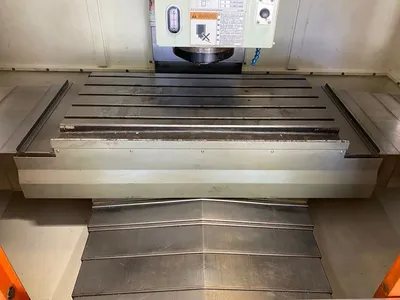

Table:
Length: 43.30″
Width: 20.07″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2204 lbs
Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Type: Gear Head
Spindle Power: 15 HP

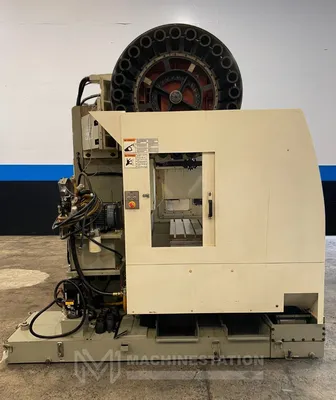

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″
Max Tool Length: 11.8″
Tool Changing Time: 1.3 Seconds

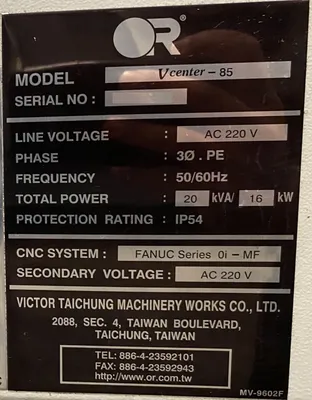

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 23KVA / 3-Phase
Overall Dimensions: 96″ x 94″ x 110″ High
Weight: 14330 lbs
Equipped With
50 Taper Spindle

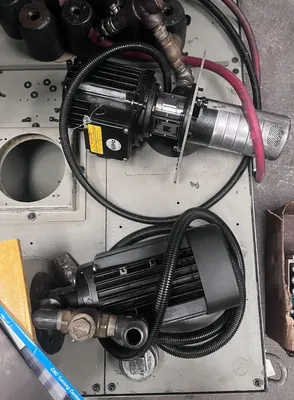

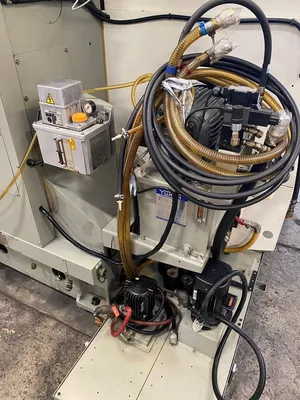

Spindle Chiller Unit
Flood Coolant system

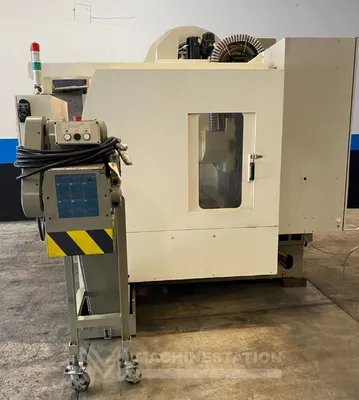

Chip Conveyor
