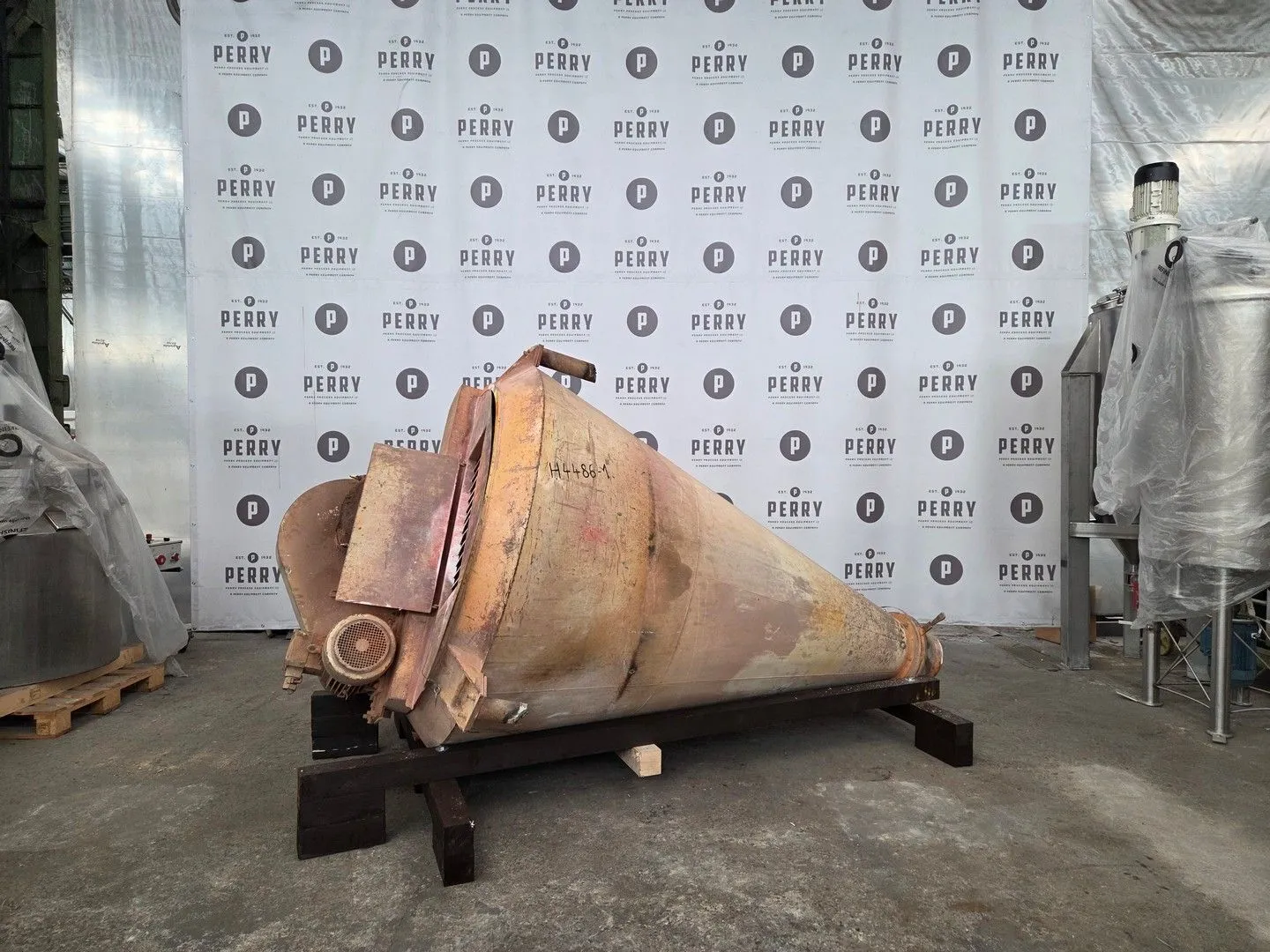

USED PHARMING HV 1500

Used Pharming model HV1500 Nauta type Conical Mixer Blender:

- Working volume: 1500 litre
- Working pressure: Atmospheric.
- Product contact parts: Stainless steel 1.4301, vessel, screw, discharge valve, cover. Arm - painted cast iron.
- Cone has dimensions (approx.): 1753 mm diameter x 2500 mm cone height / 3425 mm total height (bottom edge of discharge valve - drive).
- Top flat covers: 1x bolted cover with round inlet , 1x bolted cover with flanges DN200 and DN100.
- Supported screw agitator: driven by 4.5 kW electric motor, final rpms of screws 60 rpm.
- Arm: same drive as a screw through planetary gearbox - belt driven by el. motor.
- Includes: slide discharge valve with discharge hopper.
- Mounted: (3) lugs.

Machine could be fully rebuilt for additional costs. See attached picture of previously rebuilt similar unit.
