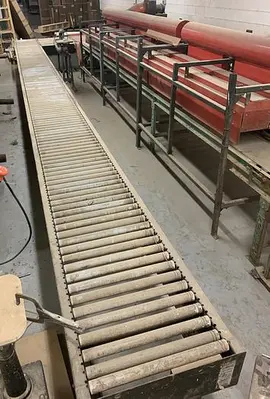

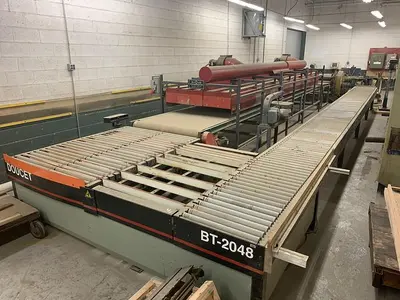

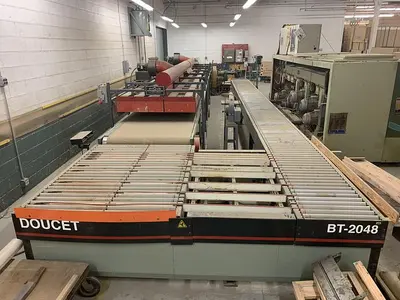

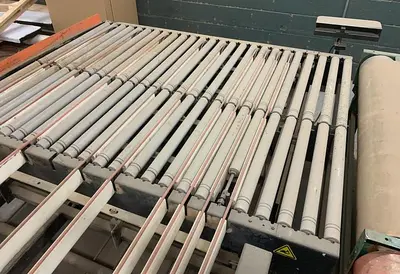

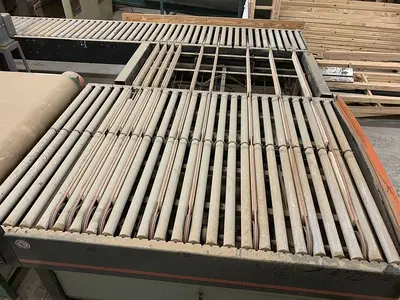

DOUCET BT-2048 RETURN CONVEYOR
(460/60/3 electrics), S-4980
Standard Specifications, (feed speeds need to be verified):
- Set up for left-side of machine return back to the operator
- 57" wide x 76" long "outfeed" receiving conveyor
- 38" wide x 68" long center section between receiving & sending conveyors

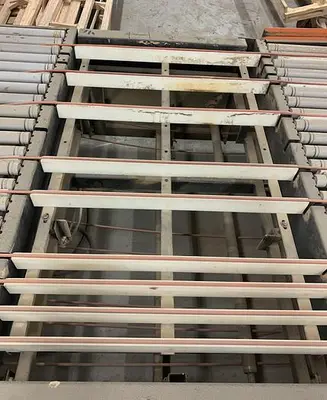

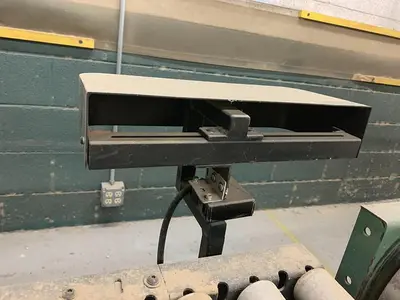

- (9) lateral rubber transfer belts, (automatically activated via photo eye)
- 24" wide x 36' long return x 30" tall return conveyor
- 2-1/2" diameter powered PVC rollers on 3" centers
- (30 to 90 ft/min) receiving conveyor table
- (60 to 180 ft/min) operator return conveyor
- 18 ft/min. belt transfer speed
- ~123" wide x 76" long receiving/transfer/sending section
- Estimated weight approximately 6,000 lbs.
Manufacturer: DOUCET
Model: BT-2048 RETURN CONVEYOR
Condition: Used
Stock Number: S-4980
