USED RYE R-52 SINGLE-HEAD AUTOMATIC ROTARY SHAPER

RYE R-52 SINGLE-HEAD AUTOMATIC ROTARY SHAPER
S/N:N/A, (230/460/60/3 electrics), H-1871

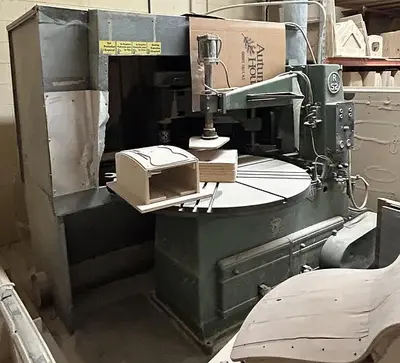

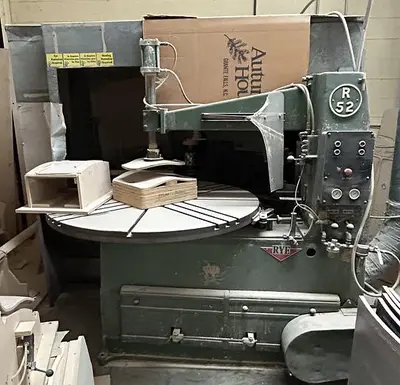

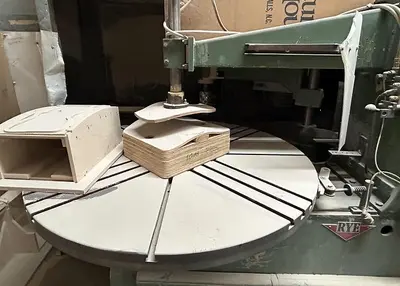

Single-head shaping machine, heavy cast rotating steel table with multiple "T" slot for securing hold-downs and forms; table rotates through gear reduction unit with variable speed adjustable slow-down slugs to slow down table for heavy cuts or difficult contours.

Center 10" clamp post, timed with table rotation,

20 HP, 230/460/60/3, 8,600 RPM direct drive shaper motor, adjustable vertically, head beam air operated with adjustment for cushioned movement.

The adjustable template follower is located directly under the cuttterhead;
Both vertical and horizontal adjustment of follower is provided.

Standard technical Specifications:(need to verify)
- 20 HP, 230/460/60/3 spindle motor
- 4" spindle length capacity
- 1-1/4" spindle diameter
- 9,000 RPM spindle speed
- 4" follower diameter, (typical)
- 1.5 HP table rotation motor size
- 20 to 60 sec/rev table revolution speed
- 52" diamter table
- 60" max. cutting circle
- 16" min. cutting circle
- 42" max. cutting square
- 60" x 92" x 72" approx. overall dimensions
- Weighs approx. 4,000 lbs.

Manufacturer: RYE
Model: R-52 SINGLE-HEAD AUTOMATIC ROTARY SHAPER
Condition: Used
Stock Number: H-1871
