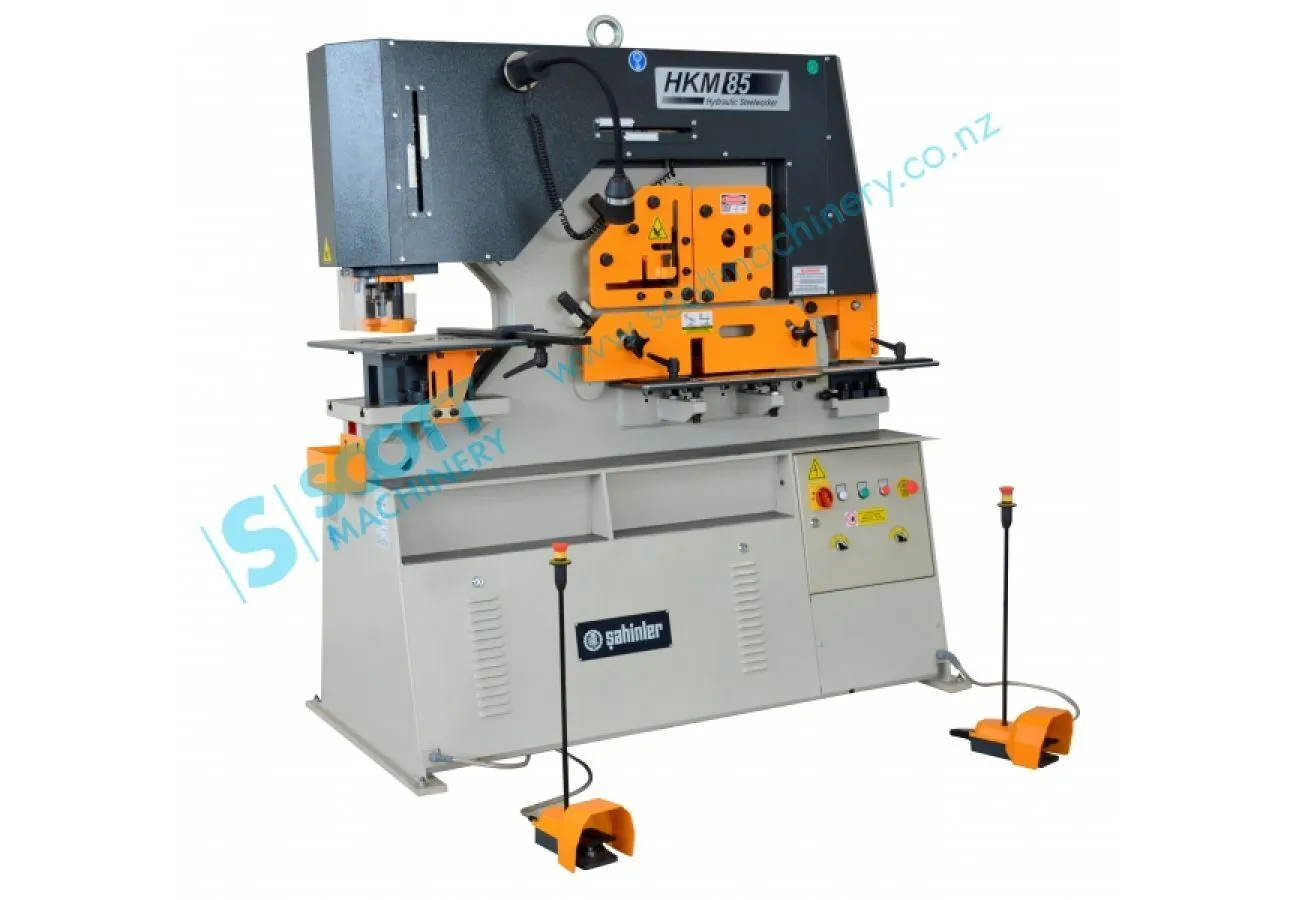

NEW SAHINLER HKM 85

2026 SAHINLER Ironworker Model HKM-85, Hyd Punch & Shearing Dual Operator
Sahinler Metal Makina is a globally trusted leader in sheet metal working machinery, evolving from a family run textile equipment business in 1953 into a specialist manufacturer of bending, flanging, cutting, and pressing equipment. With cutting-edge CNC-EVO technology and a comprehensive product range, from plate rollers to ironworkers, Sahinler delivers high-quality, reliable machinery backed by decades of expertise and international certification

The Sahinler HKM 85 is a powerful and versatile hydraulic ironworker, expertly engineered for precision cutting, punching, notching, and shearing of various profile types. It offers robust performance with an impressive 85-ton pressing force, making it an essential asset for heavy-duty metal fabrication workshops
Features
Made in Europe
Heavy duty machine construction from high quality steel
Dual cylinder design with adjustable stops
Universal die bolster
Heavy duty support tables with guides
Central lubrication pump
Accepts Scotchman XL type punch & dies
Easy change punch system
Dual operation via 2 electric remote foot pedals

Specifications
Sahinler HKM-85
Punching
Rated capacity 85 Ton
Punching example 31mm dia. through 20mm steel
Throat depth 355mm 13.98"
Stroke length 80mm 3.15"
Shearing
Round bar 50mm 1.97"
Square bar 50mm 1.97
Flat bar shearing examples
380 x 20mm or 480 x 15mm 14.96" x 0.79" or 18.9" x 0.59"
Blade length 480mm 18.9"
Angle Iron Shear
at 90 deg 150 x 150 x 15mm 5.91" x 5.91" x 0.59"
at 45 deg 80 x 80 x 8mm 3.15" x 3.15" x 0.315"
Notching
Rectangular notching (WxD)
52 x 100 x 13mm 2.05" x 3.94" x 0.51"
Machine technical specifications
Motor power 7.5 kW / 10 HP
Motor normal configuration is 400V-3phase-50HZ.
It can be made for 480V 60 HZ or requires a transformer.
Weight 2315kg 5,093 lbs
Floor space (LxWxH)
950 x 1920 x 2040mm 37.4" x 75.6" x 80.3"

Standard accessories:
XL style 22mm punch & die
New model has excellent LED light bars over each working station.
Back gauge with electric switch

Optional:
Press brake attachment
Round punch & die sets 5-31mm available ex stock
Various shapes and sizes of punch & dies available upon request
