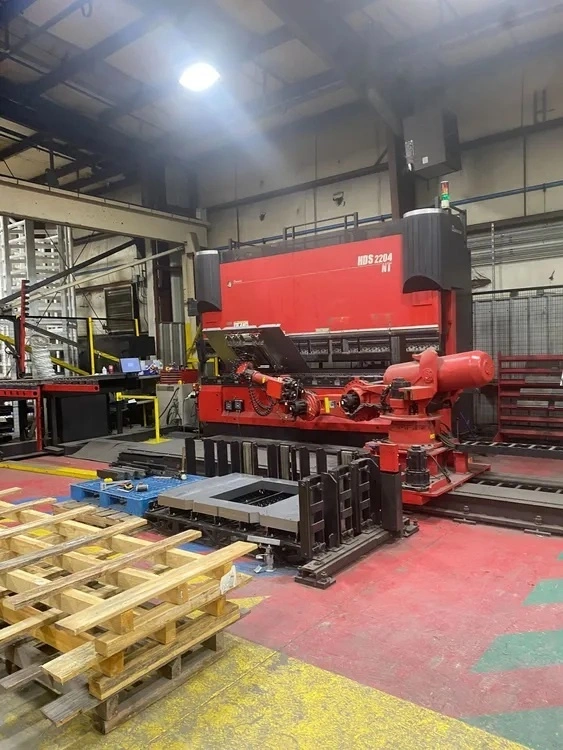

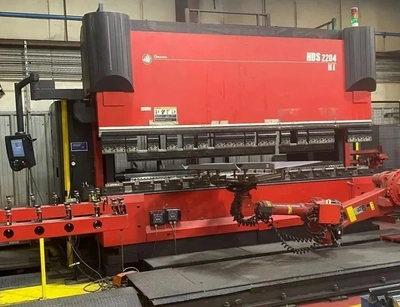

AMADA 8-axis Hydraulic Press Brake with Robotic Loader & Bending System, in very good working condition, video, POA

HDS2204NTW, capacity 240 t / 4270 mm (14'), ASTRO 165W NT Robotic Bending System
Capacity 240 t
Overall length of bed 4270 mm (14')
Distance between housings 3760 mm (148")
Stroke 250 mm (9.84")
Open height 660 mm (26")
Approach speed 0.2 m/s (7.87 IPS)
Bending speed 0.02 m/s (0.78 IPS)
Power requirement 99 A / 200 V
Hydraulic oil capacity 126 l (33.4 Gallons)
Floor space 5700×3200 mm (224.8"×126.57")

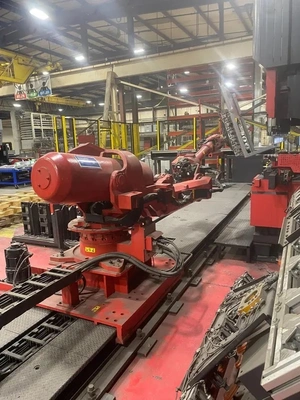

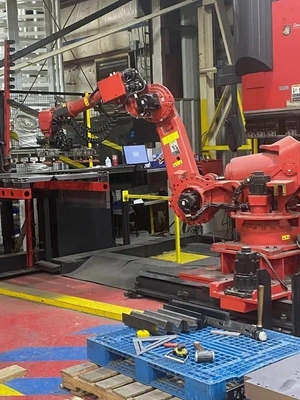

ASTRO 165W NT Robotic Bending System (at additional cost of $39500 )
ASTRO 165W NT Structure (A-axis travel)
Vertical 6-axis multi-joint type + traveling axis 4800 mm (15.75'), 6100 mm (20')
Lifting capacity, including hands 165 kg (364 lbs)
Part size:
- max 1500×3000 mm (59˝×118˝)
- min 150×150 mm (5.9˝×5.9˝)
Thickness 0.6 mm (0.024˝) / 6 mm (0.236˝) with special hands
Power requirement 6 KVA
Positioning accuracy:
- structure ±0.07 mm (±0.0027˝)
- robot ±0.2 mm (0.0078˝) (axis)
Robot weight 1540 kg (3,400 lbs)
Control: CNC, AMADA AMNC
Year: 2012
Location : USA
