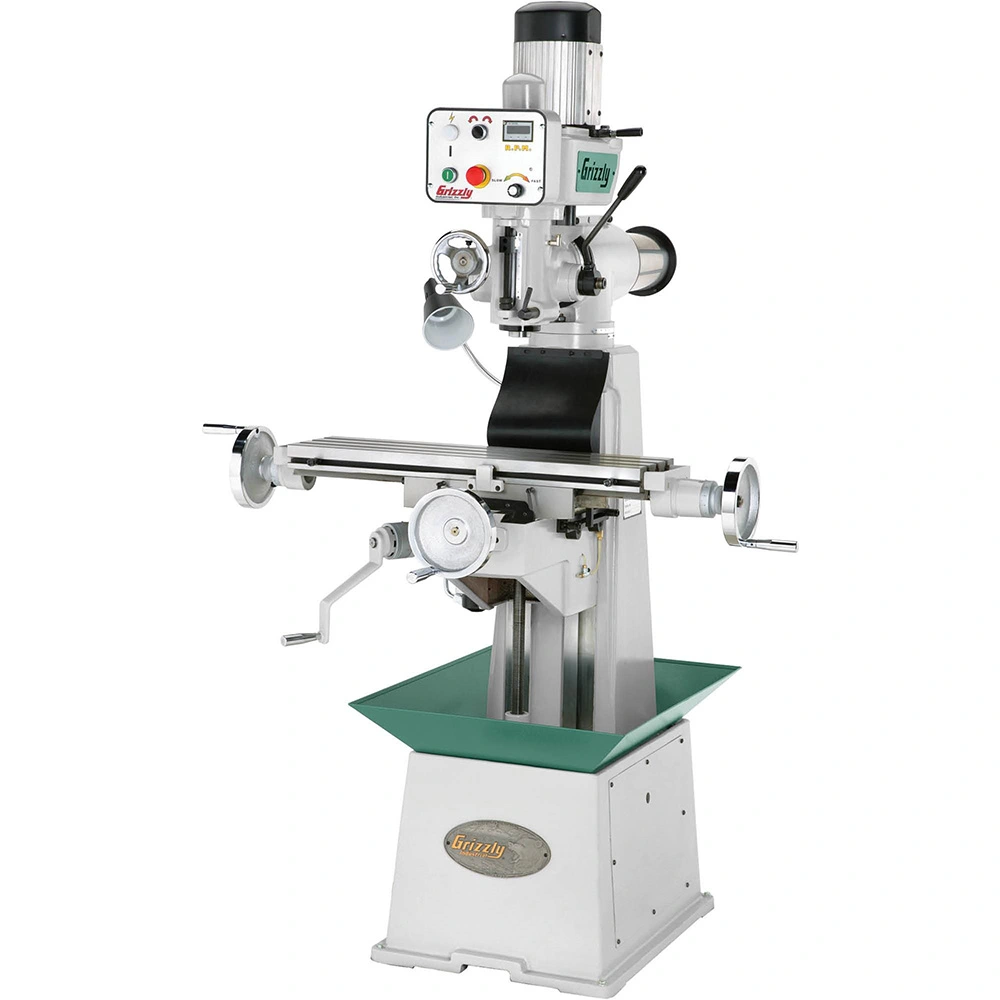

8″ x 30″ New Grizzly Vertical Knee Mill Model G0695

G0695 8″ x 30″ 1-1/2 HP Variable-Speed Knee Mill with Ram Head

This knee mill will be a fine addition to any home shop, school, or job shop!

The G0695 8″ x 30″ 1-1/2 HP Variable-Speed Knee Mill with Ram Head runs on single-phase power using an inverter.
Now you can have speeds from 200 to 2250 RPM with just the turn of a dial.

The head slides in and out, swivels, and tilts 45° left-to-right, enabling extremely versatile operations.

Features hardened and precision-ground leadscrews, dovetail ways, turret-style column, and fine downfeed on quill.
Required power source: 220V, single-phase, min. 15A circuit
Motor: 1-1/2 HP, 220V
Spindle taper: R-8
Spindle travel: 3-1/2″
Spindle speed: Variable, 220–2250 RPM
Max distance spindle-to-table: 20″
T-Slots: 3 @ 1/2″ wide, 2-3/16″ centers
Table size: 8″ x 30″
Longitudinal table travel (X-axis): 18″
Cross table travel (Y-axis): 7-1/2″
Vertical table travel (Z-axis): 17-3/4″
Head tilt: 45° left/right
Ram travel: 18″
Drilling capacity: 3/4″ mild steel
Overall size: 42-3/4″ W x 40-1/2″ D x 79″ H
Approximate shipping weight: 1006 lbs.
Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
Convenient one-shot lubrication system
High-precision ball bearings
Bronze nut on longitudinal and cross feed leadscrews
Variable-speed frequency drive allows speeds from 200 to 2250 RPM
Hardened and precision-ground leadscrews
Runs on single-phase power using an inverter
Cast-iron construction throughout machine
Digital Readout System (View Brochure)
Table (X Axis) Power Feed
Saddle (Y Axis) Power Feed
Knee (Z Axis) Power Feed
Air Power Drawbar
Flood Coolant System
Chip Tray
Right Angle Milling Attachment w/Arbor Support
Rustlick Coolant (1 Gal, Mixes 1:30)
Riser Blocks (4″/6″/ 8″)
Angle-lock Vises (6″/8″)
Rotary Table
Clamping Kit (52 pc)
R-8 Collet Set
Single Phase Motor Option
NMTB-30 Spindle
