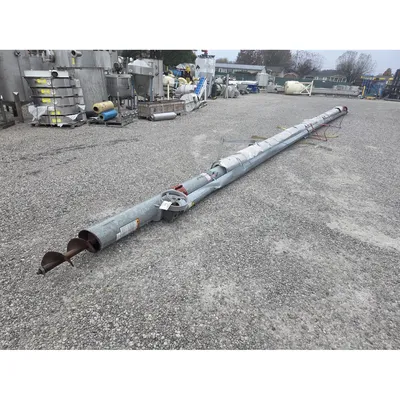

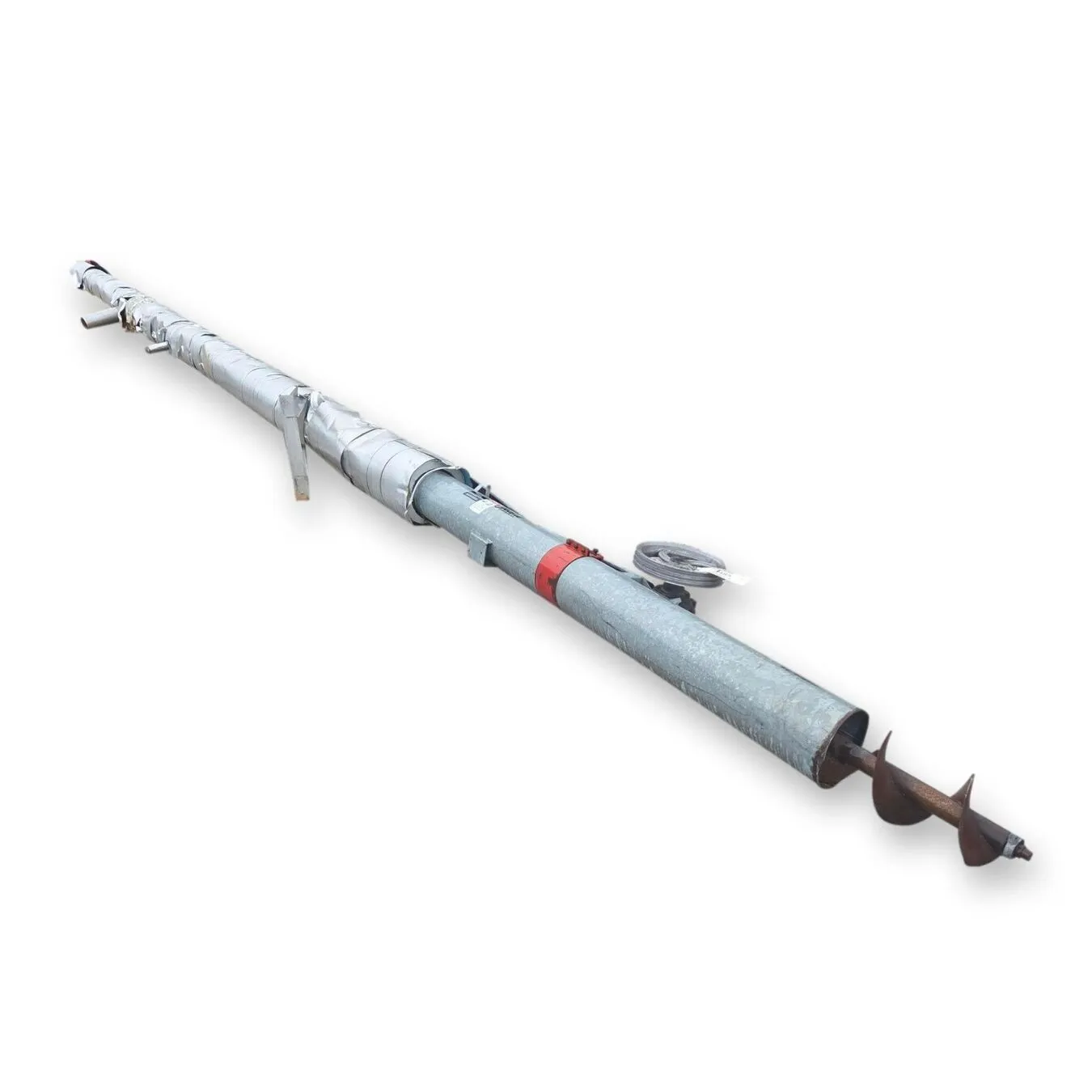

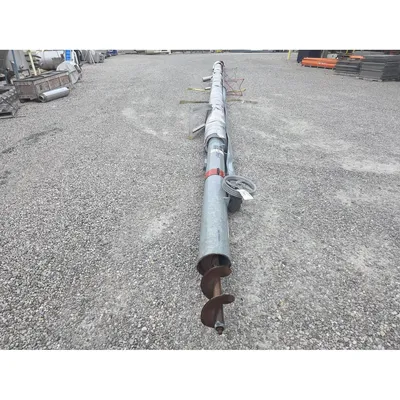

Used 9" Diameter X 53' Long 20HP Tubular Inclined Screw Auger Conveyor

9" DIAMETER X 53' LONG, 20 HP TUBULAR INCLINED SCREW CONVEYOR AUGER. MANUFACTURED BY FERTEL CORP.

CARBON STEEL SCREW.
GALVANIZED OUTER TUBE
20 HP MOTOR WITH JACKSHAFT DRIVE ASSEMBLY. MOTOR NEAR FEED END.
MOTOR IS 20 HP, 230/460/3/60, 1755 RPM.
COMPLETE WITH STAINLESS STEEL INLET HOPPER TRANSITION.
INTERMEDIATE DISCHARE AT 16 FEET BACK FROM MAIN DISCHARGE.
UNIT HAS EXTERNAL CABLE SUSPENSION SUPPORT PACKAGE.

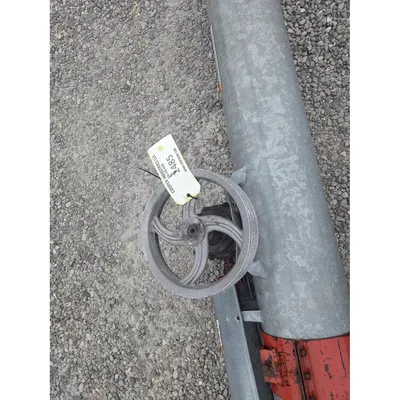

MOTOR HAS THE 3 V-BELT DRIVE PULLEY SYSTEM
UNIT HAS INSULATION PACKAGE ON THE OUTSIDE OF THE TUBE AND IT IS COVERED WITH ALUMINUM WATERPROOFING. SOME DAMAGE ON INSULATION COVER.

FOB: Millwood, WV 25262

Item: 21409
 MFG: Fertel Corp.
 Screw Dia. (inches): 9
  Length (feet): 53'
