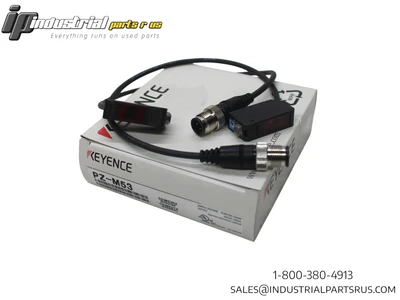

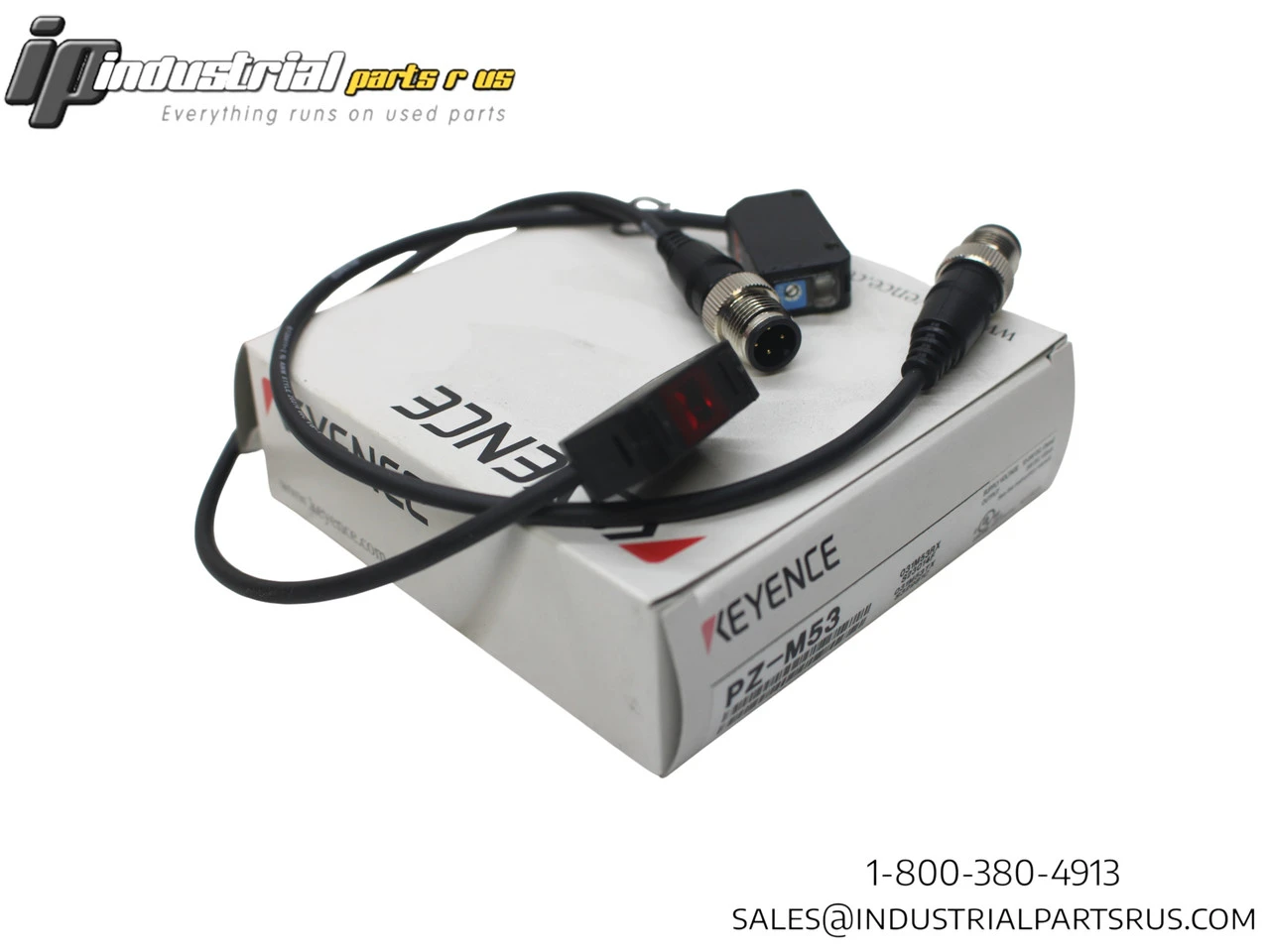

NEW KEYENCE PZ-M53

This listing includes the COMPLETE SET with both emitter and receiver units.
The Keyence PZ-M53 is a high-performance through beam photoelectric sensor designed for industrial automation applications. This sensor features NPN open collector output, M12 connector for secure connections, and a robust IP67-rated housing that withstands harsh industrial environments. The sensor provides reliable detection over distances up to 10 meters with excellent resistance to ambient light interference.
Specification
Value
Brand
Keyence
Model/Part Number
PZ-M53
Product Type
Photoelectric Sensor
Sensor Technology
Through Beam
Output Type
NPN Open Collector
Current Type
DC
Connection Type
M12 Connector
Mounting Type
Panel Mount
Power Supply Voltage
12-24 VDC ±10%
Detection Distance
10m (394 inch)
Response Time
1.5 ms max
Output Current
100 mA max
Operating Temperature
-20 to +55°C (-4 to 131°F)
Power Consumption
Transmitter: 24 mA max, Receiver: 27 mA max
Housing Material
Resin
Protection Rating
IP67
Beam Type
Visible Red LED
Mode
Light/Dark Programmable
Series
PZ-V/M
Weight
Approximately 30g
We warranty all items for 30 days from date of purchase.

SKU: AI0208
UPC: 679523686222
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
Operating Distance: 10m
Response Time: 1.5 ms max
Series: PZ-V/M
GTIN: 679523686222
Output Type: NPN
Sensor Type: Through Beam
Manufacturer: Keyence
Part Number: 031M53TXS32981C / 031M53RXS23014F
Shelf: K-44
Model: PZ-M53
MPN: 031M53TXS32981C / 031M53RXS23014F
Type: Photoelectric Sensor
